Owners &
Freestanding Woodstoves
Installation Manual

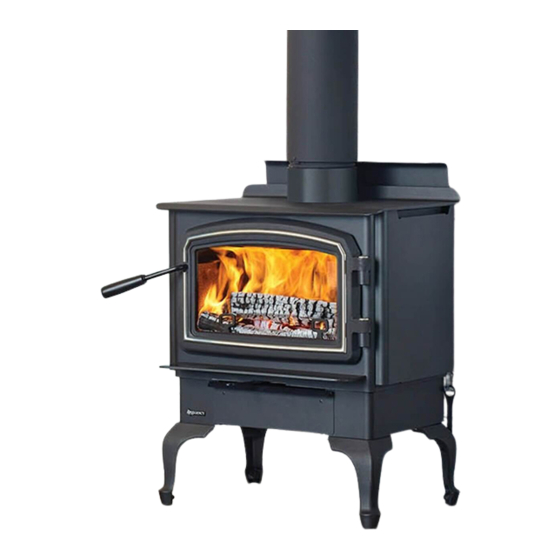

Medium Freestanding Woodstove
with optional Gold Legs.
Medium Freestanding Step Stove
with Pedestal Base.
MODELS:
F1100S
F2100M
F3100L
S2100M
S3100L
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
908-288
FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
01/13/03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Regency F1100S
Summary of Contents for Regency F1100S
- Page 1 Freestanding Woodstoves Installation Manual Medium Freestanding Woodstove with optional Gold Legs. Medium Freestanding Step Stove with Pedestal Base. MODELS: F1100S F2100M F3100L S2100M S3100L Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner.
- Page 2 The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.
-
Page 3: Table Of Contents
THE REGENCY FREESTANDING STOVE SAFETY LABEL Door Handle ..............17 Glass Installation .............. 17 Small Freestanding Stove F1100S ........4 Optional Accessories Medium Freestanding Stove F2100M ......... 5 - Pedestal Ash Drawer Kit .......... 17 Large Freestanding Stove F3100L ........6 - Bottom Shield Ashdrawer Kit ........ -
Page 4: Safety Label
Regency Small Freestanding Woodstove of the contents here for your review. improved. Check the label on the unit and if there (F1100S). It is located in the upper right corner is a difference, the label on the unit is the correct one. -
Page 5: Medium Freestanding Stove F2100M
DO NOT REMOVE THIS LABEL LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO SUITABLE FOR MOBILE HOME INSTALLATION MODEL: REGENCY MEDIUM FREESTANDING STOVE - F2100M TESTED TO: CSA B366.2 / ULC S627 / UL 1482 REPORT NO.6622 (FEB.1993) INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. -
Page 6: Large Freestanding Stove F3100L
SAFETY LABEL This is a copy of the label that accompanies of the back of the stove. We have printed a NOTE: Regency units are constantly being each Regency Large Freestanding Woodstove copy of the contents here for your review. -
Page 7: Medium Freestanding Step Stove S2100M
DO NOT REMOVE THIS LABEL LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO SUITABLE FOR MOBILE HOME INSTALLATION MODEL: REGENCY MEDIUM FREESTANDING STEP STOVE - S2100M TESTED TO: CSA B366.2 / ULC S627 / UL 1482 REPORT NO.6622 (FEB.1993) INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. -
Page 8: Large Freestanding Step Stove S3100L
This is a copy of the label that accompanies corner of the back of the stove. We have printed NOTE: Regency units are constantly being each Regency Large Freestanding Step Wood- a copy of the contents here for your review. -
Page 9: Installation
MODULAR INSTALLATION OPTIONS The following items are required when assembling your Regency Stove. F1100, F2100, and F3100 units - the Rear Heat Deflector is supplied with the stove, but if you choose not to use it you must use the Airmate instead. -
Page 10: Minimum Clearance To Combustibles
Measurements "From Unit" are from the top plate of the stove to a side wall or to a corner, and from the rear heat shield to a back wall. Residential Installation “C” Vent (Single Wall) Unit From Unit From Corner From Flue Center-line Small F1100S with Airmate 13" 11" 8" 25" 17.5"... -
Page 11: Minimum Alcove Clearances
INSTALLATION Minimum Alcove Clearance to Combustible Materials The Regency Freestanding models have been alcove approved and must be installed with a listed double wall connector to the ceiling level. Note: Minimum alcove ceiling height - 84" Maximum depth of alcove - 36"... -
Page 12: Stove Assembly Prior To Installation
Loosen the screws on the rear on the stove (3 per side), slide the side panel up as far as possible and then secure by tightening the screws. Diagram 1 4) Push the Regency logo into the two holes in the front bot- tom left corner of the pedestal cover plate. -
Page 13: Leg And Bottom Shield Assembly
6) Fasten the raincap with spark screens (if required) to the top of your chimney. 7) For optimum efficiency when installing into a masonry chimney, size accordingly, i.e. the 6" flue dia. is 28.28 sq.in. Horizontal Installation Regency Freestanding Woodstove... -
Page 14: Flue Height Table
2 ft. of horizontal run = 4 ft. one "T" = 3 ft. Total Addition (at sea level) = 9 ft. Recommended Flue Height Elevation Example a) Example b) 1000' 18.72' 21.84' 2000' 19.44' 22.68' 5000' 21.60' 25.20' 8000' 23.76' 27.72' Regency Freestanding Woodstove... -
Page 15: Listed Components For Mobile Home Installation
The baffle bricks are positioned ICC EXCEL 2100 first and then the air tubes are installed. Qty.Part # Description The Regency Small, Medium, Medium Step and 6CL48 48" Chimney length (also in 12", Large Freestanding pedestal units are ap- NOTE: If the first 2 airtubes are already 18", 24"... -
Page 16: Medium Stove F2100M/S2100
Front View Step 2), if not, follow the instructions be- low. Install the air tube into the holes in the Small Stoves F1100S Note: When getting the chimney cleaned, side channels. The notch goes on the right remove the baffle bricks for ac-... -
Page 17: Brick Installation
GLASS INSTALLATION Your Regency stove is supplied with 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the Freestanding - Small F1100... -
Page 18: Blower/Fan
Wiring errors can cause ing) plug for your protection against shock hazard and improper and dangerous operation. should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the ground- ing prong from this plug. Regency Freestanding Woodstove... -
Page 19: Operating Instructions
If you also long. have a fireplace in your home, a downdraft may be created by your Regency Stove 3) With the draft still in the fully open position causing a draft down your chimney. If this add two or three seasoned logs to your fire. -
Page 20: Ash Disposal
Check and clean chim- ney at regular intervals. Failure to do so can result in a serious chimney fire. 7) Your Regency stove can be very hot. You may be seriously burned if you touch the stove while it is operating, keep children,... -
Page 21: Creosote
MAINTENANCE GLASS MAINTENANCE CREOSOTE LATCH ADJUSTMENT Your Regency stove is supplied with 5 mm When wood is burned slowly, it produces tar The door latch may require adjustment as the Neoceram ceramic glass that will withstand and other organic vapours, which when com- door gasket material compresses after a few the highest heat that your unit will produce. -
Page 22: Parts List - F1100, F2100, F3100
16) 846-570 7/8" Door Gasket Repair Kit *Not available as a replacement part. 17) 846-918 Hinge Cap - Gold (2/set) 19) 948-101 Spring Handle - Large 20) 948-102 Spring Handle - Small 846-515 Complete Fan/Blower Assy (120 V) Regency Freestanding Woodstove... -
Page 23: Parts List - S2100, S3100
Nut - 1/4 - 20 Hex 16) 846-570 7/8" Door Gasket Repair Kit *Not available as a replacement part. 17) 846-918 Hinge Cap - Gold (2/set) 19) 948-101 Spring Handle - Large 20) 948-102 Spring Handle - Small Regency Freestanding Woodstove... -
Page 24: Parts List - Pedestal, Bottom Shield And Legs
063-955 Baffle (set) S3100 150-006 Side Panel - Right - S3100 150-005 Side Panel - Left - S3100 908-288 Manual 846-973 Door Handle Assembly 16) 846-570 7/8" Door Gasket Repair Kit *Not available as a replacement part. Regency Freestanding Woodstove... -
Page 25: Parts List - Firebrick
58) 942-110 Ash Plug 59) 820-249 Ash Plug Tool Handle 140) 850-126 Legs - Cast Black 850-127 Legs - Cast Gold 142) 850-125 Legs - Steel Black 948-216 Logo - Regency *Not available as a replacement part. Regency Freestanding Woodstove... - Page 26 Brick Partial: 1-1/4" x 1-1/4" x 9" 82) 802-155 Brick Partial: 1-1/4" x 3-1/8" x 4-1/2" 83) 802-138 Brick Partial: 1-1/4" x 3-3/8" x 9" 84) 802-107 Brick Partial: 1-1/4" x 4-1/2" x 8" 85) 802-156 Brick Partial: 1-1/4" x 4-1/4" x 8" Regency Freestanding Woodstove...
-
Page 27: Warranty
Conditions: Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at Regency's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested. - Page 28 Installer: Please complete the following information Dealer Name & Address: ______________________________________________ __________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: _________________________________________________________ Regency and Classic are trademarks of FPI Fireplace Products International Ltd. Printed in Canada © FPI Fireplace Products International Ltd. 2003...
