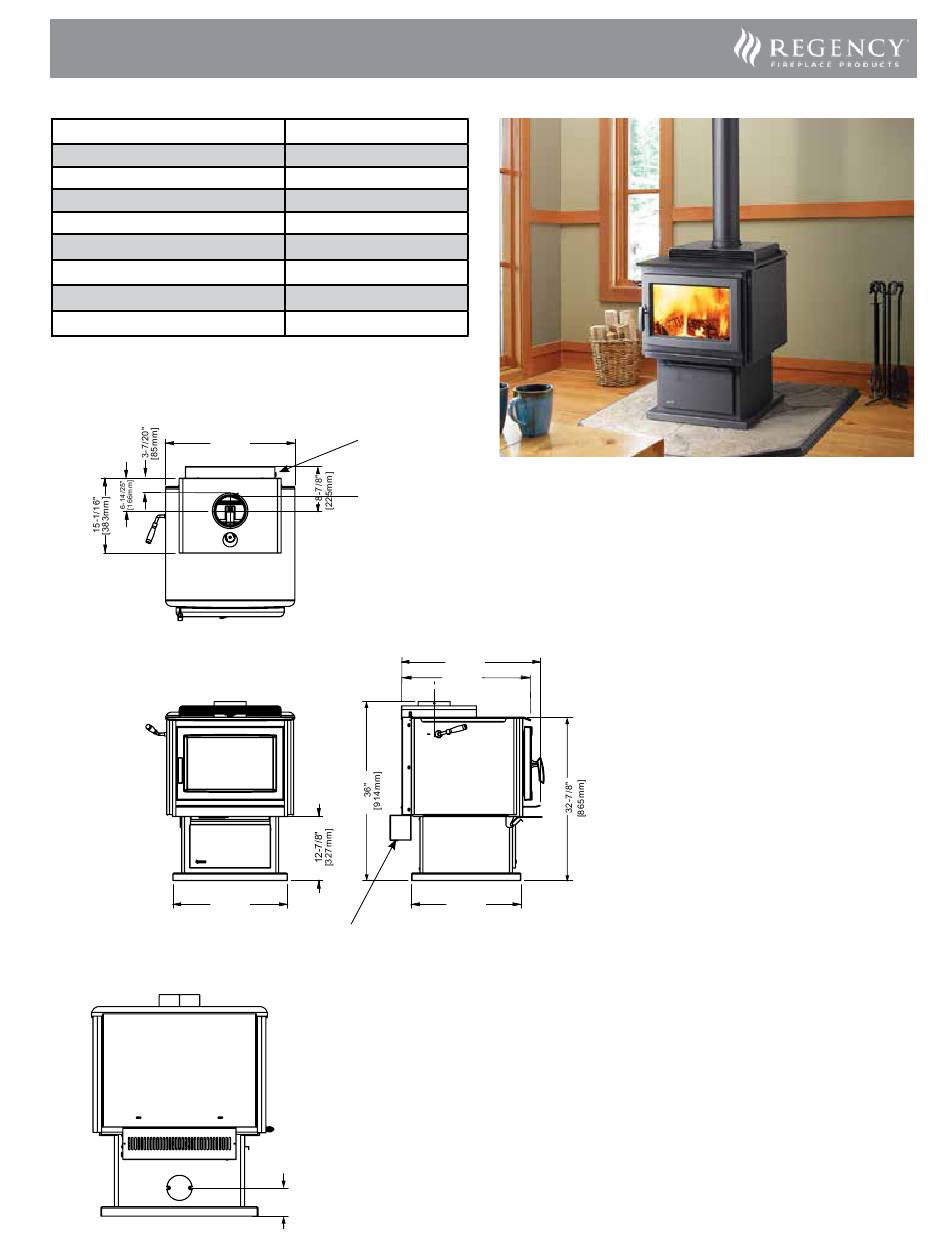

UNIT DIMENSIONS
26"
[660mm]
23"
[584mm]
WOOD STOVE OUTSIDE AIR DIMENSIONS
Rear

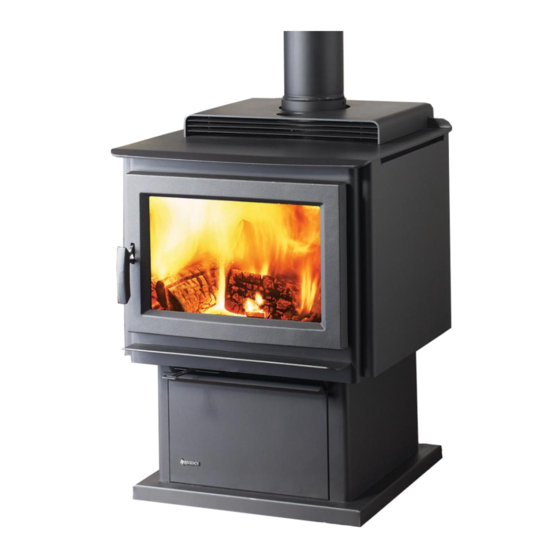

F3500 Wood Large Stove
F3500
75 000BTU's
0.9 gram/hr
81%
87%
6" (152mm)
Yes
20" (508mm)
3.0 cu.ft.
Shown with optional
fan
6" Flue Collar
Shown with optional fan
With pedestal from base of unit to centerline
5-1/2" (138mm)
27-17/18"
[710mm]
26"
[660mm]
22-3/4"
[578mm]
F3500 Wood Stove |
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F3500 and is the answer not in the manual?

Questions and answers

Related Manuals for Regency F3500

Summary of Contents for Regency F3500

  • Page 1 F3500 Wood Large Stove Model F3500 Cordwood BTU’s 75 000BTU’s Emissions (grams/hr) EPA Certified 0.9 gram/hr Efficiency (EPA HHV)* Efficiency (EPA LHV) Flue Size 6" (152mm) US Biomass Tax Rebate Eligible Maximum Log Size 20” (508mm) Firebox Size 3.0 cu.ft.

  • Page 2: Minimum Clearance To Combustible Materials

    521mm Minimum Alcove Clearance to Combustible Materials The Regency Freestanding models have been alcove approved and must be installed with a listed double wall connector to the ceiling level. Note: Minimum alcove ceiling height - 83" (2108 mm) Vertical Termination} H = Maximum depth of alcove - 48"...
  • Page 3 57-9/16" (1461mm) 25-3/4" (654mm) 33" (838mm) 63" (1600mm) 56-1/8" (1425mm) 24-5/16" (618mm) Residential Close Clearance (To be installed with required pipe components) Canada 33" (838mm) 65" (1651mm) 57-9/16" (1461mm) 25-3/4" (654mm) 33" (838mm) 63" (1600mm) 56-1/8" (1425mm) 24-5/16" (618mm) F3500 Wood Stove |...

  • Page 4: Mobile Home Installation

    11. WARNING: DO NOT INSTALL IN A SLEEPING ROOM OF A MOBILE HOME. 12. Use silicone to create an effective vapour barrier at the location where the chimney or other component penetrates to the exterior of the structure. | F3500 Wood Stove...

  • Page 5: Wall Exit Clearance Factory Built Chimney

    45º elbows be used instead of a 90º elbow to improve draft and performance. If not adhered to this, it will result in poor performance overfiring and or dangerous operating conditions which may void your warranty. F3500 Wood Stove |...

  • Page 6: Combustible Wall Chimney Connector Pass-Throughs

    Cover opening with and support chimney section on both sides with 24 gage minimum sheet metal supports. See that the supports are fastened securely to wall surfaces on all sides. Make sure fasteners used to secure chimney flue liner. | F3500 Wood Stove...
  • Page 7 5. Place the storm collar over the flashing, sealing the joints with a silicone caulking. 6. Fasten the raincap with spark screens (if required) to the top of your chimney. Horizontal Installation F3500 Wood Stove |...

  • Page 8: Recommended Heights For Woodstove Flue

    16.0 18.5 20.0 7000-8000 15.5 16.5 19.0 20.5 8000-9000 16.0 17.0 20.0 21.0 9000-10000 16.5 17.5 20.5 22.0 NOTE: No more than one offsets (two elbows) allowed. Two 45 elbows equal one 90 elbow. Table 1 | F3500 Wood Stove...
