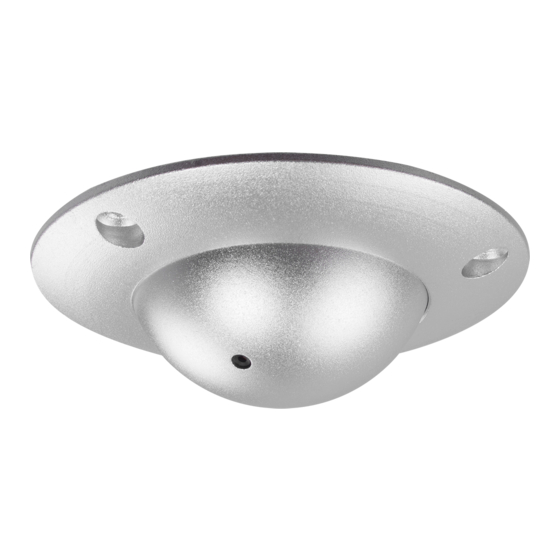

- Page 1 Hidden Camera Pro-AHD Series...
-
Page 2: Table Of Contents
Contents CAUTIONS Product Introduction Camera Introduction Product Features Menu Setup Product Installation General Notes Installation Tools and Information Installation Method Connections OSD Control Technical Specification... - Page 3 1 CAUTIONS 6. In order to make the camera work smoothly and obtain a satisfactory image, the power cord and video connection can not be too long. Otherwise, the 1. To avoid the risk of electric shock, do not open or increase of line loss will lead to inadequate operating maintain the machine by yourself, please consult a voltage of the camera or inadequate video signal.
-
Page 4: Camera Introduction
2 Product Introduction 3 Menu Setup 2.1 Camera Introduction Press "MENU" button to enter the main MENU, press "UP" and "DOWN" to select menu, press "LEFT" and PROVISION-ISR’s new cameras series has adopted "RIGHT" to choose or set the corresponding function. CMOS image sensor with high performance, which To enter submenu press "MENU"... -
Page 5: Installation Tools And Information
required accessories from the manufacturers. Issues 3. Mounting the camera caused by unauthorized repair are your responsibility. a. Dome Camera 4.2 Installation Tools and Information Adjust the lens position to aim at the monitoring points Prepare the required engineering data and instructions. and present a clear picture. -
Page 6: Connections
4.4 Connections Connection as show in the figure below 4.5 OSD Control For 1080P Cameras (AHD2.0), The preffered control method is CoC (Control over Coax). If your AHD DVR supports this function*, Use the DVR’s PTZ interface to call Preset 95 or press on “Iris+” to open the OSD menu. -
Page 8: Specifications
5 Specifications: PRO-AHD camera (720P) MC-382AHD37/ DL-382AHD37/ DS-382AHD37/ IV-380AHD37 Model MC-382AHD37 DL-382AHD37 DS-382AHD37 IV-380AHD37 Image Sensor 1/3" 1.3MP Sony Sensor Effective Pixels 1280(H)×960(V) Scanning System Progressive Resolution Digital:1280×960P, Analog:960H Min. Illumination 0.01Lux / (0Lux IR On) 0Lux (IR On) Day & Night EXT, Color, B&W, AUTO IR LED 18pcs(10m) - Page 9 Specifications: PRO-AHD camera (1080P) MC-392AHD37/ DL-392AHD37/ DS-392AHD37/ IV-390AHD37 Model MC-392AHD37 DL-392AHD37 DS-392AHD37 IV-390AHD37 Image Sensor 1/3" 2.0MP Sony Sensor Effective Pixels 1920(H)×1080(V) Scanning System Progressive Resolution Digital:1920×1080P, Analog:960H 0.01Lux Min. Illumination 0Lux (IR On) EXT, Color, B&W, AUTO Day & Night IR LED 18pcs(10m) OSD Menu...
