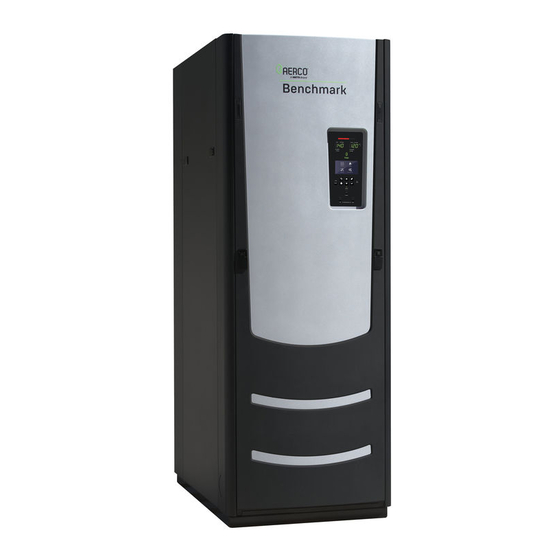

Benchmark 2500 - 3000 Boilers
Installation, Operation & Maintenance Manual (IOMM)
USER MANUAL
Installation, Operation and Maintenance
BENCHMARK
2500 / 3000
Natural Gas Modulating
& Condensing Hot Water
Gas-Fired Boilers
Boiler Models:
• BMK 2500
• BMK 3000
Applicable to Serial Numbers:
G-15-2700 and Above
Latest Update: 09/30/2015
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
OMM-0094_0F
Page 1 of 207
Ph.: 800-526-0288
GF-137
09/30/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMK 2500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aerco BMK 2500

Summary of Contents for Aerco BMK 2500

  • Page 1 Gas-Fired Boilers Boiler Models: • BMK 2500 • BMK 3000 Applicable to Serial Numbers: G-15-2700 and Above Latest Update: 09/30/2015 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 1 of 207 Ph.: 800-526-0288 GF-137 09/30/2015...
  • Page 2 The information contained in this manual is subject to change without notice from AERCO International, Inc. AERCO makes no warranty of any kind with respect to this material, including, but not limited to, implied warranties of merchantability and fitness for a particular application.

  • Page 3: Table Of Contents

    3.3 CONTROL PANEL MENUS ........................39 3.3.1 Menu Processing Procedure ........................... 39 3.4 OPERATING MENU ..........................41 3.5 SETUP MENU ............................41 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 3 of 207 Ph.: 800-526-0288...
  • Page 4 6.6 INTERLOCK TESTS ..........................79 6.6.1 Remote Interlock Test............................. 79 6.6.2 Delayed Interlock Test ............................ 79 6.7 FLAME FAULT TESTS ......................... 80 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 4 of 207 OMM-0094_0F Ph.: 800-526-0288...
  • Page 5 APPENDIX C: SENSOR RESISTANCE/VOLTAGE CHART ............149 APPENDIX D: RECOMMENDED PERIODIC TESTING ............151 APPENDIX E: INDOOR/OUTDOOR RESET RATIO CHARTS ..........153 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 5 of 207 Ph.: 800-526-0288...
  • Page 6 APPENDIX J: PIPING DRAWINGS ....................191 APPENDIX K: C-MORE CONTROL PANEL VIEWS ..............199 APPENDIX L: RECOMMENDED SPARES ................... 201 APPENDIX M: KOREAN GAS TRAINS..................203 AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 6 of 207 OMM-0094_0F Ph.: 800-526-0288...

  • Page 7: Foreword

    15:1. These BMK models provide extremely high efficiency operation and are ideally suited for modern low temperature, as well as, conventional heating systems. The Benchmark Model BMK 2500 and BMK 3000 operate within the following input and output ranges: Benchmark Input Range (BTU/hr.)
  • Page 8 BTUs per Hour (1 BTU/hr = 0.29 W) Combination Control Panel Combination Control System C-More Controller A control system developed by AERCO and currently used in all Benchmark, (or Control Box) Innovation and KC1000 Series product lines. Cubic Feet per Hour (1 CFH = 0.028 m...
  • Page 9 Hardware interface between BAS and a boiler or water heater Poly Vinyl Chloride, a common synthetic plastic Pulse Width Modulation REF (Ref) Reference AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 9 of 207 Ph.: 800-526-0288 GF-137...
  • Page 10 W.C. Water Column, a unit of pressure (1 W.C. = 249 Pa) µA Micro amp (1 million of an ampere) AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 10 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015 GF-137...

  • Page 11: Chapter 1. Safety Precautions

    In addition to all the requirements included in this AERCO Instruction Manual, the installation of units MUST conform with local building codes, or, in the absence of local codes, ANSI Z223.1 (National Fuel Gas Code Publication No. NFPA-54) for gas-fired boilers and ANSI/NFPASB for LP gas-fired boilers.

  • Page 12: Emergency Shutdown

    Chapter 6 of this manual be performed, to verify all system- operating parameters. If there is an emergency, turn off the electrical power supply to the AERCO boiler and close the manual gas valve located upstream the unit. The installer must identify the emergency shut-off device.
  • Page 13 248 CMR 5.08(2)(a)1 through 4. (b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4: AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 13 of 207 Ph.: 800-526-0288...
  • Page 14 ____________________________________________________________________________ [End of Extracted Information From 248 CMR 5.08 (2)] AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 14 of 207 OMM-0094_0F Ph.: 800-526-0288...

  • Page 15: Chapter 2. Installation

    2.1 INTRODUCTION This Chapter provides the descriptions and procedures necessary to unpack, inspect and install the AERCO Benchmark Boiler Models BMK 2500 and BMK 3000. 2.2 RECEIVING THE UNIT Each Benchmark Boiler System is shipped as a single crated unit. The shipping weight for these BMK models is approximately 2200 pounds (1000 kg).

  • Page 16: Site Preparation

    The Benchmark Model 2500 and 3000 are packaged in an enclosure having identical exterior dimensions. The unit must be installed with the prescribed clearances for service as shown in Figure 2-1a. The minimum clearance dimensions, required by AERCO, are listed below. However, if Local Building Codes require additional clearances, these codes shall supersede AERCO’s requirements.

  • Page 17: Setting The Unit

    4 inch to 8 inch (10.2 cm to 20.3 cm) concrete housekeeping pad (required) in the desired location. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 17 of 207 Ph.: 800-526-0288...

  • Page 18: Supply And Return Piping

    Figure 2-3. The physical location of the supply and return piping connections on the rear of the unit are shown in Figure 2-3. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 18 of 207 OMM-0094_0F Ph.: 800-526-0288...

  • Page 19: Pressure Relief Valve Installation

    AERCO SmartPlates, thermal efficiency can improve by up to 10%. If your unit includes the secondary inlet, pipe the warmer return water to the secondary (upper) inlet and the cooler return water to the primary (lower) inlet. Contact your AERCO representative for additional information.

  • Page 20: Condensate Drain & Piping

    • The base of the condensate trap must be supported to ensure that it is level (horizontal). • The trap must be removable for routine maintenance. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 20 of 207 OMM-0094_0F Ph.: 800-526-0288...

  • Page 21: Condensate Trap Installation

    EXHAUST THICK UNDER THE FLOOR MANIFOLD CONDENSATE DRAIN DRAIN PORT ASSEMBLY. Figure 2-6: Sample Condensate Trap Installation (Right Side View) AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 21 of 207 Ph.: 800-526-0288 GF-137 09/30/2015...

  • Page 22: Gas Supply Piping

    Benchmark 2500 - 3000 Boilers CHAPTER 2 – INSTALLATION 2.8 GAS SUPPLY PIPING The AERCO Benchmark Gas Components and Supply Design Guide, GF-2030 must be consulted prior to designing or installing any gas supply piping. WARNING! NEVER USE MATCHES, CANDLES, FLAMES OR OTHER...
  • Page 23 However, AERCO offers for sale an appropriate regulator, which may be ordered at the time of unit purchase or separately. Contact AERCO for more information. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913...

  • Page 24: Ac Electrical Power Wiring

    CHAPTER 2 – INSTALLATION 2.9 AC ELECTRICAL POWER WIRING The AERCO Benchmark Electrical Power Wiring Guide, GF-2060, must be consulted prior to connecting any AC power wiring to the unit. External AC power connections are made to the unit inside the Power Box on the front of the unit. Remove the front panel to access the Power Box, which is mounted in the upper right corner of the unit as shown in Figure 2-8.

  • Page 25: Electrical Power Requirements

    National Electrical Code (NEC), ANSI/NFPA 70 and/or the Canadian Electrical Code (CEC) Part I, CSA C22.1 Electrical Code. For electrical power wiring diagrams, see the AERCO Benchmark Electrical Power Guide, (GF- 2060). AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913...

  • Page 26: Field Control Wiring

    WARNING! DO NOT make any connections to the I/O Box terminals labeled “NOT USED”. Attempting to do so may cause equipment damage. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 26 of 207 OMM-0094_0F Ph.: 800-526-0288...

  • Page 27: Outdoor Air In Terminal

    61024). This input is always enabled and is a “to view only” input that can be seen in the Operating menu. A resistance chart for this sensor is provided in APPENDIX C. This sensor is AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 27 of 207 Ph.: 800-526-0288...

  • Page 28: O 2 Sensor Terminals

    Chapter 3. If voltage rather than current is selected as the drive signal, a DIP switch must be set on the PMC Board located inside the C-More Control Box. Contact the AERCO factory for information on setting DIP switches.

  • Page 29: Shield Terminals

    2.10.9 RS485 Comm Terminals The RS-485 communication terminals (+, GND, & -) are used when the boiler plant is being controlled by an Energy Management System (EMS) or AERCO ACS (formerly BMS/BMS-II) using Modbus (RS-485) communication. 2.10.10 RS232 Comm Terminals As of Firmware version 4.0 and above, these terminals are used only by factory-trained...

  • Page 30: Fault Relay Terminals

    Figure 2-12 to locate the AUXILLIARY RELAY terminals for wiring connections. 2.11 FLUE GAS VENT INSTALLATION AERCO Gas Fired Venting and Combustion Air Guide, GF-2050 must be consulted before any flue or combustion air venting is designed or installed. Suitable, U/L approved, positive pressure, watertight vent materials MUST be used for safety and UL certification.

  • Page 31: Combustion Air

    For combustion air supply from ducting, consult the AERCO GF-2050, Gas Fired Venting and Combustion Air Guide. When combustion air is provided from within the building, it must be supplied to the unit(s) through two permanent openings.

  • Page 32: Sequencing Isolation Valve Installation

    (P/N 92084-TAB) included in the shipping container. This valve is an integral component of the AERCO’s on-board Boiler Sequencing Technology (BST) solution. BST allows sites with multiple boilers to have one boiler, acting as a “master” to manage the other boilers at the site in such a way that the efficiency of the entire boiler array is maximized.
  • Page 33 Figure 2-14: Sequencing Isolation Valve Installed 3. Remove the jumper wire from the Molex connector and then plug it into the sequencing isolation valve’s connector. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 33 of 207 Ph.: 800-526-0288...
  • Page 34 Benchmark 2500 - 3000 Boilers CHAPTER 2 – INSTALLATION (This Page Is Intentionally Blank) AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 34 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015 GF-137...

  • Page 35: Chapter 3. Operation

    These operating controls, indicators and displays are listed and described in Table 3-1. Additional information on these items is provided in the individual operating procedures and menu descriptions provided in this Chapter. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 35 of 207 Ph.: 800-526-0288...
  • Page 36 Benchmark 2500 - 3000 Boilers CHAPTER 3 – OPERATION Figure 3-1: Control Panel Front View AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 36 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015 GF-137...
  • Page 37 Low Water Level alarm. TEST/RESET Pressing RESET resets the water level monitor circuit. switches Pressing the CLEAR key (item 6) resets the display. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 37 of 207 Ph.: 800-526-0288 GF-137...
  • Page 38 20 segment red LED bargraph continuously shows the VALVE POSITION Air/Fuel Valve position in 5% increments from 0 to 100% Bargraph AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 38 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015...

  • Page 39: Control Panel Menus

    The menu option choices do not wrap around. 7. To select and store a changed menu item, press the ENTER key. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 39 of 207 Ph.: 800-526-0288...
  • Page 40 Refer to Appendix B for listings and descriptions of displayed startup, status and error messages. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 40 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015...

  • Page 41: Operating Menu

    Setup menu is also used to enter date and time, and units of temperature measurements. A view-only software version display is also provided to indicate the current Control Box software version. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 41 of 207 Ph.: 800-526-0288...

  • Page 42: Configuration Menu

    The Configuration menu settings shown in Table 3-4 are Factory- Set in accordance with the requirements specified for each individual order. Therefore, under normal operating conditions, no changes will be required. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 42 of 207 OMM-0094_0F Ph.: 800-526-0288...
  • Page 43 Pos 4-20mA, valve Pos 0-10v Low Fire Timer 2 sec. 600 sec. 2 sec. Setpt Limiting Enabled or Disabled Disabled AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 43 of 207 Ph.: 800-526-0288 GF-137 09/30/2015...

  • Page 44: Tuning Menu

    Warmup Int Gain 0.00 2.00 0.50 Warmup PID timer 0 sec. 240 sec. 20 sec. Reset Defaults? Yes, No, Are You Sure? AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 44 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015 GF-137...

  • Page 45: Combustion Cal Menu

    The Items contained in group 1 (BST Monitor Items) are ALWAYS displayed within the menu, as these items are critical for proper system operation. Therefore, the BST Monitor Items Header itself is NOT displayed. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 45 of 207 Ph.: 800-526-0288...
  • Page 46 130°F (54.4°C) Setback Start 12:00am 11:59pm 12.00am Setback End 12:00am 11:59pm 12.00am Rate Threshold 1°F (0.55°C) 30°F (16.5°C) 15°F (8.25°C) AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 46 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015 GF-137...
  • Page 47 BST Max Addr SSD Address SSD Poll Control 1000 Err Threshold SSD Temp Format Degrees Points Degrees BST Upld Timer 9999 sec AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 47 of 207 Ph.: 800-526-0288 GF-137 09/30/2015...

  • Page 48: Start Sequence

    NATURAL SWITCH GAS INLET SSOV AIR/FUEL LOW GAS VALVE MANUAL PRESSURE SHUT-OFF SWITCH VALVE BMK 2500: Figure 3-3a: SSOV Location AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 48 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015 GF-137...
  • Page 49 Next, the Blower Proof switch on the Air/Fuel Valve (Figure 3-5) closes. The display will show PURGING and indicate the elapsed time of the purge cycle in seconds. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 49 of 207 Ph.: 800-526-0288...
  • Page 50 (d) If no spark is present 3 seconds into the IGNITION TRIAL, the C-More will abort the Ignition Cycle and shut down the boiler. Refer to Chapter 8: Troubleshooting for guidance if this occurs. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 50 of 207 OMM-0094_0F Ph.: 800-526-0288...
  • Page 51 Once the demand for heat has been satisfied, the Control Box will turn off the SSOV gas valve. The blower relay will be deactivated and the Air/Fuel Valve will be closed. STANDBY will be displayed. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 51 of 207 Ph.: 800-526-0288...

  • Page 52: Start/Stop Levels

    1,270,000 (372 kW) 1,680,000 (492 kW) 2,100,000 (615 kW) 2,390,000 (700 kW) 2,650,000 (777 kW) 100% 3,000,000 (879 kW) 100% AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 52 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015 GF-137...

  • Page 53: Chapter 4. Initial Start-Up

    Safety Device Testing procedures specified in Chapter 6 to complete all initial unit start-up requirements. An AERCO Gas Fired Startup Sheet, included with each Benchmark, must be completed for each unit for warranty validation and a copy must be returned promptly to AERCO via e-mail at: STARTUP@AERCO.COM WARNING! DO NOT ATTEMPT TO DRY FIRE THE UNIT.

  • Page 54: Required Tools & Instrumentation

    VALVE LOW GAS PRESSURE MANUAL SWITCH SHUT-OFF VALVE Figure 4-1a: BMK 2500: 1/4 Inch Gas Plug Location for Combustion Calibration AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 54 of 207 OMM-0094_0F Ph.: 800-526-0288 09/30/2015 GF-137...
  • Page 55 Attach one end of the plastic tubing to the barbed fitting and the other end to the 16” W.C. (0 to 4000 Pa) manometer. AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 55 of 207 Ph.: 800-526-0288...

  • Page 56: Accessing The Analyzer Probe Port

    Recalibration as part of initial start-up is necessary due to changes in the local altitude, gas BTU content, gas supply piping and supply regulators. Combustion Calibration Test Data sheets are shipped with each unit. These sheets must be filled out and returned to AERCO for proper Warranty Validation.

  • Page 57: Benchmark 2500 Combustion Calibration

    Table 4-2: Combustion Calibration Readings – 100% valve Position Valve Position Oxygen (O Nitrogen Oxide (NOx) Carbon Monoxide (CO) ≤20 ppm 100% 5.0% - 6.0% <100 ppm AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 OMM-0094_0F Page 57 of 207 Ph.: 800-526-0288 GF-137 09/30/2015...
