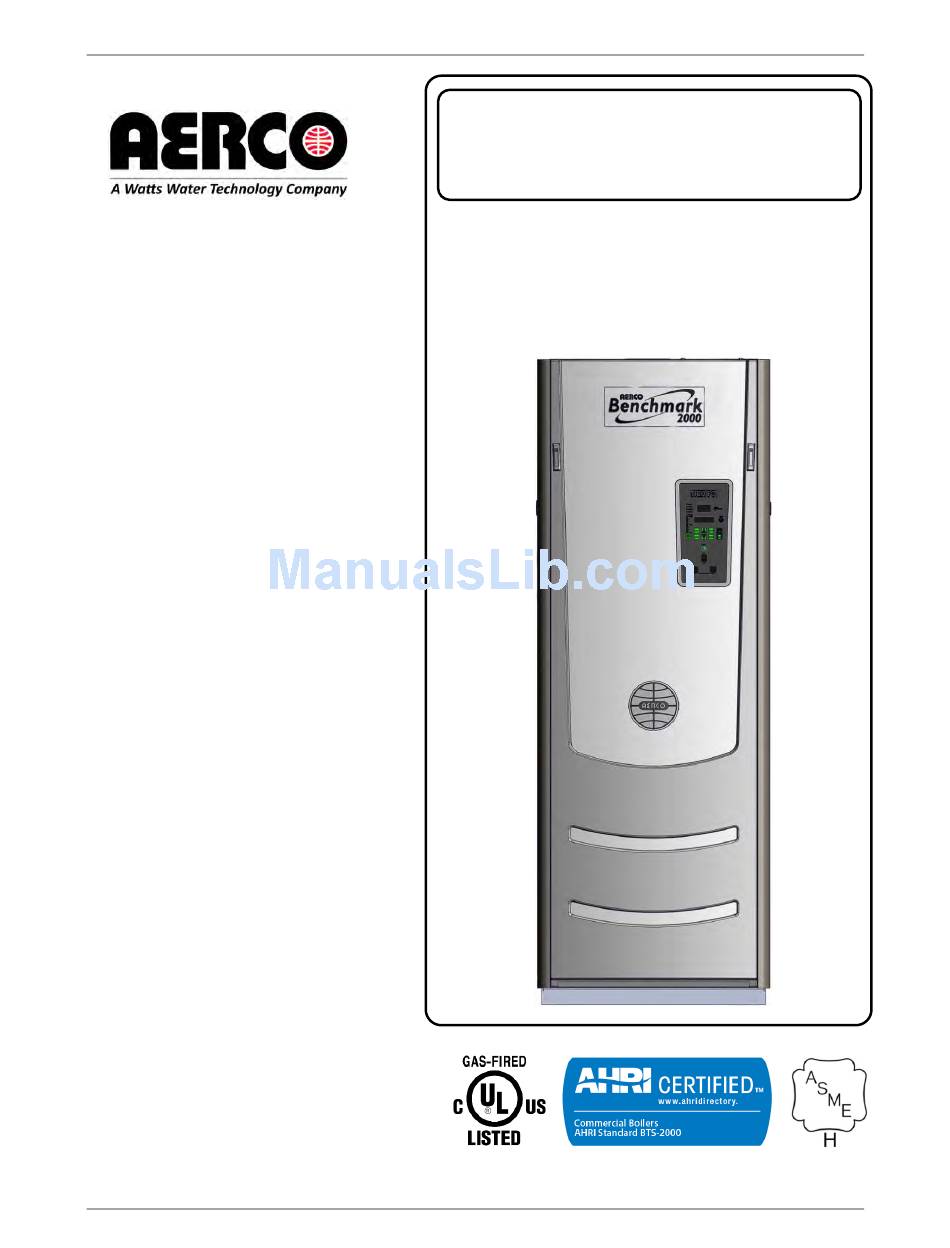

Benchmark 1500 - 2000 Boilers
Installation, Operation & Maintenance Manual
USER MANUAL
Installation, Operation and Maintenance
BENCHMARK
Natural Gas Modulating
1500 and 2000
& Condensing Hot Water
Gas-Fired Boilers
Boiler Models:
• BMK 1500
• BMK 2000
Applicable to Serial Numbers:
G-15-2700 and Above
Latest Update: 10/01/2015
OMM-0097_0E
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913
Page 1 of 182
GF-142
Ph.: 800-526-0288
10/01/2015
