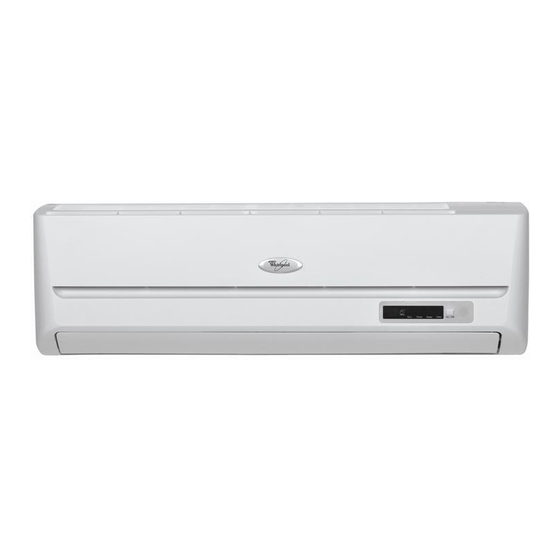

Whirlpool AMD 011 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

BEFORE USING THE APPLIANCE
To make the most out of your new appliance,
please read the user instructions carefully and keep
them handy for future consultation.
Before using the appliance please follow and
set according to the below indications:
Remote Control (RC) presetting:
Each time the batteries are replaced in the remote
control, the RC is pre-set on Heat pump.
If the air conditioner that you purchased is a
cooling only, then the pre-set on Heat pump will
not bring any changes.

SAFETY PRECAUTIONS

• Do not install the appliance if it is connected to
the power supply.
• The Installation and service/repair must be
performed by a qualified technician, in
compliance with the producer's instructions and
following local safety norms. Do not repair or
replace any parts of the appliance unless it is
specifically written in the user instructions.
• The grounding of this appliance is compulsory.
• Make sure that the power supply cord is long
enough to allow the right connection. Do not
use any extension cord for power supply.
• Do not pull the power supply cord to remove it
from the socket.
Downloaded from AC-Manual.com Manuals
Auto-Restart presetting Function:
To set the auto-restart function, press the
Emergency button (ON/OFF) on the indoor unit
for at least 5 seconds
A buzz sound will signal that the auto-restart
function is set and the air conditioner is in standby.
To cancel the auto-restart function, repeat the
above steps.
• Do not twist or press the power supply cord,
and make sure it is not broken.
• Once installation is completed, the electric
components must not be accessible to the users.
• Do not touch the operation buttons when your
hands are wet and don't use the appliance when
you are barefoot.
• Physically or mentally disabled people, children
and people without any experience with the
product are only allowed to use the appliance if
they have had specific training on how to
operate the appliance by a person responsible
for their security and well-being. The appliance
is not intended for use by disabled people and
very young children without supervision.
4

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool AMD 011

Summary of Contents for Whirlpool AMD 011

  • Page 1: Safety Precautions

    BEFORE USING THE APPLIANCE To make the most out of your new appliance, Auto-Restart presetting Function: please read the user instructions carefully and keep To set the auto-restart function, press the them handy for future consultation. Emergency button (ON/OFF) on the indoor unit for at least 5 seconds Before using the appliance please follow and A buzz sound will signal that the auto-restart...

  • Page 2: Safeguarding The Environment

    AIR CONDITIONER PRECAUTIONS Please strictly follow the below instructions: • Do not place any objects on the outdoor unit. • Long and direct exposure to cool air might be • This product contains Fluorinated Greenhouse harmful to health. It is advisable to set the Gases covered by the Kyoto Protocol, the louvers in order to avoid direct cool air and refrigerant gas being in a hermetically sealed...

  • Page 3: Product Description

    PRODUCT DESCRIPTION Indoor unit Outdoor unit 1. Air Intake 11. Air Intake 2. Front Panel 12. Pipes and Power Connection Cord 3. Display panel 13. Drain Hose 4. Electrical box Note: Condensate water drains at COOLING 5. Air Outlet or DRY operation. 6.
  • Page 4 CONTROL PANEL DISPLAY INDICATORS DESCRIPTION Temperature indicator (1) Displays set temperature. Running indicator (2) It lights up during operation. It flashes during outside unit defrosting. Timer indicator (3) It lights up during the set time. It goes off when timer operation ends. Sleep indicator (4) It lights up during sleep mode.
  • Page 5 REMOTE CONTROL FUNCTIONS AND INDICATORS 1. ON/OFF BUTTON Starts and/or Stops the appliance by pressing this button. 2. TIMER BUTTON Sets or cancels the timer operation. 3-4. ROOM TEMPERATURE SETTING BUTTONS Used to select the room temperature. Used to set time in timer mode. 5.
  • Page 6 STORAGE AND TIPS FOR USING THE RC How to insert the batteries Remove the battery cover in the direction of the arrow. Insert new batteries making sure that the (+) and (-) of battery are matched correctly. Refit the cover by sliding it back into position. Note: •...

  • Page 7: Operating Mode Description

    OPERATING MODE DESCRIPTION Operation Modes: 1. Selecting mode Each time MODE button is pressed, the operation mode is changed in sequence: COOLING → DRY → FAN ONLY → HEATING ↑ Heating mode is not available for cooling only air conditioners. 2.

  • Page 8: Airflow Direction Control

    AIRFLOW DIRECTION CONTROL 5. Airflow direction control Vertical airflow is automatically adjusted to a certain angle in accordance with the operation mode after turning on the unit. The direction of airflow can be also adjusted to your own requirement by pressing the "SWING" button of the remote control.
  • Page 9 MODE AND FUNCTION DESCRIPTIONS 6th SENSE MODE Press the button, the unit enters 6th sense mode directly regardless of the unit is on or off. In this mode, temperature and fan speed are automatically set based on the actual room temperature.
  • Page 10 SLEEP mode SLEEP mode can be set in COOLING or HEATING operation mode. This function gives you a more comfortable environment for sleep. In SLEEP mode, • The appliance will stop operation automatically after operating for 8 hours. • Fan speed is automatically set at low speed. •...
  • Page 11 Timer function It is convenient to set the timer on by pressing the button to achieve a comfortable room temperature at the time you get home. You can also set timer off automatically to enjoy a good sleep at night. Timer-setting Set the timer when the appliance is off.

  • Page 12: Maintenance

    MAINTENANCE Unit 1. Unplug from the power supply Turn off the appliance first before disconnecting from power supply. 2. To remove the front panel pull it outwards (Fig. A). 3. Wipe with a soft and dry cloth. Use lukewarm water (below 40°C) to clean if the appliance is very dirty.

  • Page 13: Troubleshooting

    • Install the outdoor unit at a place where the air Features of HEATING mode discharged and the operation noise would not Preheating annoy your neighbours. 2-5 minutes are necessary to preheat the indoor • Do not place any obstacles in front of the air unit at HEATING operation start.

  • Page 14: Installation Instructions

    INSTALLATION INSTRUCTIONS Installation diagram Distance from ceiling should be over 50mm Distance from wall should be over 50mm Distance from the wall should be over 50mm Distance from floor should be over 2000mm Air intake distance from the wall should be over Air intake distance from 250mm the wall should be over...
  • Page 15 Select the best location Indoor unit Location for Installing Indoor Unit • Where there is no obstacle near the air outlet and air can be easily blown to every corner. • Where piping and wall hole can be easily Pipe length is arranged.

  • Page 16: Indoor Unit Installation

    INDOOR UNIT INSTALLATION 1. Installing the Mounting Plate • Select a location to install the mounting plate according to the indoor unit location and piping direction. Tapping screw • Adjust the mounting plate horizontally with a horizontal ruler or plumb line. •...
  • Page 17 IMPORTANT: Piping Joints Thermal Insulation: Wrap the piping joints with thermal insulating materials and then wrap with a vinyl tape. Wrapped with vinyl type Thermal insulation Thermal Insulation piping: a. Place the drain hose under the piping. Thermally b. Insulation material: polythene foam over 6mm in Large pipe insulated tube thickness.
  • Page 18 Piping Connection: a. Connect indoor unit pipes with two wrenches. Pay special attention to the torque allowed as shown below to prevent the pipes, connectors and flare nuts from being deformed and damaged. b. At first fingers-tighten them, then use the wrenches. Model Pipe size Torque...

  • Page 19: Wiring Diagram

    CAUTION: 1. Use an individual power circuit specifically for the air conditioner. As for the wiring method, refer to the circuit diagram on the inside of the access door . 2. Check that the cable thickness conforms to the power source specification. 3.
  • Page 20 • Power supply from Indoor unit, including 18K Model HEAT PUMP Indoor unit Outdoor unit Terminal Terminal Brown Brown Blue Blue power connecting cord 1 Brown Brown Blue Blue power connecting cord Yellow/Green Yellow/Green • Power supply from outdoor unit, including 24K Model For these models, the power supply is connected from outdoor unit, with a circuit breaker.

  • Page 21: Outdoor Unit Installation

    OUTDOOR UNIT INSTALLATION 1. Install Drain Port and Drain Hose (for heat- pump model only) The condensate drains from the outdoor unit when the unit operates in heating mode. In order not to disturb your neighbours and protect the environment, install a drain port and a drain hose to direct the condensate water.
  • Page 22 How to Purge Air Tubes: (1). Unscrew and remove caps from 2 and 3-way valves. (2). Unscrew and remove cap from service valve. (3). Connect vacuum pump flexible hose to the service valve. (4). Start vacuum pump for 10-15 minutes until it reaches an absolute vacuum of 10 mm Hg. (5).
