Page 1: Installation Instructions

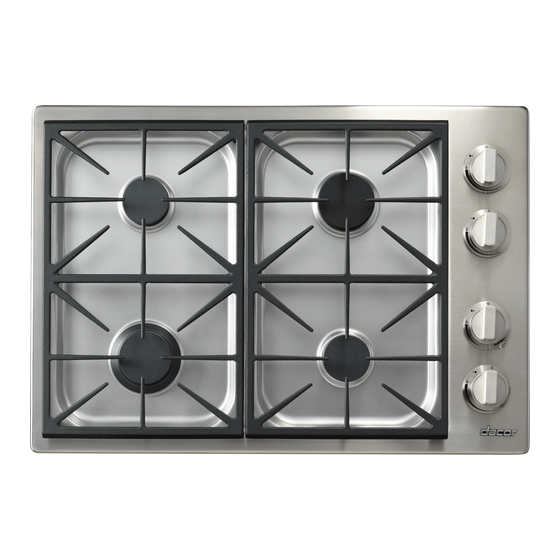

Installation Instructions Discover y Gas Cooktop ® Models DYCT304G, DYCT365G Part No. 108861 Rev. A... -
Page 2: Table Of Contents
Monday — Friday 6:00 . to 5:00 . Pacific Time label Model Shown: DYCT365G Product Data Label Location All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. © 2015 Dacor, all rights reserved. -
Page 3: Important Safety Instructions
From a neighbor’s phone, immediately call the gas ating this or any other appliance. supplier. Follow the gas supplier’s instructions. • Always contact the Dacor Customer Service Team • If you cannot contact the gas supplier, call the fire about problems and conditions that you don’t under- department. -
Page 4: General Safety Precautions
Important Safety Instructions General Safety Precautions WARNING To reduce the risk of fire, electric shock, or serious injury • Do not leave the cooktop unattended while in use to or death when using your appliance, follow basic safety avoid the possibility of a fire. precautions, including the following: •... -
Page 5: Electrical Requirements
3/4” male NPT fit- page for reference. ting. • Be certain to locate the electrical outlet so that the See the DYCT304G and DYCT365G images on the left. power cord may be easily disconnected if the unit needs service. DYCT304G/NG DYCT304G/LP... -
Page 6: Installation Specifications
WARNING Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information. Product Dimensions All tolerances: ±1/16” (±1.6 mm) unless otherwise noted. Model DYCT304G 30” (76.2 cm) Chassis height Bottom of spill tray to top of cooking surface 4”... - Page 7 Installation Specifications Model DYCT365G 36” (76.2 cm) Chassis Bottom of spill tray to height top of cooking surface 4” 2 1/8” (10.2 cm) (5.4 cm) 33 5/8” * (85.4 cm) 21” (53.3 cm) 19 1/2” * (49.5 cm) * Including raised embosses on sides of chassis Front of cooktop Gas inlet Power cord in...
-
Page 8: Cabinet And Countertop Layout
This appliance is to be used in conjunction with a suit- • The gas supply piping, gas shut-off valve, and the elec- able vent hood or approved Dacor downdraft vent. trical outlet must be located so they do not interfere Minimum Required Clearances with the cooktop after it is installed. -
Page 9: Cutout Dimensions
(C) Minimum DYCT304G with no downdraft 2 7/8” (7.3 cm) 19 3/4” (50.2 cm) 27 5/8” 7 1/2” DYCT304G with ERV3015 or PRV30 3/8” (1.0 cm) 22 1/2” (57.2 cm) (70.1 cm) (19.1 cm) DYCT304G with RV30 5/8” (1.6 cm) 22 1/4”... -
Page 10: Verifying The Package Contents
Ensure that the arrow on the regulator points in the If any parts are missing, see the Replacement Parts List direction of the gas flow, toward the cooktop. section on page 12 for Dacor Customer Service and • Do not apply excessive pressure when tightening gas ordering information. -
Page 11: Assembling The Burners
Wide side down Burner head * Burner base Single Burner SimmerSear™ Assembly Burner Assembly * The SimmerSear burner head is permanently attached to Burner and Grate Diagram for the burner base. It cannot be removed by the user. DYCT304G and DYCT365G... -
Page 12: Verifying The Correct Setup
3. Turn on power to the electrical outlet at the circuit available when you call. See inside cover for location. breaker or fuse box. Dacor is not responsible for the cost of correcting problems 4. Press and turn ONE burner control knob slowly left to caused by a faulty installation. -
Page 13: Installation Checklist
Proper installation is the responsibility of the homeowner. The importance of proper installation of your Dacor cooktop cannot be overemphasized. □ Is the electrical outlet for the cooktop grounded and... -
Page 14: Replacement Parts List
Replacement Parts List Replacement Parts List Replacement parts can be obtained by contacting Dacor Customer Service. Model DYCT304G Dacor Customer Service See the Burner Parts and Cooktop Layout on right Phone: (800) 793-0093 (U.S.A. and Canada) Burner Part Dacor P/N Monday —... - Page 15 Burner Location & Trim ring Left Rear SimmerSear™ control knob Right Rear & Trim ring Center Rear Grate Left Front DYCT304G Right Front Grate Center Front Spill tray Burner control knob & Trim ring SimmerSear™ control knobs & Trim ring...
-
Page 16: Wiring Diagrams
Wiring Diagrams WIRING DIAGRAM 120V, 60Hz. DYCT304G POWER SUPPLY CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION VERIFY PROPER OPERATION WHEN SERVICING CONTROLS. WIRING ERRORS CAN AFTER SERVICING CAUSE IMPROPER AND DANGEROUS OPERATION. -
Page 17: Wiring Diagram
Wiring Diagrams WIRING DIAGRAM 120V, 60Hz. DYCT365G POWER SUPPLY CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION VERIFY PROPER OPERATION WHEN SERVICING CONTROLS. WIRING ERRORS CAN AFTER SERVICING CAUSE IMPROPER AND DANGEROUS OPERATION. ISOLATOR BOARD P/N 106104 IGNITOR, NO SWITCH LR BURNER RE-IGNITOR IGNITOR, NO SWITCH... - Page 18 Dacor ● 14425 Clark Avenue, City of Industry, CA 91745 ● Phone: (800) 793-0093 ● Fax: (626) 403-3130 ● www.dacor.com...
