Summary of Contents for Maktec MT360

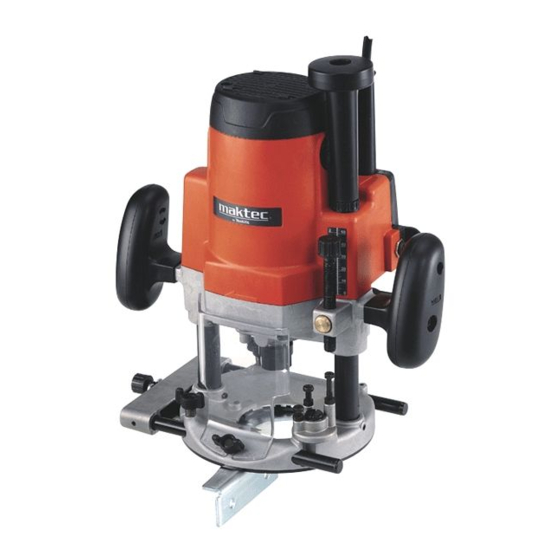

- Page 1 INSTRUCTION MANUAL Router MT360 011671 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MT360 Collet chuck capacity 12 mm or 1/2" Plunge capacity 0 - 60 mm No load speed (min 22,000 Overall height 300 mm Net weight 5.4 Kg Safety class • Due to our continuing program of research and development, the specifications herein are subject to change without notice. -
Page 3: Router Safety Warnings
Keep cord away from heat, oil, sharp edges or 19. Do not use the power tool if the switch does moving parts. Damaged or entangled cords not turn it on and off. Any power tool that cannot increase the risk of electric shock. be controlled with the switch is dangerous and When operating a power tool outdoors, use an must be repaired. -
Page 4: Functional Description
Check the bit carefully for cracks or damage FUNCTIONAL DESCRIPTION before operation. Replace cracked damaged bit immediately. Avoid cutting nails. Inspect for and remove all CAUTION: nails from the workpiece before operation. Always be sure that the tool is switched off and •... -
Page 5: Operation
Stopper block CAUTION: Install the bit securely. Always use only the wrench • 1. Stopper pole provided with the tool. A loose or overtightened bit 2. Chip deflector can be dangerous. 3. Stopper Do not tighten the collet nut without inserting a bit or •... - Page 6 the tool base and tighten the thumb screw (A). To adjust the distance between the bit and the straight guide, loosen the thumb screw (B) and turn the fine adjusting screw (1.5 mm per turn). At the desired distance, tighten the thumb screw (B) to secure the straight guide in place.
- Page 7 1. Templet guide 1. Wing bolt (A) 2. Screw 2. Guide holder 3. Base plate 3. Fine adjusting screw 4. Wing bolt (B) 5. Wing bolt (C) 6. Guide roller 7. Trimmer guide 003692 004936 Secure the templet to the workpiece. Place the tool on When cutting, move the tool with the guide roller riding the templet and move the tool with the templet guide the side of the workpiece.
-
Page 8: Replacing Carbon Brushes
Dust extraction (Accessory) Replacing carbon brushes 1. Vacuum head 1. Limit mark 004939 001145 Use the vacuum head for dust extraction. To Install the Remove and check the carbon brushes regularly. vacuum head, raise the lock lever on it. Place the Replace when they wear down to the limit mark. -
Page 9: Optional Accessories
"V"Grooving bit OPTIONAL ACCESSORIES Router bits Straight bit 005118 1/4" 005116 006454 Dovetail bit 1/4" 1/2" 1/2" 1/4" 005119 1/4" 006452 "U"Grooving bit 14.5 15SE 3/8" 14.5 14.5 15LE 3/8" 3/8" 006455 Drill point flush trimming bit 005117 006453 005120 006456... - Page 10 Board-jointing bit Drill point double flush trimming bit 005121 005123 006457 Slotting cutter 005124 006459 Corner rounding bit 005122 1/2" 1/2" 006458 005125 006460...
- Page 11 Chamfering bit Cove beading bit 005126 005129 1/2" 006461 006464 Ball bearing flush trimming bit 005127 005130 1/4" 006462 006465 Beading bit Ball bearing corner rounding bit 005128 005131 1/2" 006463 1/4" 006466...
- Page 12 Ball bearing chamfering bit Ball bearing roman ogee bit 005132 005135 1/4" 006470 Double ball bearing round corner bit 006467 Ball bearing beading bit 005136 005133 1/2" 006471 NOTE: 006468 Ball bearing cove beading bit Some items in the list may be included in the tool •...
- Page 16 Makita Corporation Anjo, Aichi, Japan www.makita.com 884528B4...
