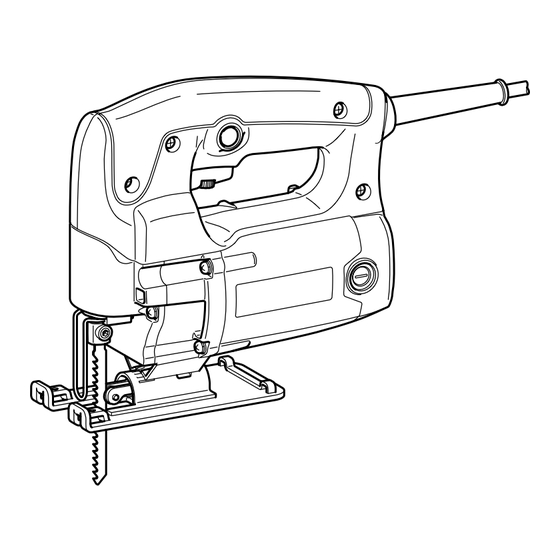

- Page 1 INSTRUCTION MANUAL Jig Saw MT430 009634 DOUBLE INSULATION WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MT430 Length of stroke 26 mm Wood 55 mm Max. cutting capacities Steel 6 mm Strokes per minute (min 0 - 3,100 Overall length 219 mm Net weight 2.5kg Safety class • Due to our continuing programme of research and development, the specifications herein are subject to change without notice. -
Page 3: General Power Tool Safety Warnings
Designation of Machine: adapter plugs with earthed (grounded) power Jig saw tools. Unmodified plugs and matching outlets will Model No./ Type: MT430 reduce risk of electric shock. are of series production and Avoid body contact with earthed or grounded Conforms to the following European Directives:... -
Page 4: Jig Saw Safety Warnings
15. Do not overreach. Keep proper footing and 27. Keep handles dry, clean and free from oil and balance at all times. This enables better control grease. GEB016-3 of the power tool in unexpected situations. 16. Dress properly. Do not wear loose clothing or JIG SAW SAFETY WARNINGS jewellery. -
Page 5: Functional Description
instruction manual may cause serious personal injury. CAUTION: Always clean out all chips or foreign matter FUNCTIONAL DESCRIPTION • adhering to the blade and/or blade holder. Failure to do so may cause insufficient tightening of the CAUTION: blade, resulting in serious personal injury. Always be sure that the tool is switched off and •... -
Page 6: Operation
Hex wrench storage CAUTION: Always be sure that the tool is switched off and 1. Hex wrench • unplugged before tilting the base. With the base tilted, you can make bevel cuts at any angle between 0° and 45° (left or right). Loosen the bolt on the back of the base with the hex wrench and slide the base backwards. -
Page 7: Metal Cutting
Cutouts To trim edges or make dimensional adjustments, run the blade lightly along the cut edges. Cutouts can be made with either of two methods A or B. For smoother cutting of plywood or other workpiece with A) Boring a starting hole easily splintered surfaces, transparent tape may be used over your cutting line. -
Page 8: Maintenance
MAINTENANCE If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. Hex wrench 4 • CAUTION: Dust nozzle • Always be sure that the tool is switched off and • unplugged before attempting to perform inspection or maintenance. - Page 12 Makita Corporation Anjo, Aichi, Japan 884873B223...
