4. RECOMMENDED FOR INSTALLATION

• Phillips screwdriver (for rack ear attachment)
• Binary high-speed HDMI cables to connect sources to B-120-HDMATRIX-8x8 HDMI inputs
• Control system to control operation of B-120-HDMATRIX-8x8
• Windows PC with Configuration Utility installed and RS-232 adapter
• Configuration Utility Manual

5. DEVICE LAYOUT

A

5.1. Front Panel of the B-120-HDMATRIX-8x8 Switcher

A. Power On/Off Switch
Lights up blue when power is on and lights up red when in stand-by. Can be disabled from configuration utility
software
B. Source Status LEDs
Indicates that the selected source is On and transmitting an HDMI signal
C. Output Display
Displays the last output selected
D. IR Receiver Window
IR receiver for matrix to capture commands sent by IR remote
E. Input Display
Displays the last input selected
B

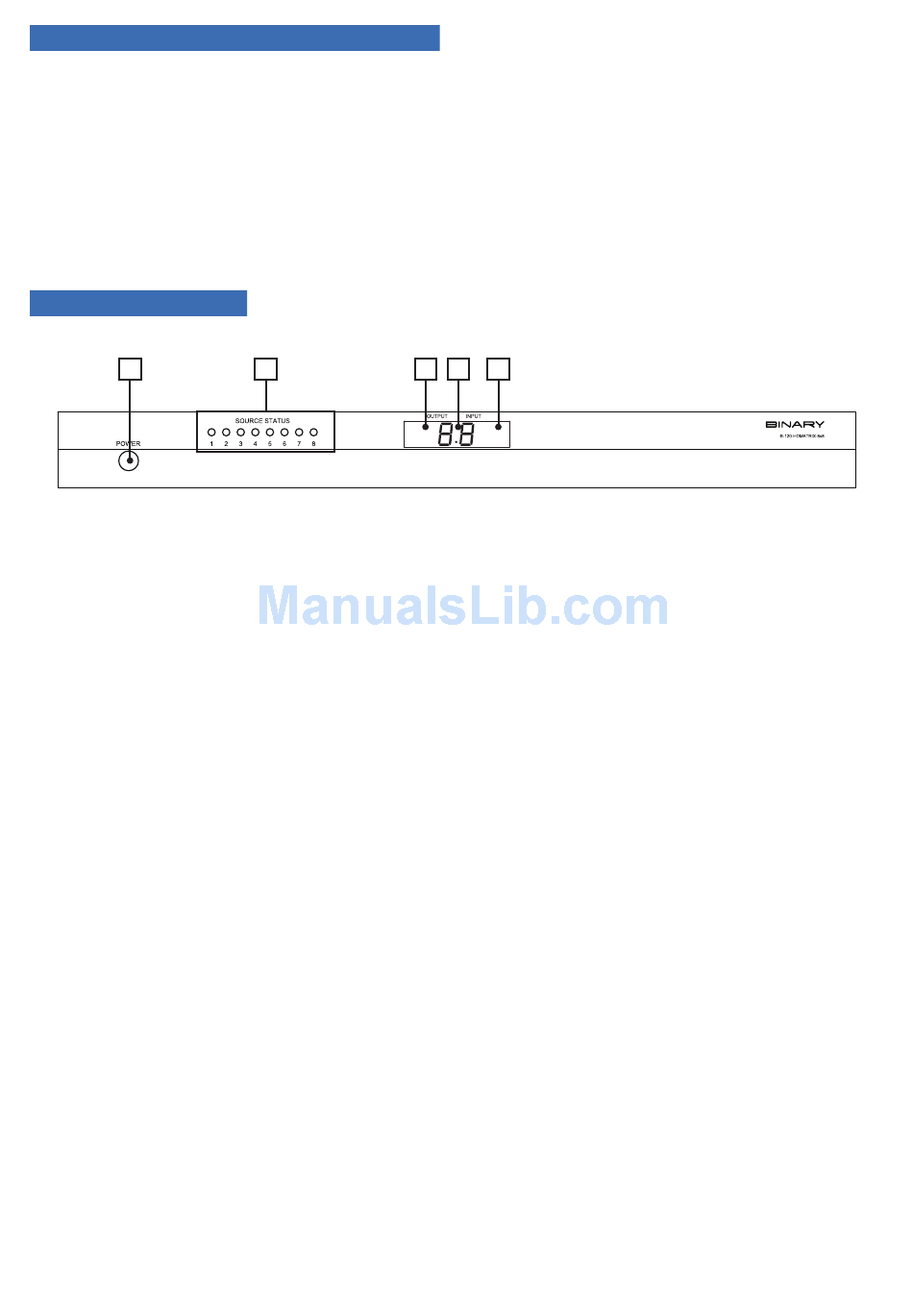

FIGURE 1: B-120-HDMATRIX-8x8 Switcher Layout (Front View)
C D E
