Summary of Contents for Binary B-120-HDMATRIX-8x8

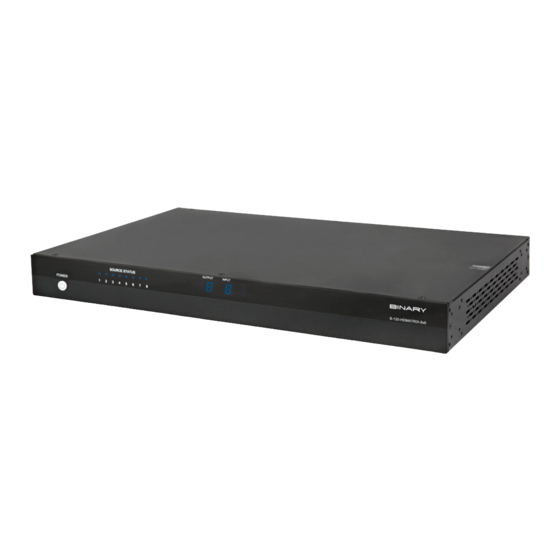

- Page 1 HDMI MATRIX SWITCHER B-120-HDMATRIX-8x8 INSTALLATION MANUAL Source | M (HDMI Ou...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire or electric shock, read and follow all instructions and warnings in this manual. Keep this manual for future reference. 1. Do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing, and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
-
Page 3: Table Of Contents
3. Package Contents ........................................4 4. Recommended for Installation ..................................5 5. Device Layout ........................................... 5 5.1. Front Panel of the B-120-HDMATRIX-8x8 Switcher ........................5 5.2. Rear Panel of the B-120-HDMATRIX-8x8 Switcher ........................6 6. Installation & Setup........................................ 6 6.1. Basic Installation Diagram ..................................6 6.2. -
Page 4: Product Overview
1. PRODUCT OVERVIEW Welcome to Binary™. This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. The B-120-HDMATRIX-8x8 is a state-of-the-art HDMI matrix switcher with HDMI outputs. It provides true matrix routing for HDMI signals. -
Page 5: Recommended For Installation
4. RECOMMENDED FOR INSTALLATION • Phillips screwdriver (for rack ear attachment) • Binary high-speed HDMI cables to connect sources to B-120-HDMATRIX-8x8 HDMI inputs • Control system to control operation of B-120-HDMATRIX-8x8 • Windows PC with Configuration Utility installed and RS-232 adapter •... -
Page 6: Rear Panel Of The B-120-Hdmatrix-8X8 Switcher
To communicate with control system or Windows PC for serial control of matrix D. Ethernet Port RJ45 port for connecting an ethernet Cat5e/6 cable for IP control of the B-120-HDMATRIX-8x8 E. HDMI Inputs (1 through 8) Connect HDMI cables from sources to the matrix switcher for distribution HDMI Outputs - (1 through 8) Connect HDMI cables from matrix switcher to displays. -
Page 7: Basic Instructions
Leave an RS-232 connection easily accessible for using the Configuration Utility. The B-120-HDMATRIX-8x8 is equipped with many setup functions that must be accessed by using a PC and the Configuration Utility. Leave an RS-232 cable connected during setup and testing that can easily be connected to the PC. -
Page 8: Switcher Location And Placement
When placing on a cabinet shelf, position the unit with all feet resting on a solid level surface. 6.4.1. Rack Installation The B-120-HDMATRIX-8x8 can be mounted in a rack with the front or rear panel facing outward, and will displace 1U of vertical space when installed. Rear-facing installation allows for easy access to the connections for installations that do not require the front panel of the unit to be accessed. -
Page 9: Rs-232 Control
FIGURE 4: RS-232 (DB9) Pin Configurations 6.7.2. Ethernet/IP Control The B-120-HDMATRIX-8x8 includes an Ethernet port that can be used to control the device using Telnet Protocol. This port follows TIA 568B standards; please refer to these standards when terminating cables. -
Page 10: Edid Configuration
It is necessary to make sure sources will provide a video and audio format compatible with all connected displays programmed to use them. To accomplish this, the B-120-HDMATRIX-8x8 includes built-in EDID management for each source input. The stored EDID is per source, so all display locations will see the same resolution and have the same audio format when that source is selected. -
Page 11: How To Configure Auto Edid
3. Press ENTER 7.4. Embedded EDID Configuration In addition to the automatic configuration method, EDIDs in the B-120-HDMATRIX-8x8 can be set to inputs manually by selecting an EDID from the embedded list (default EDIDs programmed into the matrix switcher). The matrix switcher contains eight ‘embedded’ EDIDs that may be assigned to inputs. These EDIDs define groups of video and audio capabilities that are useful for configuring sources in most systems. -
Page 12: How To Set Embedded Edid For A Single Input
7.4.2. How to Set Embedded EDID for a Single Input Example: Input =1 Embedded EDID=4 Display Readout (Example) 1. Press DEFAULT 2. Press Number Key (1-4) to select one Embedded EDID 3. Press INPUT 4. Press Number Key (1-8) to select the Input to which the EDID is applied 5. -
Page 13: Viewing Input Edid Status
Default Setting: This setting controls the operation of the front panel IR receiver built into the B-120-HDMATRIX-8x8. This should be disabled if using the SYSTEM IR IN port to control the matrix switcher via IR, or if the matrix switcher is missing or receiving extra commands during use (stray IR interfering with the port). -
Page 14: Front Panel Power Button Active
9. FIRMWARE UPDATE Binary™ may occasionally release new firmware for theB-120-HDMATRIX-8x8 to address new standards and technology. It will never be necessary to perform an update to an existing, correctly functioning system, but during installation or service, it is recommended to check the installed version to be sure it is the newest available. -
Page 15: Route Inputs To Outputs
10.1.1. Route Inputs to Outputs Input to Single Output Display Readout (Example) Example: Output=3 Input=4 1. Press OUTPUT 2. Press Number Key (1-4) to select Output 3. Press INPUT 4.Press Number Key (1-8) to select Input 5. Press ENTER Input to All Outputs Display Readout (Example) Example: Output=All Input=4 1. -
Page 16: Resetting To Factory Defaults
1.1 before attempting further setup or use. 11. TROUBLESHOOTING If issues arise during installation or testing of the B-120-HDMATRIX-8x8, follow these guidelines to troubleshoot. Use the System Layout chart on the next page to record a description of each part of the system. If a problem cannot be solved using the methods listed here, fill out the System Layout Chart as completely as possible and contact Binary™... -
Page 17: No Signal From Any Source To Any Display
11.3. No Signal from any Source to any Display If a display connected to a matrix output will not sync to any source, the issue is usually either an incompatible EDID on all inputs or a problem with the cable connecting the display to the matrix switcher: •... -
Page 18: System Layout Chart
12. SYSTEM LAYOUT CHART Use this chart to identify the sources and displays attached to the system, and make any notes about each part. When completing the outputs chart, make sure to indicate whether an HDMI cable or HDMI extender is being used to extend signal to the display, and indicate the approximate length of any cables. -
Page 19: Specifications
13. SPECIFICATIONS TECHNICAL HDMI Compliance HDMI 3D HDCP Compliance Video Bandwidth 6.75Gbps Input TMDS Signal 1.2 Volts (peak-to-peak) Input DDC Signal 5 Volts (peak-to-peak, TTL) ESD Protection (1) Human body model — ±15kV (air-gap discharge) & ±8kV (contact discharge) (2) Core chipset —... -
Page 20: Contacting Tech Support
15. WARRANTY 2-Year Limited Warranty Binary™ products have a 2-Year Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products that have been abused, modified, or disassembled. Products to be repaired under this warranty must be returned to a designated service center with an assigned return authorization (RA) number.
