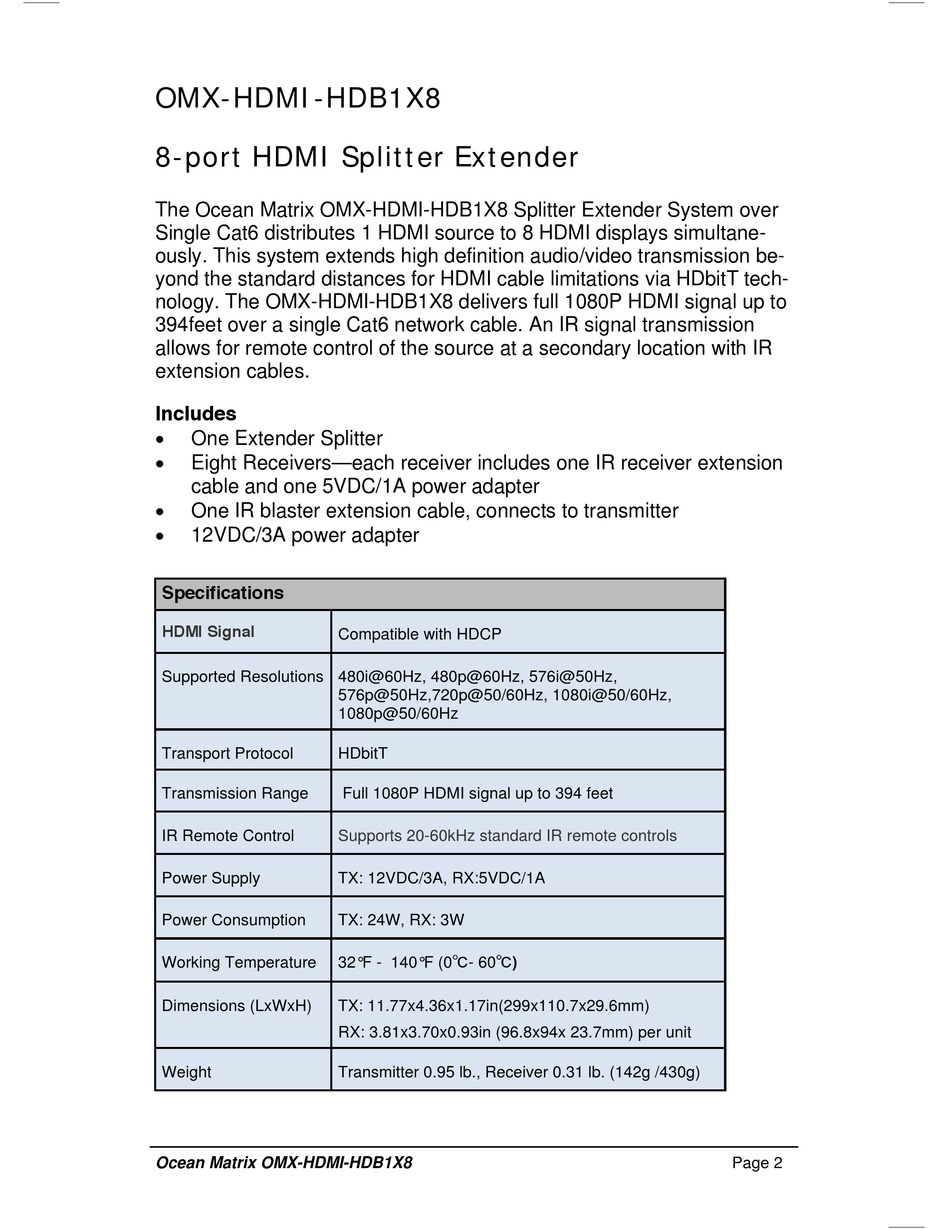

OMX-HDMI-HDB1X8
8-port HDMI Splitter Extender
The Ocean Matrix OMX-HDMI-HDB1X8 Splitter Extender System over
Single Cat6 distributes 1 HDMI source to 8 HDMI displays simultane-
ously. This system extends high definition audio/video transmission be-
yond the standard distances for HDMI cable limitations via HDbitT tech-
nology. The OMX-HDMI-HDB1X8 delivers full 1080P HDMI signal up to
394feet over a single Cat6 network cable. An IR signal transmission
allows for remote control of the source at a secondary location with IR
extension cables.
Includes

One Extender Splitter

Eight Receivers—each receiver includes one IR receiver extension
cable and one 5VDC/1A power adapter

One IR blaster extension cable, connects to transmitter

12VDC/3A power adapter
Specifications
HDMI Signal
Supported Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz,
Transport Protocol
Transmission Range
IR Remote Control
Power Supply
Power Consumption
Working Temperature
Dimensions (LxWxH)
Weight
Ocean Matrix OMX-HDMI-HDB1X8
Compatible with HDCP
576p@50Hz,720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
HDbitT
Full 1080P HDMI signal up to 394 feet
Supports 20-60kHz standard IR remote controls
TX: 12VDC/3A, RX:5VDC/1A
TX: 24W, RX: 3W
32°F - 140°F (0℃- 60℃)
TX: 11.77x4.36x1.17in(299x110.7x29.6mm)
RX: 3.81x3.70x0.93in (96.8x94x 23.7mm) per unit
Transmitter 0.95 lb., Receiver 0.31 lb. (142g /430g)
