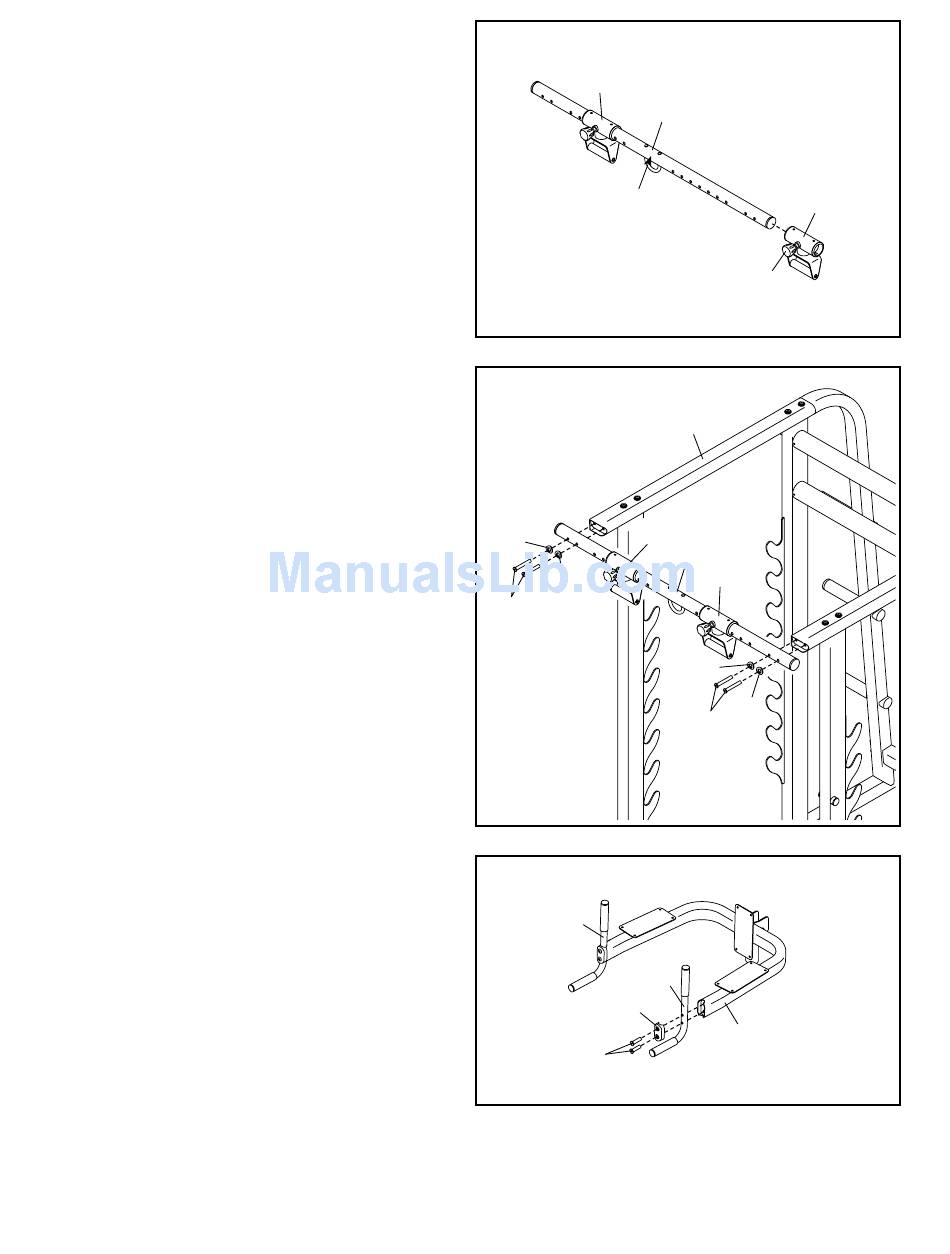

10. Orient the Pull-up Crossbar (7) and the two
Carriages (15) as shown.
Loosen and pull the Adjustment Knob (24) on
one of the Carriages (15), and slide the Carriage
onto the Pull-up Crossbar (7). Then, release
the Adjustment Knob into one of the adjustment
holes in the Pull-up Crossbar, and tighten the
Adjustment Knob.
Slide the other Carriage (15) onto the Pull-up
Crossbar (7) in the same way.
11. Orient the Pull-up Crossbar (7) and the
Carriages (15) as shown, and attach the Pull-up
Crossbar to the Top Frames (6) with four M10
x 70mm Screws (47) and four M10 Curved
Washers (46).
See steps 1––3, 5, and 7––9. Tighten all of the
Screws (39, 43, 42, and 40) used in these steps.
12. Attach a Dip Handle (13) to the Dip Arm (10) with
two M10 x 50mm Screws (45) and a Dip Arm
Cap (36).
Attach the other Dip Handle (13) in the same
way.
10
15
Warning
Decal
11
46
46
47
12
13
36
45
11
7
15
24
6
15
7
15
46
46
47
13
10
