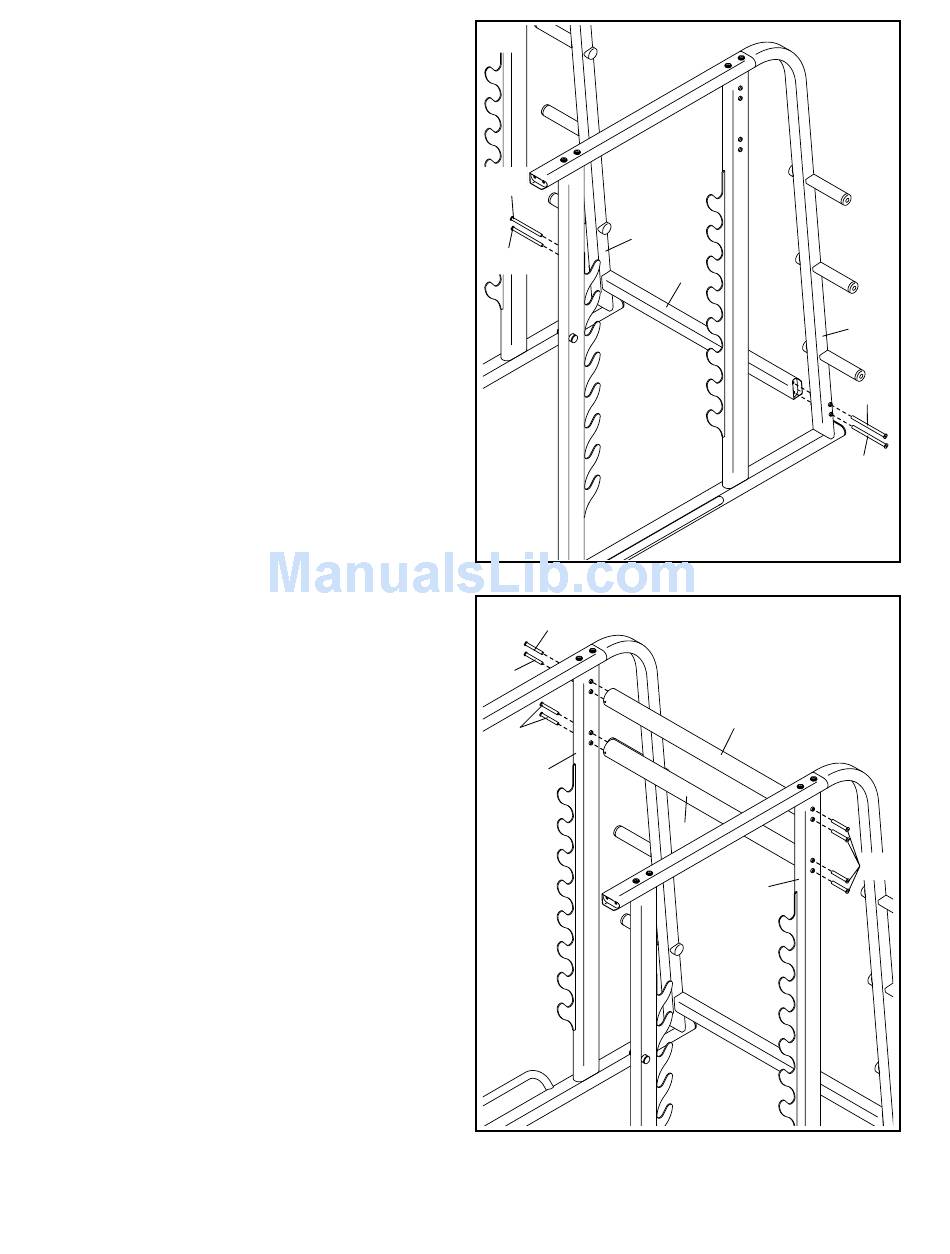

8. Attach the Lower Crossbar (11) between the
Right Rear Frame (8) and the Left Rear Frame
(9) with four M10 x 130mm Screws (40); do not
tighten the Screws yet.
9. Attach one of the two Upper Crossbars (14)
between the two Center Uprights (5, 49) with
four M10 x 80mm Screws (42); do not tighten
the Screws yet.
Attach the other Upper Crossbar (14)
between the Center Uprights (5, 49) in the
same way.
8
40
8
40
9
42
42
42
5
10
11
9
40
14
14
49
40
42
