2. MECHANISM ASSY

2-1. Pick-Up Unit

A. Release 1 screw (C).
B. Remove the Loading Belt and Loading Gear.
C. Release 1 screw (D).
D. Remove the stopper (R).
E. Release 1 screw (E).
F. Remove the Elevator Cover.
G. Release 2 screws (F).
H. Remove the Pick-Up Unit in the direction of
arrow (5).
* NOTE
When reassembling the Timing Gear and the
Elevator gear, align the mark(
with the mark(o) of Elevator Gear.
Loading
Belt
(E)
Elevator
Cover
Timing
Gear
Elevator Gear
6
) of Timing Gear
Loading
(C)
Stopper(R)
(D)
(F)
(F)
Pick-UP
Mechanism
(5)

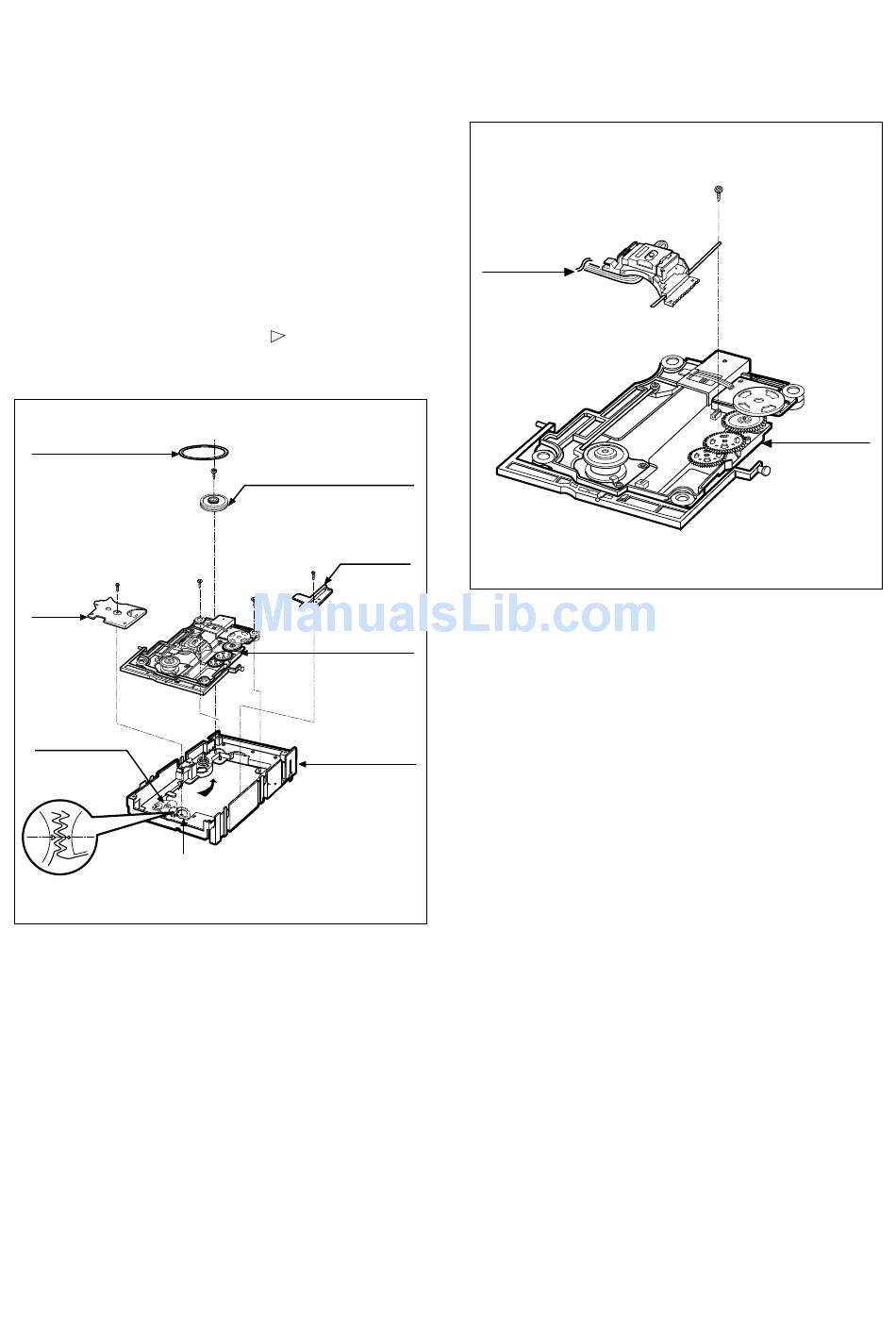

Fig. 2-1
2-2. Pick-Up
A. Release 1 screw (G).
B. Remove the Pick-Up
Pick-Up
Gear
Unit
Assy
(G)
Fig. 2-2
Pick-Up
Unit
