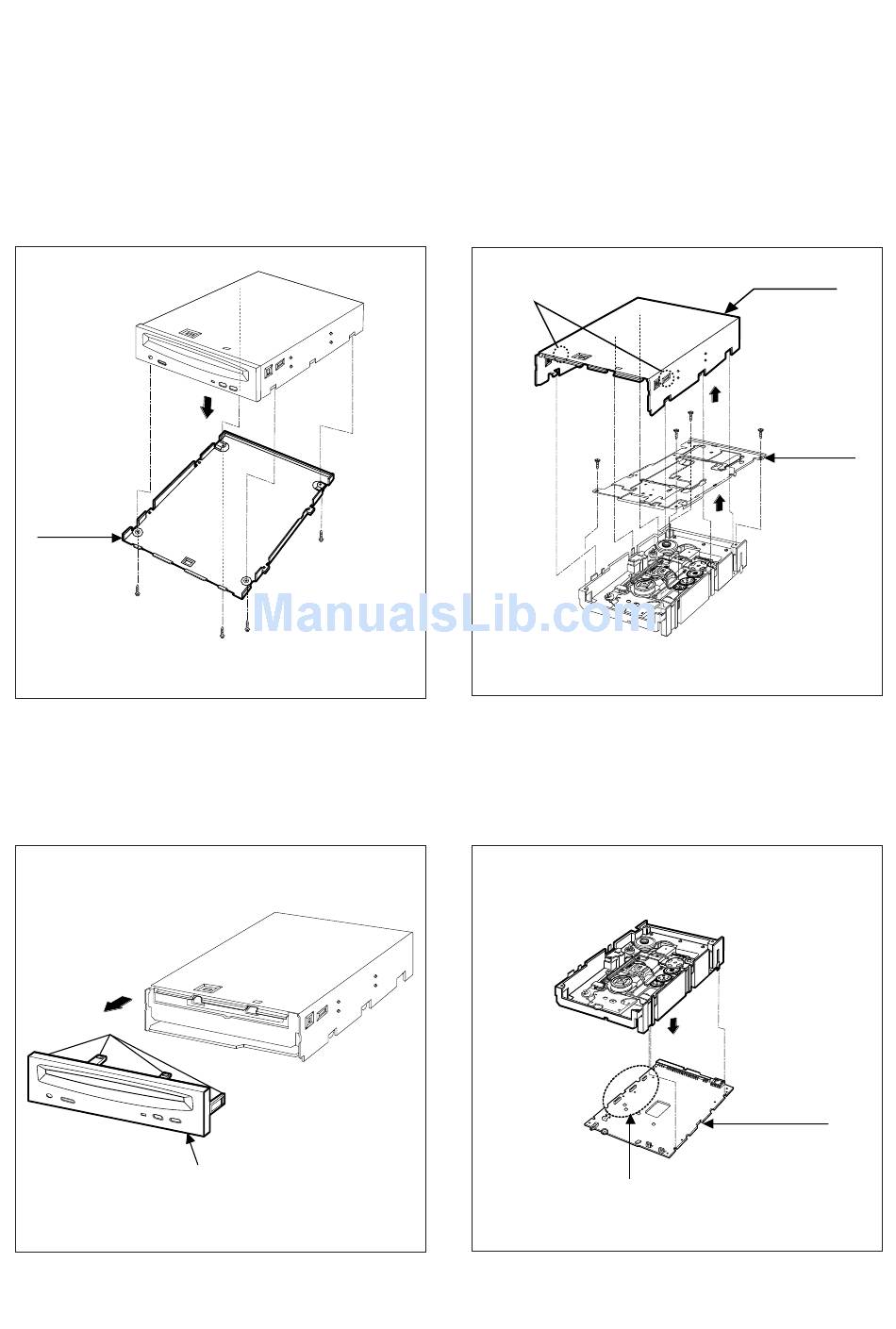

1. CABINET and CIRCUIT BOARD
DISASSEMBLY
1-1. Bottom Chassis
A. Release 4 screws (A) and remove the Bottom
Chassis in the direction of arrow (1).
(See Fig. 1-1)
(1)
Bottom
Chassis
(A)
1-2. Front Bezel Assy
A. Release 4 stoppers and remove the Front Bezel
Assy.
Stoppers
DISASSEMBLY
(A)
(A) (A)
Fig. 1-1
Front Bezel Assy
Fig. 1-2
1-3. Top Case and Chassis Mecha
A. Release 2 hooks (a) and remove the Top Case in
the direction of arrow (2).
B. Release 4 screws (B) and remove the Chassis
Mecha in the direction of arrow (3)
Hooks (a)
(B)
1-4. Main Circuit Board.
A. Remove the Main Circuit Board in the direction of
arrow (4).
B. At this time, be careful not to damage the 4
connectors of the Main Circuit Board.
4 Connectors
Top Case
(B)
(2)
(B)
(B)
Chassis
Mecha
(3)
Fig. 1-3
(4)
Main
Circuit Board
Fig. 1-4
5
