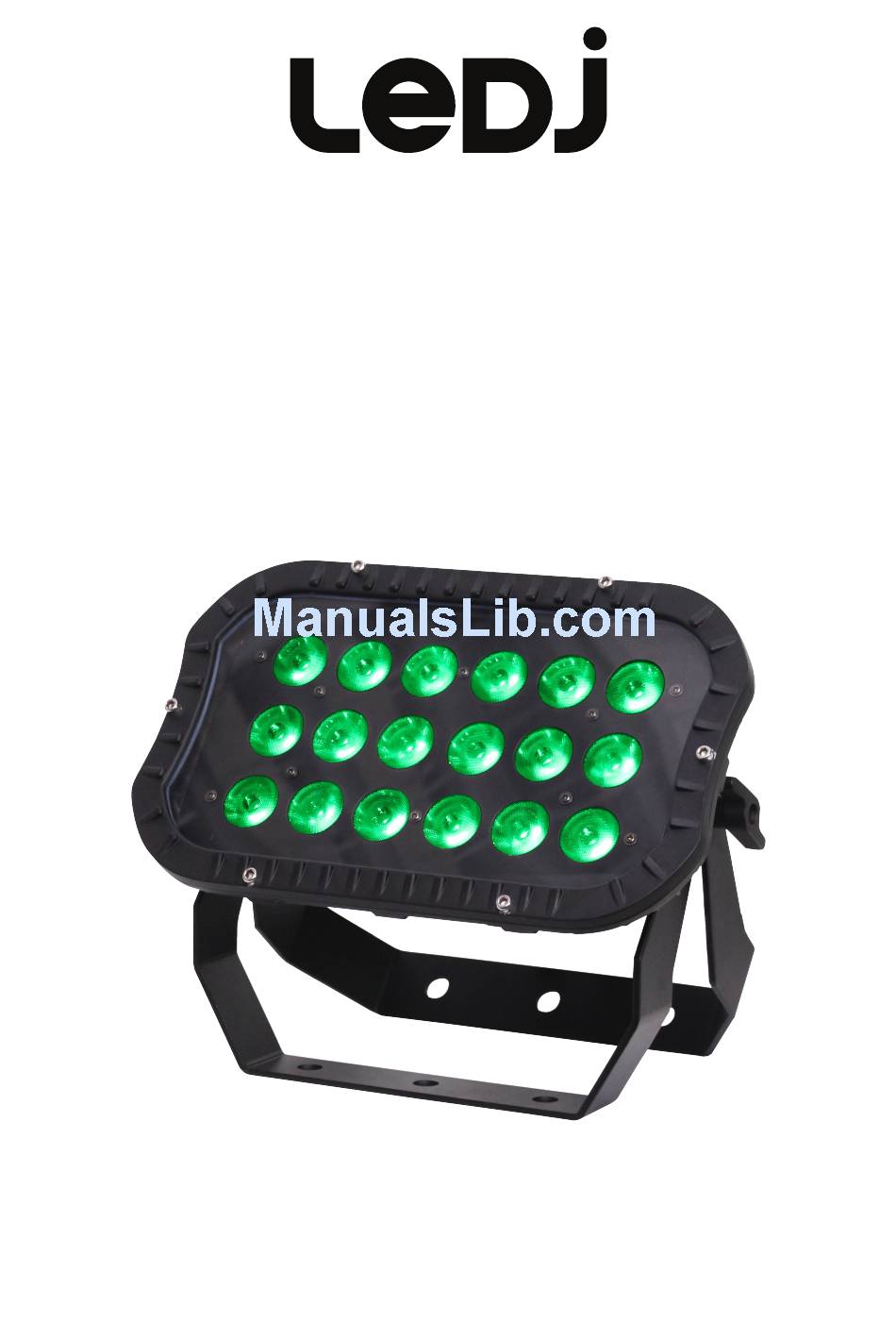

- Page 1 Spectra Flood 18T3 Exterior Fixture User Manual Order code: LEDJ256...
-
Page 2: Safety Advice
• Always disconnect the power from the mains when product must be installed by a qualified technician in equipment is not in use or before cleaning! Only handle accordance with local territory regulations. The safety of the power-cable by the plug. Never pull out the plug by the installation is the responsibility of the installer. The pulling the power-cable. fixture presents risks of severe injury or death due to fire • Make sure that the available mains supply voltage is hazards, electric shock and falls. between 100~240V AC, 50/60Hz. • Warning! Risk Group 2 LED product according to • Make sure that the power cable is never crimped or EN 62471. Do not view the light output with optical damaged. Check the equipment and the power cable instruments or any device that may concentrate the beam. periodically. • WARRANTY: One year from date of purchase. • If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Spectra Flood 18T3 User Manual... - Page 3 • 7.8kHz refresh rate • Optional LEDJ 1m Spectra • DMX channels: 1/3/4/5 Series Interior to Exterior DMX or 6 selectable connection cable available • Static colour, colour fade, (Order code: LEDJ91) colour change, colour mix, auto and master/slave modes • 0 - 100% dimming and variable strobe 40° - Lux 6270 2150 1024 Specifications Spectra Par 18T3 Power consumption Power supply 100~240V, 50/60Hz 40° Dimensions 325 x 225 x 192mm Weight 4.5kg Order code LEDJ256 225mm 192mm www.prolight.co.uk Spectra Flood 18T3 User Manual...
-
Page 4: Technical Specifications
Technical specifications www.prolight.co.uk 01 - Hanging bracket 04 - Function buttons 08 - IP rated DMX output In the box: 02 - Hanging bracket 05 - IP rated power input 09 - Safety eye 1 x fixture, 1 x power cable adjustment knobs 06 - IP rated power output & 1 x user manual 03 - LED display 07 - IP rated DMX input www.prolight.co.uk Spectra Flood 18T3 User Manual... - Page 5 (0-100%) 069-091 Cyan 000-255 Strobe 092-114 Yellow Channel Value Function (slow-fast) 115-137 Orange 000-255 Red (0-100%) 138-160 Pink 000-255 Green (0-100%) 161-183 Purple 000-255 Blue (0-100%) 184-206 Dark Blue 000-255 Master dimmer 207-229 Pale Green (0-100%) 230-252 White 253-255 Warm White www.prolight.co.uk Spectra Flood 18T3 User Manual...
- Page 6 (0-255 144-152 Magenta slow-fast) 153-161 Pink when 162-170 Light Pink channel 6 is set 171-179 Pastel Blue between 180-188 Pastel Green 026-255 189-197 Pastel Yellow 198-206 Pastel Purple 207-215 Pastel Cyan 216-224 Turquoise 225-233 Pastel Pink 234-242 Neutral White 243-251 Warm White 252-255 Cool White www.prolight.co.uk Spectra Flood 18T3 User Manual...
-
Page 7: Master/Slave Mode
Colour mix mode r. 0 00~r. 2 55 R g. 0 00~g. 2 55 G The default setting for this fixture is Master. b. 0 00~b. 2 55 B To set the slave unit, press the “MODE” button on the rear Built-in programs Pr01~Pr10 SLav of the master unit to show on the LED display. Auto mode Auto Master/slave mode The unit is now in Slave mode. SLav DMX mode 1CH, 3CH, 4CH, To exit out of any of the above options, press the “MODE” button. 5CH, 6CH Address setting d001~d512 www.prolight.co.uk Spectra Flood 18T3 User Manual... -
Page 8: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: LEDJ 1m Interior - LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior Exterior DMX cable DMX cable DMX cable DMX cable DMX cable Order code: LEDJ91 Order code: LEDJ141 Order code: LEDJ142 Order code: LEDJ143 Order code: LEDJ144 LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior LEDJ Spectra Series Power cable Power cable Power cable Power cable End Cap Set Order code: LEDJ146 Order code: LEDJ147 Order code: LEDJ148 Order code: LEDJ149 Order code: LEDJ93 www.prolight.co.uk Spectra Flood 18T3 User Manual... -
Page 9: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Flood 18T3 User Manual... -
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Flood 18T3 User Manual... - Page 11 Spectra Flood 18T3 User Manual...
