  • Page 1 Spectra Par 12T3 Exterior Fixture User Manual Order code: LEDJ269...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Spectra Par 12T3 User Manual...

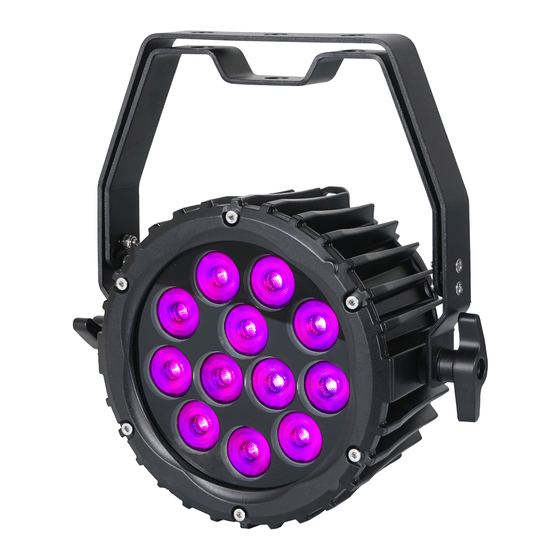

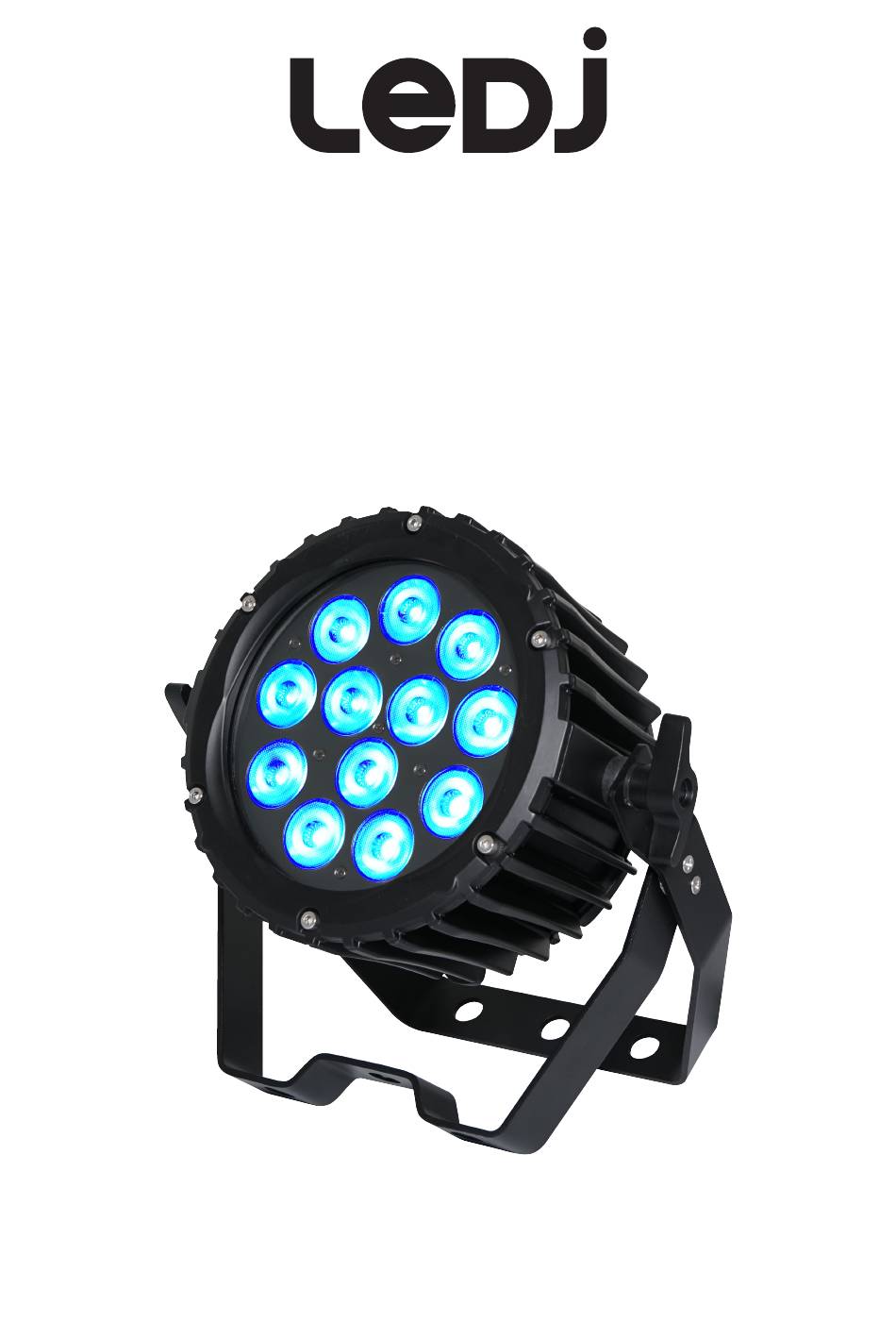

  • Page 3 Spectra Par 12T3 IP65 The exterior Spectra Par 12T3 features 12 x 3W tri-colour LEDs, delivering a smooth wash of colour, ranging from intense, rich saturated hues through to pastel shades. Controllable via the onboard 4 button LED menu system for auto, static colour or master/slave modes, with the option of DMX control for larger installations.
  • Page 4 000-255 Green (0-100%) 207-229 Pale Green 000-255 Blue (0-100%) 230-252 White 000-255 Master dimmer (0-100%) 253-255 Warm White 000-255 Strobe (slow-fast) 3 channel mode: Channel Value Function 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) www.prolight.co.uk Spectra Par 12T3 User Manual...
  • Page 5 6 is set 171-179 Pastel Blue between 180-188 Pastel Green 026-255 189-197 Pastel Yellow 198-206 Pastel Purple 207-215 Pastel Cyan 216-224 Turquoise 225-233 Pastel Pink 234-242 Neutral White 243-251 Warm White 252-255 Cool White www.prolight.co.uk Spectra Par 12T3 User Manual...

  • Page 6: Master/Slave Mode

    LED display. Now press the “SETUP” button and use the “UP” and “DOWN” buttons to select . Now press the “SETUP” button. The unit will now display the software version. www.prolight.co.uk Spectra Par 12T3 User Manual...
  • Page 7 Pr. 0 6 7 colour fade Pr. 0 7 3 colour fade Pr. 0 8 Red fade in/out Pr. 0 9 Green fade in/out Pr. 1 0 Blue fade in/out SP00~SP99 (speed) F500~F599 (flash) www.prolight.co.uk Spectra Par 12T3 User Manual...

  • Page 8: Dmx Setup

    LEDJ 5m Exterior LEDJ 10m Exterior LEDJ Spectra Series Power cable Power cable Power cable Power cable End Cap Set Order code: LEDJ146 Order code: LEDJ147 Order code: LEDJ148 Order code: LEDJ149 Order code: LEDJ93 www.prolight.co.uk Spectra Par 12T3 User Manual...

  • Page 9: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Par 12T3 User Manual...
  • Page 10 Please note: Caution should be used when power linking other fixtures to the Spectra Par 12T3 as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 11: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Par 12T3 User Manual...
