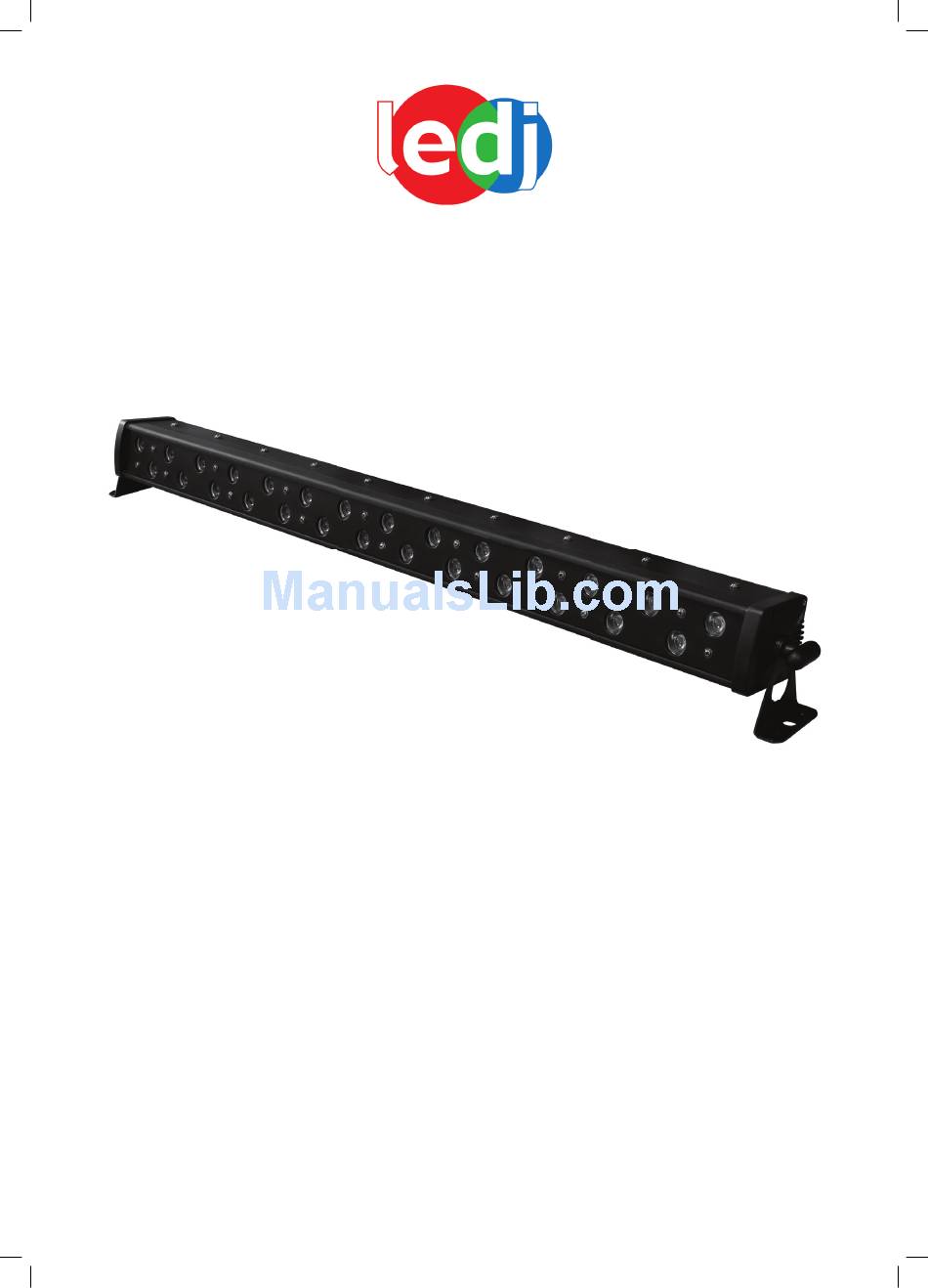

- Page 1 Pro RGB Spectra Batten 1.0M (Order code: LEDJ75B) User Manual...
- Page 2 LEDJ Pro RGB Spectra Batten Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 LEDJ Pro RGB Spectra Batten Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 “DOWN” button is to decrease the value of the current setting. Built-in programmes mode: With the LEDJ Pro RGB Spectra Batten, you can select any one of seven different built-in programmes. First press the “MODE” button to show “P---” in the LED display. Then by using the “UP” and “DOWN”...
- Page 5 DMX Address Setting Static Colour selection mode To activate the the static colour selection mode on the Pro RGB Spectra Batten, press the “MODE” button to show “C---” in the LED screen. Now by using the “UP” and “DOWN” buttons choose one of the following 4 options: 1, “C100”...
- Page 6 LEDJ Pro RGB Spectra Batten DMX values Sound Active Mode: To activate the Sound Active Mode, press the “MODE” button to select “SU00”, now the sound mode is activated it will run one step at a time, you can adjust the sensitivity by using the “UP”...
- Page 7 LEDJ Pro RGB Spectra Batten DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 8 LEDJ Pro RGB Spectra Batten Specifications Spectra Batten Specifications: DMX channels: 12 LEDS: 27 Ultra Bright 1W LEDs (R: 9, G: 9, B: 9) Beam angle: 30 degrees 3 pin female XLR socket and 3 pin male XLR socket IEC power in and power out sockets...
