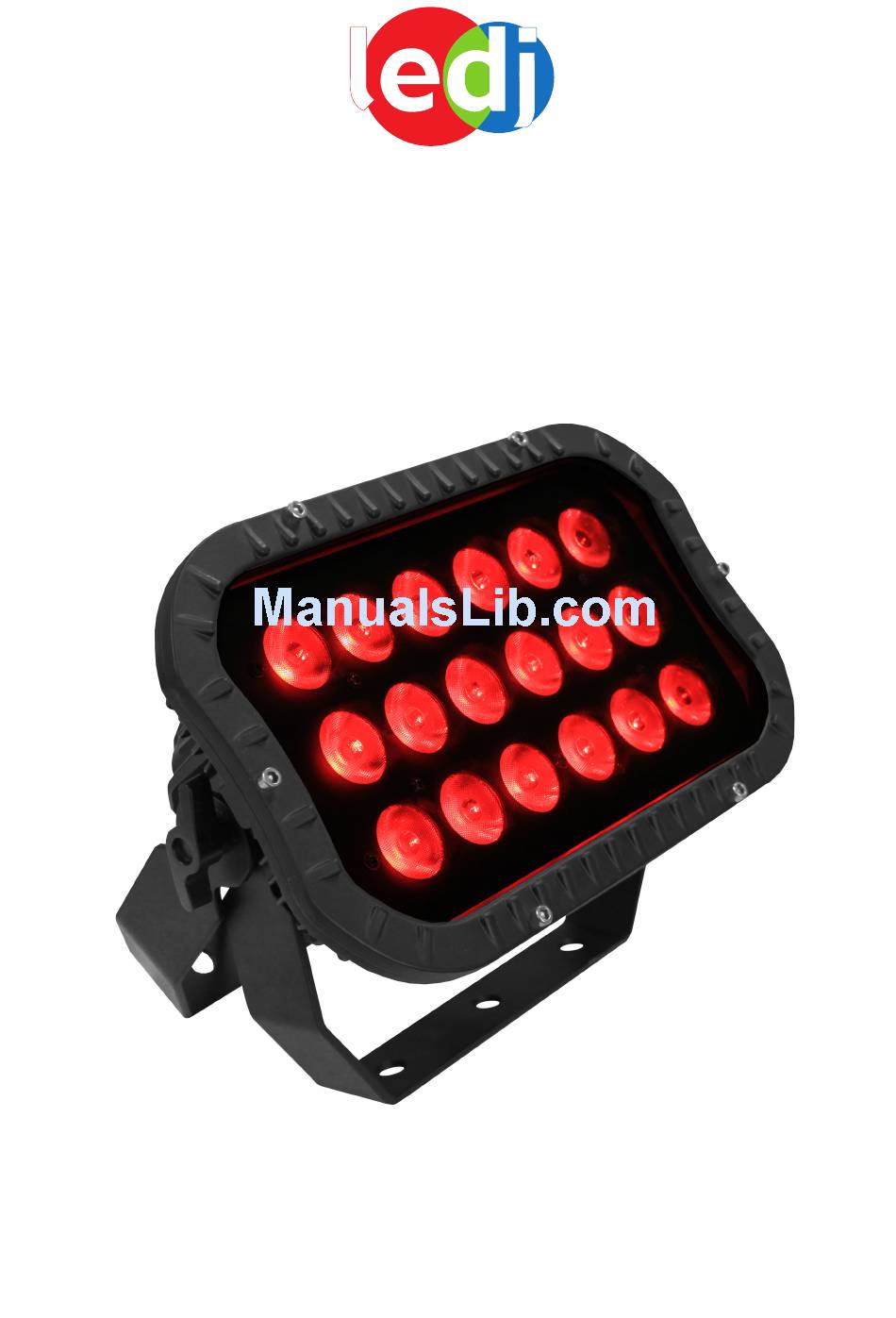

- Page 1 SPECTRA FLOOD 18T3 (IP 66) Order code: LEDJ256 USER MANUAL...
-
Page 2: Safety Instructions
Spectra Flood 18T3 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 100~240V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent... -
Page 3: Operating Determinations
Spectra Flood 18T3 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 7, LED display 8, Function buttons 9, Safety bond point Setup Operating Instructions The Spectra Flood 18T3 Exterior is a DMX-512 controllable unit made up of high efficiency RGB LEDs and will operate in stand alone, master/slave or DMX control modes.
- Page 5 If you set r, G and B to 000, the Spectra Flood 18T3 will have no LEDs on (blackout). If you set r to 255 and G and B to 000, the Spectra Flood 18T3 will be 100% Red. Built-in programmes: To activate the units built-in programmes, press the “MODE”...
- Page 6 Spectra Flood 18T3 DMX Programme Charts 1 channel mode DMX chart Value Channel Function No function 1-22 23-45 Green 46-68 Blue 69-91 Cyan 92-114 Yellow 115-137 Orange 138-160 Pink 161-183 Purple 184-206 Dark Blue 207-229 Pale Green 230-252 White 253-255...
- Page 7 Spectra Flood 18T3 DMX Programme Charts 5 channel mode DMX chart Value Channel Function 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 Master dimmer 0-100% 0-255 Strobe (slow to fast) 6 channel mode DMX chart...
- Page 8 Spectra Flood 18T3 DMX Programme Charts 6 channel mode DMX chart continued..
- Page 9 DATA Cable (DMX cable) requirements (for DMX operation): • The Spectra Flood 18T3 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output.
-
Page 10: Power Linking
PAT test or equivalent electrical safety test. Power linking: • The Spectra Flood 18T3 supports power linking. You can link up to 8 products at 120 VAC or 16 at 240 VAC. •This product supplied with a fixed power input cord. This product is not suppled with a power link... -
Page 11: Troubleshooting
Spectra Flood 18T3 Trouble Shooting Problem Probable cause Solution Check that the power is switched No power to the fixture. on and cables are connected. One or more fixtures are completely dead. Contact your Prolight dealer. Internal fuse has blown. - Page 12 Spectra Flood 18T3 Trouble Shooting Problem Probable cause Solution Contact a technician for servicing Fixture blacks out suddenly. The fixture is resetting the effect. if the problem persists. Allow the fixture to cool down. Fixture is too hot. Make sure that all air vents are not blocked.
- Page 13 Spectra Flood 18T3 Notes Notes:...
- Page 14 Spectra Flood 18T3 Notes Notes:...
- Page 15 Spectra Flood 18T3 Notes Notes:...
