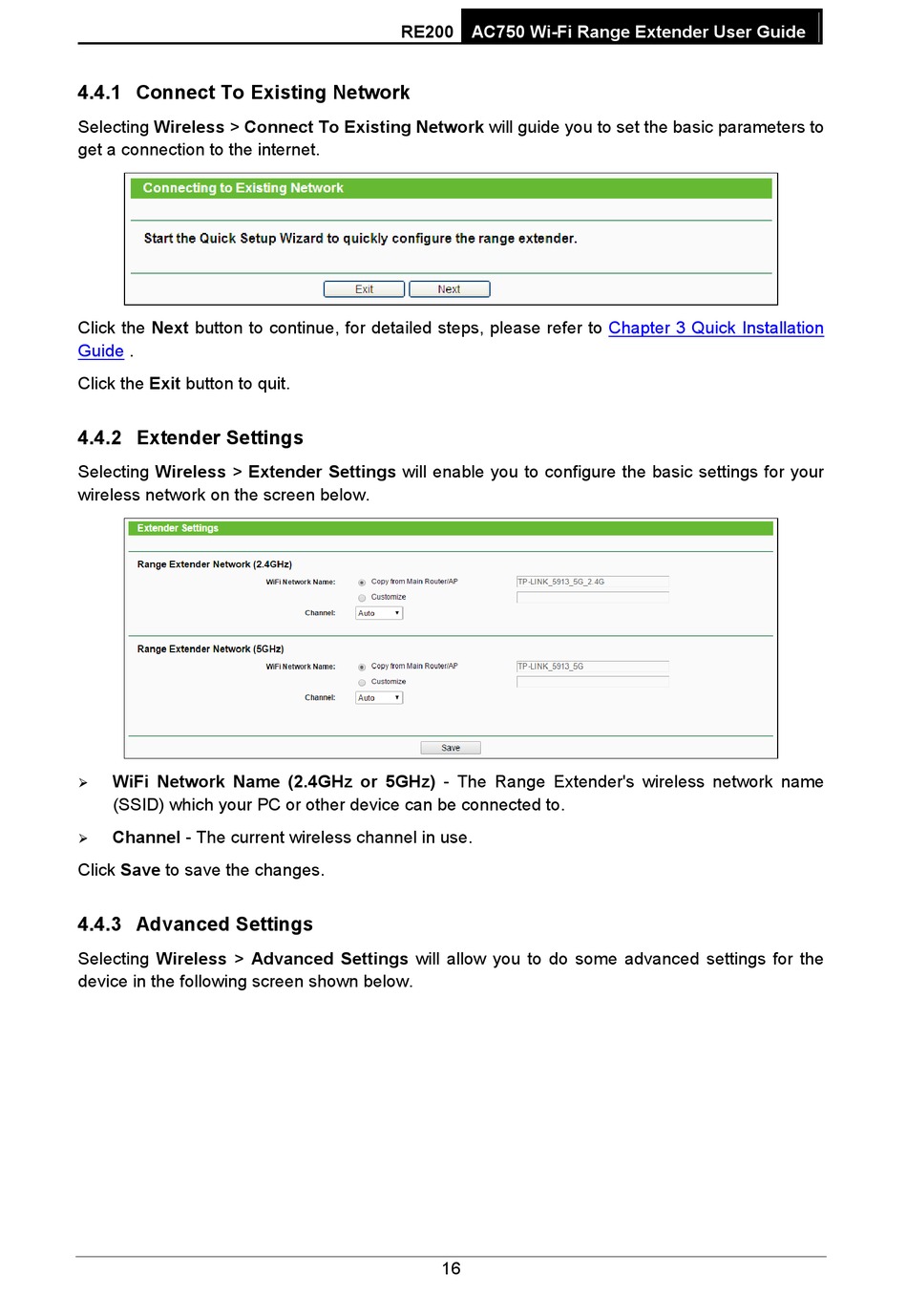

4.4.1 Connect To Existing Network

Selecting Wireless > Connect To Existing Network will guide you to set the basic parameters to
get a connection to the internet.
Click the Next button to continue, for detailed steps, please refer to
Guide .
Click the Exit button to quit.

4.4.2 Extender Settings

Selecting Wireless > Extender Settings will enable you to configure the basic settings for your
wireless network on the screen below.
WiFi Network Name (2.4GHz or 5GHz) - The Range Extender's wireless network name

(SSID) which your PC or other device can be connected to.
Channel - The current wireless channel in use.

Click Save to save the changes.

4.4.3 Advanced Settings

Selecting Wireless > Advanced Settings will allow you to do some advanced settings for the
device in the following screen shown below.
