TP-Link RE200 User Manual page 13

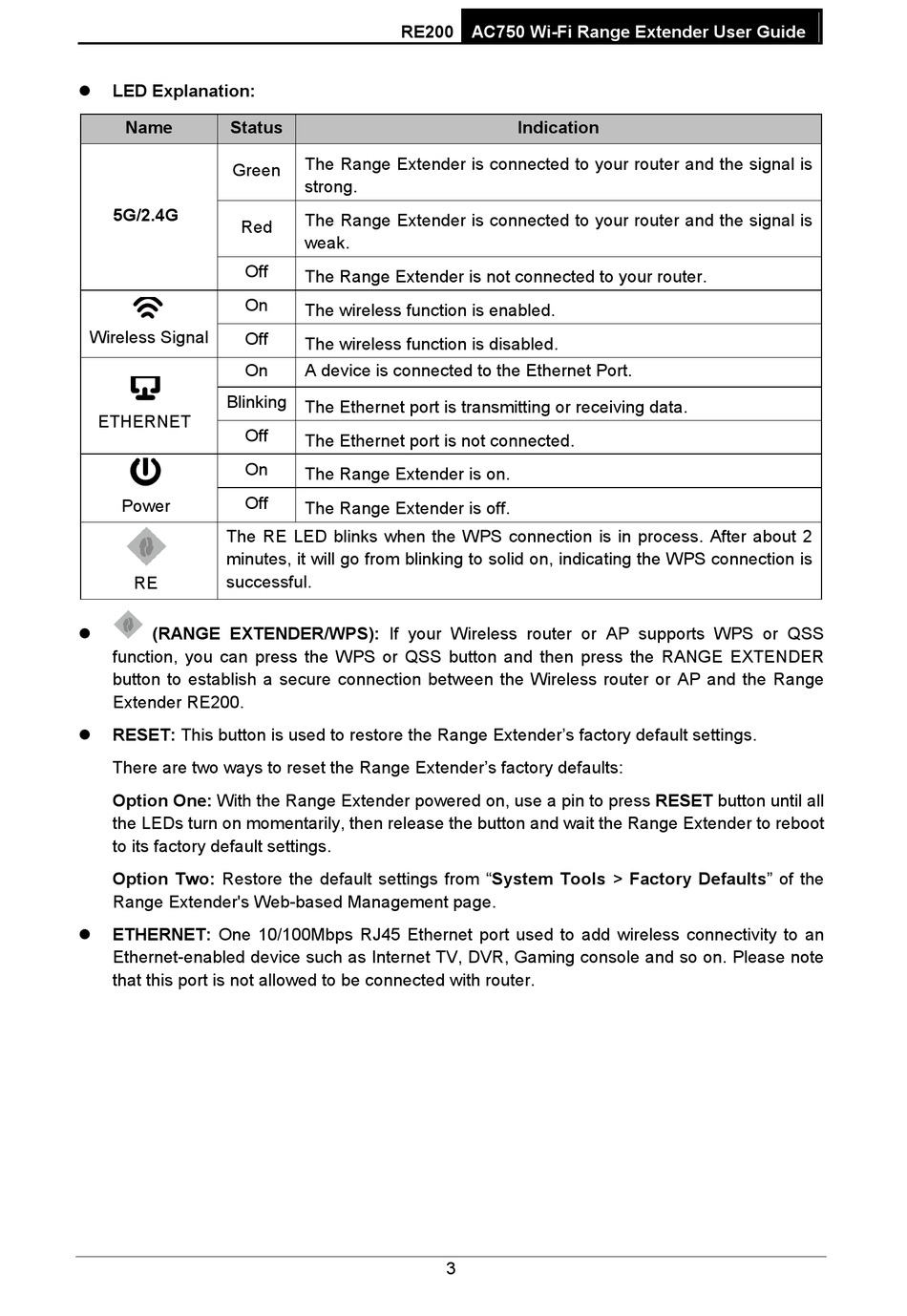

LED Explanation:

Name Status
Green
5G/2.4G
Red
Off
On
Wireless Signal
Off
On
Blinking The Ethernet port is transmitting or receiving data.
ETHERNET
Off
On
Off
Power
The RE LED blinks when the WPS connection is in process. After about 2
minutes, it will go from blinking to solid on, indicating the WPS connection is
successful.
RE
(RANGE EXTENDER/WPS): If your Wireless router or AP supports WPS or QSS

function, you can press the WPS or QSS button and then press the RANGE EXTENDER
button to establish a secure connection between the Wireless router or AP and the Range
Extender RE200.
RESET: This button is used to restore the Range Extender's factory default settings.

There are two ways to reset the Range Extender's factory defaults:
Option One: With the Range Extender powered on, use a pin to press RESET button until all
the LEDs turn on momentarily, then release the button and wait the Range Extender to reboot
to its factory default settings.
Option Two: Restore the default settings from "System Tools > Factory Defaults" of the
Range Extender's Web-based Management page.
ETHERNET: One 10/100Mbps RJ45 Ethernet port used to add wireless connectivity to an

Ethernet-enabled device such as Internet TV, DVR, Gaming console and so on. Please note
that this port is not allowed to be connected with router.
RE200 AC750 Wi-Fi Range Extender User Guide
The Range Extender is connected to your router and the signal is
strong.
The Range Extender is connected to your router and the signal is
weak.
The Range Extender is not connected to your router.
The wireless function is enabled.
The wireless function is disabled.
A device is connected to the Ethernet Port.
The Ethernet port is not connected.
The Range Extender is on.
The Range Extender is off.
3
Indication
