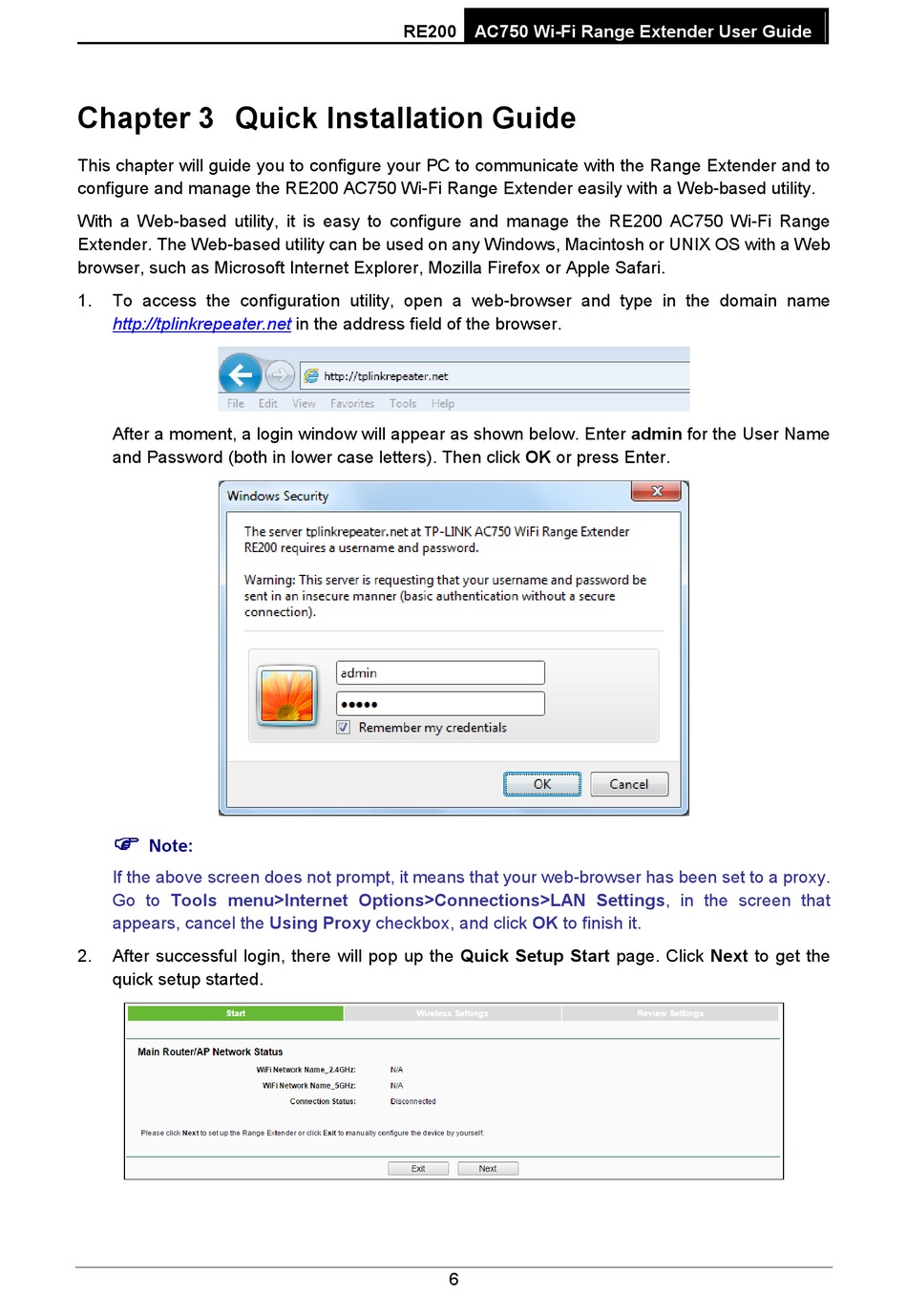

Chapter 3 Quick Installation Guide - TP-Link RE200 User Manual

Chapter 3 Quick Installation Guide

This chapter will guide you to configure your PC to communicate with the Range Extender and to
configure and manage the RE200 AC750 Wi-Fi Range Extender easily with a Web-based utility.
With a Web-based utility, it is easy to configure and manage the RE200 AC750 Wi-Fi Range
Extender. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web
browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
1. To access the configuration utility, open a web-browser and type in the domain name
http://tplinkrepeater.net
After a moment, a login window will appear as shown below. Enter admin for the User Name
and Password (both in lower case letters). Then click OK or press Enter.

Note:
If the above screen does not prompt, it means that your web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that
appears, cancel the Using Proxy checkbox, and click OK to finish it.
2. After successful login, there will pop up the Quick Setup Start page. Click Next to get the
quick setup started.
RE200
in the address field of the browser.
6
AC750 Wi-Fi Range Extender User Guide
