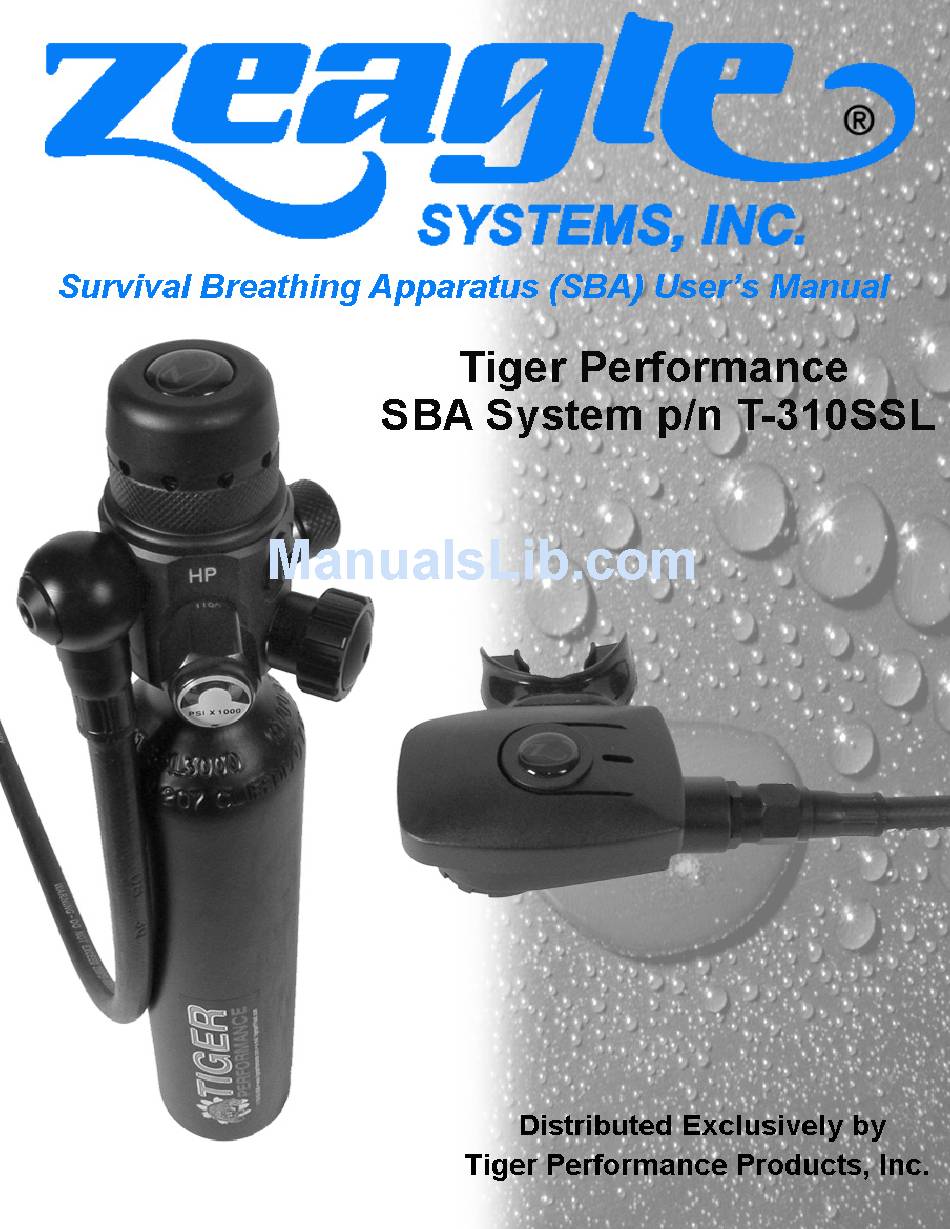

Zeagle Tiger performance T-310SSL User Manual

Sba system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tiger performance T-310SSL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zeagle Tiger performance T-310SSL

Summary of Contents for Zeagle Tiger performance T-310SSL

  • Page 2: Table Of Contents

    Pages Table of Contents: Introduction – Safety Warnings Serial Number Location Using and Filling the SBA 5-11 Cylinder Information 2nd Stage Pre-Use Check Post-Use Care Maintenance Specifications Service Record Notes...

  • Page 3: Introduction - Safety Warnings

    COPYRIGHT: This manual is copyrighted with all rights reserved. It may not be copied, translated or reproduced in any physical or electronic medium without the consent of Zeagle Systems, Inc. This owner’s manual uses signal words recommended by the American National Standards Institute (see ANSI Z535.4) to des- ignate levels of hazard seriousness.

  • Page 4: Serial Number Location

    Congratulations Your new Zeagle/Tiger SBA (Survival Breathing Apparatus) has been designed and manufactured to the highest possible standards of performance and reliability. With the reasonable care outlined in this manual it will provide you with many years of diving enjoyment.
  • Page 5 CAUTION SBA products are subject to conditions of extreme wear and corro- sion. Inspection and maintenance are required to ensure continued performance. Tiger Performance recommends that you have your regulator inspected and serviced once a year on the anniversary date of its purchase.

  • Page 6: Nitrox Use

    CAUTION 1. The high-pressure outlets (HP Ports) are distinctly larger than the low-pressure outlets. Only devices with fittings, hoses and compo- nents designed for the full tank pressure that the regulator will be subjected to, such as Pressure Gauges, are to be installed in these ports.

  • Page 7: Using And Filling The Sba

    DANGER Using nitrox (i.e., gas mixtures containing oxygen in excess of 21%) requires special training and procedures. Improper use of nitrox can lead to personal injury, convulsions, drowning, and death. DANGER Use of gas mixtures containing oxygen in excess of 40% with this regu- lator, can lead to fires and explosions, causing severe personal injury and death.
  • Page 8 Tiger Performance SBA (continued) Fig. 2 During storage, when the valve hand wheel (Fig. 2) is turned off (clockwise), tank pressure is applied to the backside of the safety relief burst disc, but not the HP (high pressure) gauge port or the regulator section of the SBA. When breathing air is needed or a reading of tank pressure using the HP gauge is required, the valve hand wheel is turned in a counter-clockwise direction until it’s fully open.
  • Page 9 Filling the Tiger Performance SBA WARNING To ensure a proper fill and to avoid damage to internal parts, the Valve Handwheel (see Fig. 2) MUST be opened BEFORE the supply valve on the Scuba Tank or Filling Whip is turned on. CAUTION To prevent internal cylinder corrosion, if any dirt or moisture is seen on the Fill Probe face (see Fig.
  • Page 10 Filling the Tiger Performance SBA using the 330-6052 Transfiller WARNING The Tiger SBA uses a 3000 psi (207 Bar) working pressure cylinder. If the source cylinder being used to transfer air has a working pressure above 3000 psi, the person doing the transfilling must monitor the Compact HP Port Pressure Gauge to make sure that the pressure fed into the SBA does not exceed 3000 psi at any time.
  • Page 11 Fig. 5 Attach the other end of the Transfiller to the Yoke Valve in a full Scuba Cylinder (Fig. 5). Fig. 6 Since the Valve Hand wheel on the SBA is fully open (Fig. 6) the HP pressure gauge on the SBA will now be showing the small cylinder’s pressure.
  • Page 12 Cap onto the male threads of the SBA’s Fill Probe. Close the Valve Hand wheel on the SBA. The fill using the Transfiller is now completed. A stream- ing video on the Zeagle website showing this procedure, can be accessed by clicking on the following link;...
  • Page 13 Filling the Tiger Performance SBA using the 330-FA52 Scuba Filling Whip Adapter If a Scuba air compressor is available, then the Filling Whip Adapter shown below would preferred method of filling the SBA. The 330-FA52-AA Filling Whip Adapter (Fig 8), is attached to the SBA in the same manner described earlier for the Transfiller.

  • Page 14: Cylinder Information

    Cylinder Information: The Tiger Performance SBA comes standard with a 9.25” (23.5 cm) long cylinder that when filled to its 3000 psi (207 BAR) rated pressure holds a volume of air which if allowed to exit the cylinder will expand to a volume of 2.0 cubic feet (56.6 Liters).

  • Page 15: 2Nd Stage

    320-RG6L SECOND STAGE FEATURES The Tiger Performance SBA compact second stage (Fig. 10) is a light yet affective device for delivering good control and airflow to the user. It’s simplicity of design ensure rugged reliable performance. Fig. 12 After the Valve Hand wheel on the 1st stage is turned on (Fig. 6), the 320-RG6L 2nd stage is held in the user’s mouth by inserting the mouthpiece shown in Fig 10 above.

  • Page 16: Pre-Use Check

    PRE-USE CHECK 1. Before using the Tiger Performance SBA, check to be sure that the black Fill Probe Cap is in place on the Fill Probe (see Fig. 2) Use without this Cap in place can result in water and contaminants being blown into the interior of the cylinder during filling, which in turn will cause future mechanical problems in the regulator and valve.

  • Page 17: Post-Use Care

    POST-USE CARE 1. After use, make sure the plastic cap on the Filling Probe is still in place. Periodically check the condition of the external O-ring on the Fill Probe. Ask your technician to install a new O-ring if it looks torn or cut. Neglect of these simple procedures is a major cause of corrosion and wear in regulators.

  • Page 18: Specifications

    A. FIRST STAGE REGULATOR & VALVE MODEL: Tiger Performance SBA (Survival Breathing Apparatus) FEATURES: Flow-by Piston, Valve-Regulator Combination screws directly into a cylinder. 1st STAGE WEIGHT .62 lb. (.28 kg.) 1.5 cu ft CYLINDER WEIGHT .70 lb. (.30 kg) 2.0 cu ft CYLINDER WEIGHT .86 lb.

  • Page 19: Service Record

    Service Record Date: Service: Date SBA first entered Service:...

  • Page 20: Notes

    Notes: The date of purchase and contact information for the source should be written on this page. A copy of the issue receipt could also be stapled to this page for future records.
  • Page 21 Zeagle Systems Inc. U.S.A. The T-310SSL SBA (Survival Breathing Apparatus) is distributed exclusively by Tiger Performance Products, Inc. 525 Bullis Road West Seneca, New York 14224 USA Office: 1-716-674-8545 Fax: 1-716-674-7497 Revision - Nov. 2011 p/n 175-1656 © 2011 Zeagle Systems, Inc.
