© Elcom, s. r. o.

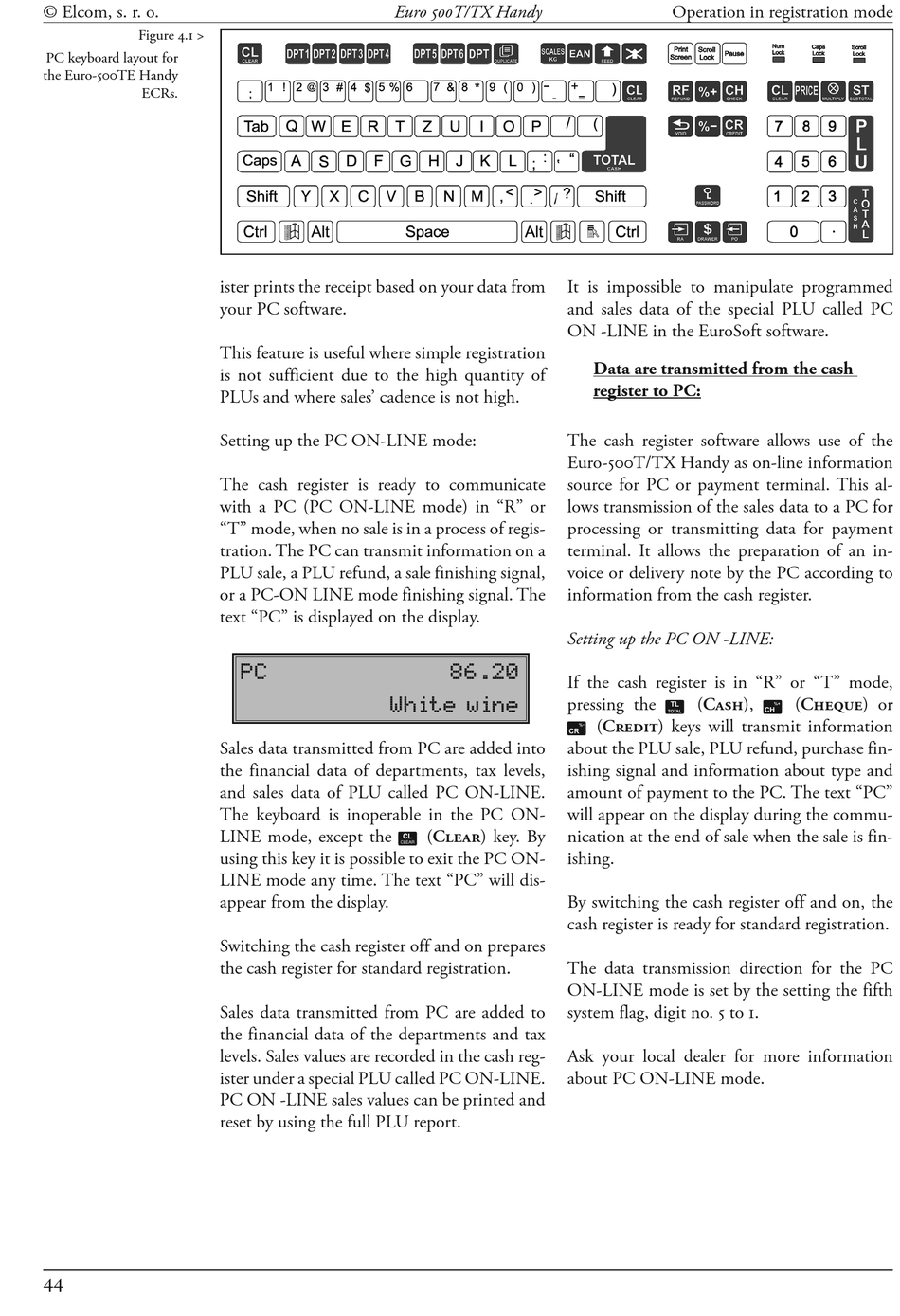

Figure 4.1 >
PC keyboard layout for
the Euro-500TE Handy
ECRs.
44
ister prints the receipt based on your data from
your PC software.
This feature is useful where simple registration
is not sufficient due to the high quantity of
PLUs and where sales' cadence is not high.
Setting up the PC ON-LINE mode:
The cash register is ready to communicate
with a PC (PC ON-LINE mode) in "R" or
"T" mode, when no sale is in a process of regis-
tration. The PC can transmit information on a
PLU sale, a PLU refund, a sale finishing signal,
or a PC-ON LINE mode finishing signal. The
text "PC" is displayed on the display.
PC
White wine
Sales data transmitted from PC are added into
the financial data of departments, tax levels,
and sales data of PLU called PC ON-LINE.
The keyboard is inoperable in the PC ON-
LINE mode, except the
using this key it is possible to exit the PC ON-
LINE mode any time. The text "PC" will dis-
appear from the display.
Switching the cash register off and on prepares
the cash register for standard registration.
Sales data transmitted from PC are added to
the financial data of the departments and tax
levels. Sales values are recorded in the cash reg-
ister under a special PLU called PC ON-LINE.
PC ON -LINE sales values can be printed and
reset by using the full PLU report.
Euro 500T/TX Handy
86.20
(Clear) key. By
F
Operation in registration mode
It is impossible to manipulate programmed
and sales data of the special PLU called PC
ON -LINE in the EuroSoft software.
Data are transmitted from the cash
register to PC:
The cash register software allows use of the
Euro-500T/TX Handy as on-line information
source for PC or payment terminal. This al-
lows transmission of the sales data to a PC for
processing or transmitting data for payment
terminal. It allows the preparation of an in-
voice or delivery note by the PC according to
information from the cash register.
Setting up the PC ON -LINE:
If the cash register is in "R" or "T" mode,
pressing the (Cash),
E
(Credit) keys will transmit information
B
about the PLU sale, PLU refund, purchase fin-
ishing signal and information about type and
amount of payment to the PC. The text "PC"
will appear on the display during the commu-
nication at the end of sale when the sale is fin-
ishing.
By switching the cash register off and on, the
cash register is ready for standard registration.
The data transmission direction for the PC
ON-LINE mode is set by the setting the fifth
system flag, digit no. 5 to 1.
Ask your local dealer for more information
about PC ON-LINE mode.
(Cheque) or
C
