Cash register characteristics
minal (PC– 2), electronic scales and scanner
(SCAN./SCALE–3), cash drawer (DRAW–4),
external keyboard (KEYB.–5).

The Euro-500T Handy/Euro-500TX Handy keyboard

The keyboard is divided into three main key
groups – department keys, numeric keys and
function keys.
If the key has two functions, it is necessary to
choose the individual functions by using the
following procedure: the function in the lower
part of the key is chosen by directly pressing
the key. To choose the function in the upper
part of the key hold the "Shift" key before
pressing the chosen function key.
C
L
4
1
! " # %
0
& ( ) * +
Euro 500T/TX Handy
Note: Ask your local dealer for more informa-
tion.
The Euro-500T/TX Handy cash register key-
board is very comfortable and ready for opera-
tion. The keys are marked by big and simple
icons for fast orientation.
Attention: The keyboard is sensitive to con-
tamination, humidity and dirt. Use soft fab-
ric for cleaning the keyboard. Do not use pet-
rol and thinner for cleaning of the keyboard
plastic covers. The use of these chemicals can
cause damaging of the keyboard plastic cov-
ers or the covers colour. We recommend use of
3M sprays for cleaning.
8
5
2
0 0
© Elcom, s. r. o.

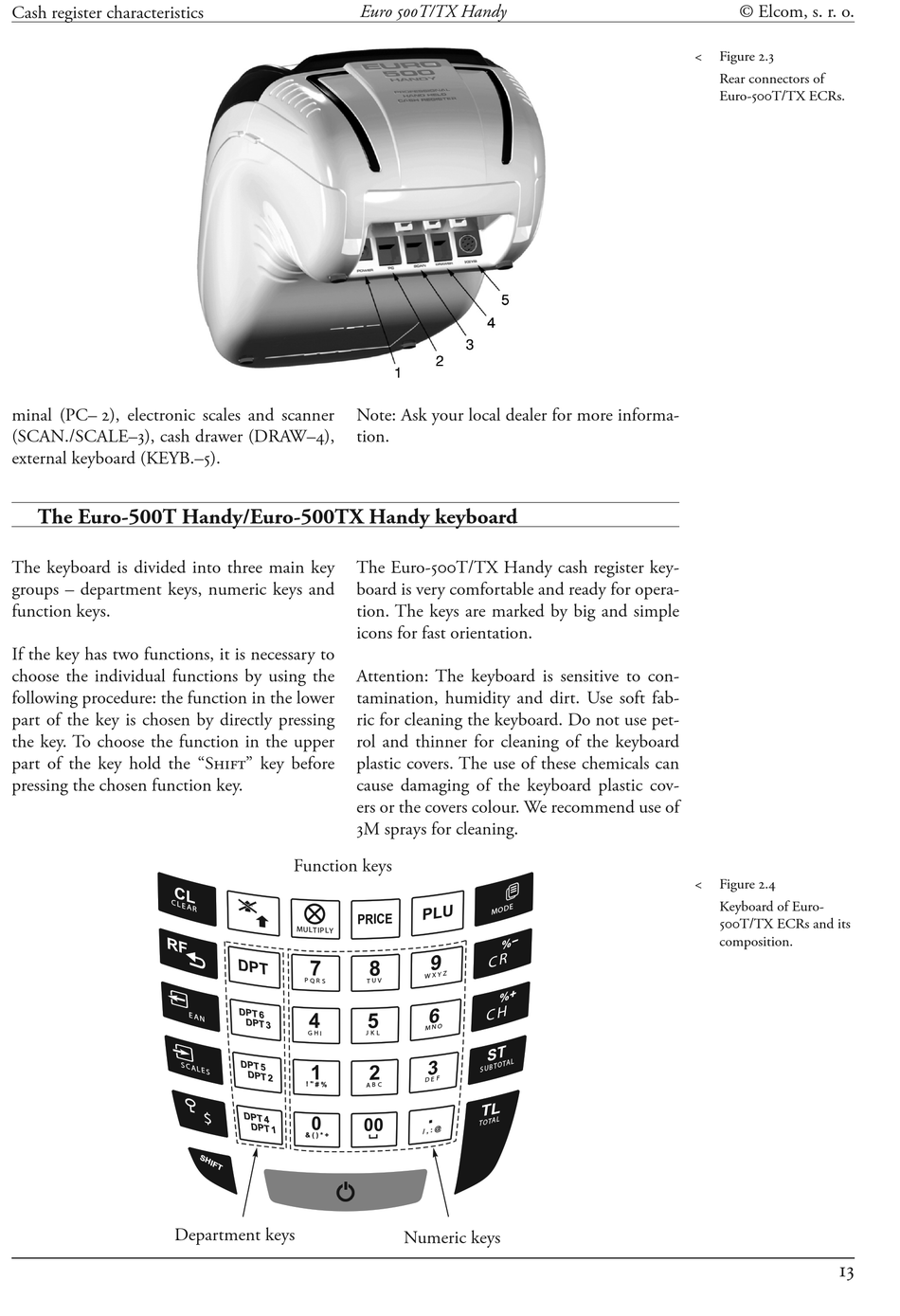

< Figure 2.3
Rear connectors of
Euro-500T/TX ECRs.
< Figure 2.4
Keyboard of Euro-
500T/TX ECRs and its
composition.
