Comfort audio DC-10 User Manual

Conference microphone
Hide thumbs Also See for DC-10:

Advertisement

Quick Links

User Manual
Conference Microphone
DC-10
English
1
Conference Microphone DC-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Comfort audio DC-10

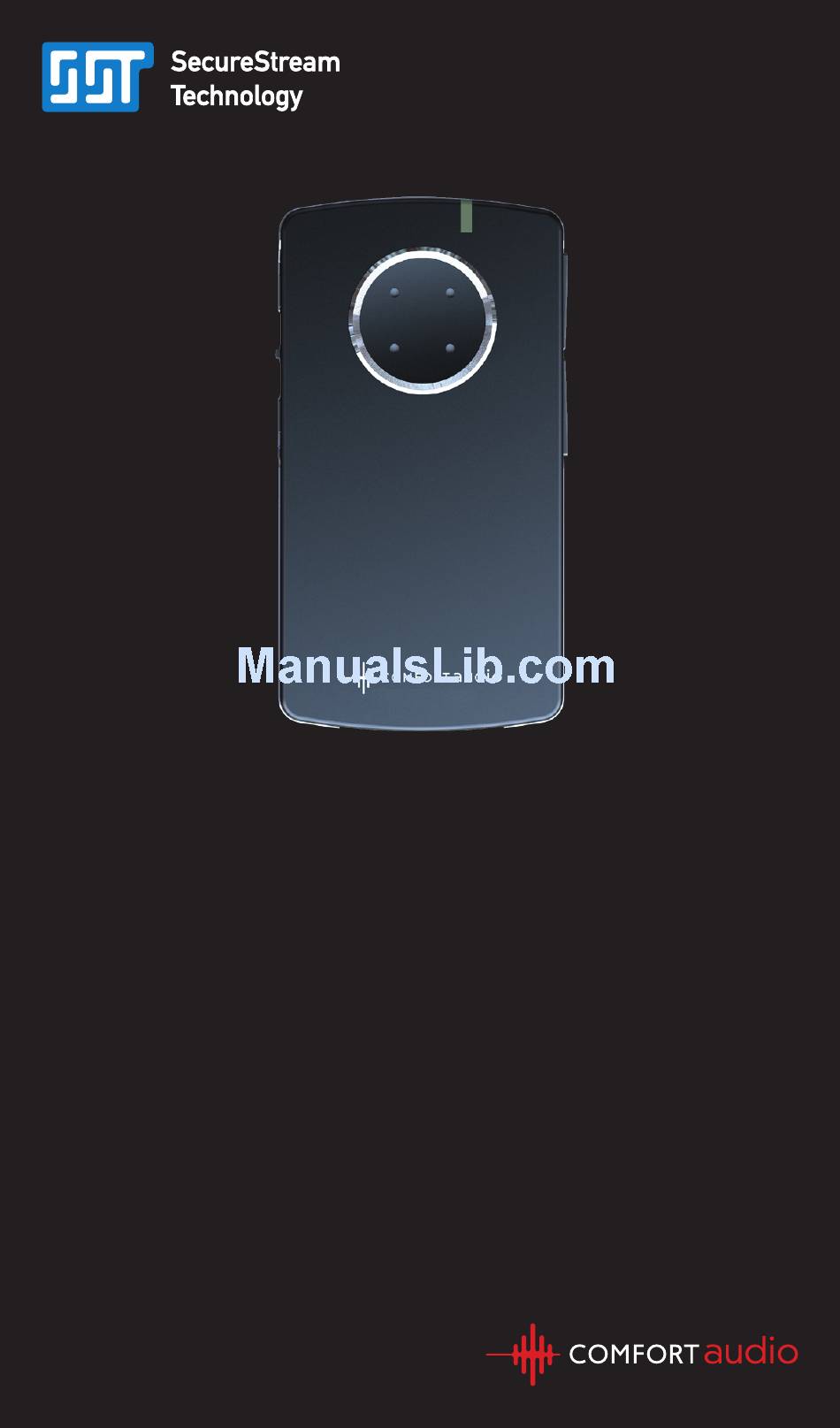

  • Page 1 User Manual Conference Microphone DC-10 English Conference Microphone DC-10...
  • Page 2: Table Of Contents

    User Manual Table of Contents Page Introduction to the Comfort Digisystem Functions of the Conference Microphone DC-10 Functions - Charging stand Getting Started First Time Use Menu More Functions Radio Range and Channels Attached Accessories Other original Accessories Trouble Shooting...
  • Page 3: Introduction To The Comfort Digisystem

    The products are easy to use, whether you use a hearing aid or not. Before using the product, please read this User Manual carefully. Using the Conference Microphone DC-10 transmitter, the signal is transferred digitally, resulting in an excellent clear sound. Comfort Digisystem is fitted with...
  • Page 4: Functions Of The Conference Microphone

    Functions of the Conference Microphone DC-10 On / Off Function indicator Pairing button Menu control/ volume control for Bluetooth Answering button for Bluetooth Mode selector Charging socket Mic/line in Multifunction socket Conference Microphone DC-10...
  • Page 5: Functions - Charging Stand

    Functions - Charging stand Multifunction socket USB-socket Mic in (for service) Charging Line in socket Conference Microphone DC-10...
  • Page 6: Getting Started

    Charging The Conference Microphone DC-10 is chargeable. Charge the DC-10 at least five hours before you use it for the first time. An empty battery is fully charged within five hours. During charging, the function indicator shows red and a lightning bolt appears through the battery symbol in the display.
  • Page 7: First Time Use

    Switch on the transmitter by pressing the On/Off button for around two seconds. The Conference Microphone DC-10 always starts in Omni Mode Wide as default. The position is easily changed us- ing the mode selector on the long side of the unit.
  • Page 8: Menu

    To access the menu, press the menu control: Back Communication Channel Pairing Bluetooth Sound Treble and Bass Equalizer Advanced settings Input Mic/Line in Charger unit Settings Auto power off Language Key lock Name Factory reset Activate key lock About Conference Microphone DC-10...
  • Page 9 To use a receiver and transmitter together, they must be paired. All transmitters and receivers are default paired at the factory and will work together. To prevent eaves- dropping, a new code key must be generated and trans- Conference Microphone DC-10...
  • Page 10: Conference Microphone Dc

    Pairing (via pairing button) (The only way of pairing units without a display, with the pairing button) ou can activate the Pairing function via the pairing button. Pairing One brief press of the button opens the menu. Conference Microphone DC-10...
  • Page 11 Bluetooth Here you can activate Bluetooth to be able to pair the Conference Microphone DC-10 with a telephone or mo- bile. By selecting BT only the unit transmits only during telephone calls. Using Mix level you can adjust the volume of your own voice.
  • Page 12 PSE compensation can be reduced. On delivery, Omni – Wide is set to +2 and Omni – Narrow to +6. Input Mic/Line in This is where the function for the mic/line in socket is selected: Conference Microphone DC-10...
  • Page 13 - Headphones When connecting a signal source to Line in (e.g. a TV), Line in mix is selected to also receive surrounding sound through the Conference Microphone DC-10. Charging stand Here you can adjust the level for Line in and Microphone in.
  • Page 14 Here you can activate the key lock directly when the menu control has been pressed. Or you can press the menu control, followed by arrow up (mode selector) on the long side of the unit. About Here you find software information. Conference Microphone DC-10...
  • Page 15: More Functions

    When a Bluetooth telephone has been successfully con- nected, the indicator flashes blue five times. During an ongoing telephone call, the indicator flashes blue every second second. When Reset BT is selected, the indicator flashes blue ten times. Conference Microphone DC-10...
  • Page 16 The Conference Microphone DC-10 can be connected to two Bluetooth telephones at the same time. The person you are talking to can hear you through the microphones on DC-10. His/Her voice is sent to your Digisystem re- ceiver. When Bluetooth is activated in the menu, the Bluetooth symbol is shown in the display.
  • Page 17 1 and 2 (look underneath). At socket 1, an external microphone can be connected. At socket 2, a stronger signal source, such as TV, MP3, radio etc. can be connected. It is not possible to use both Conference Microphone DC-10...
  • Page 18 In that case, an error-message is shown: Disconnect from Mic/Line. The level of these signal sources can then be adjusted under Connection – Charging stand. Conference Microphone DC-10...
  • Page 19: Radio Range And Channels

    A-F, which require a licence in most European countries: A 768 - 790 MHz B 854 - 863 MHz C 790 - 800 MHz D 800 - 820 MHz E 820 - 854 MHz F 865 - 872 MHz Conference Microphone DC-10...
  • Page 20: Attached Accessories

    The charger has short-circuit and automatic overload protection. Disconnect the char- ger from the socket after use. Boom microphone Headset microphone. Earworn microphone A microphone that is attached around the ear. For other accessories, please visit our website, www.comfortaudio.com Conference Microphone DC-10...
  • Page 21: Trouble Shooting

    Check that the transmitter and receiver are set to the same channel. Loud hissing noise (no sound transfer) Check that the units are paired. The unit will not start during charging Disconnect the charger. Check the selection Auto power off under Charging in the menu. Conference Microphone DC-10...
  • Page 22: Service And Warranty

    Under normal use, battery lifetime is up to five years. Contact your point of purchase once it is time to change the battery. You are always welcome to contact us at Comfort Audio if you have any questions. Technical Data Type of transmitter: SST –...
  • Page 23: Important Safety Instructions

    13) Start listening at a low volume. 14) Too high a volume can seriously damage your Conference Microphone DC-10...
  • Page 24 21) You must not change the battery yourself; please contact your point of purchase. CAUTION! Danger of explosion if battery is incorrectly replaced. 23) The product shall not be exposed to excessive heat such as sunshine, fire or the like. Subject to change Conference Microphone DC-10...
  • Page 25 Conference Microphone DC-10...
  • Page 26 Conference Microphone DC-10...
  • Page 27 Conference Microphone DC-10...
  • Page 28 Manufactured by: Comfort Audio AB Box154, SE-301 05 Halmstad, Sweden Tel. +46 (0)35 15 23 00 Fax +46 (0)35 15 23 23 info comfortaudio.com www.comfortaudio.com Conference Microphone DC-10...
