Picture menu

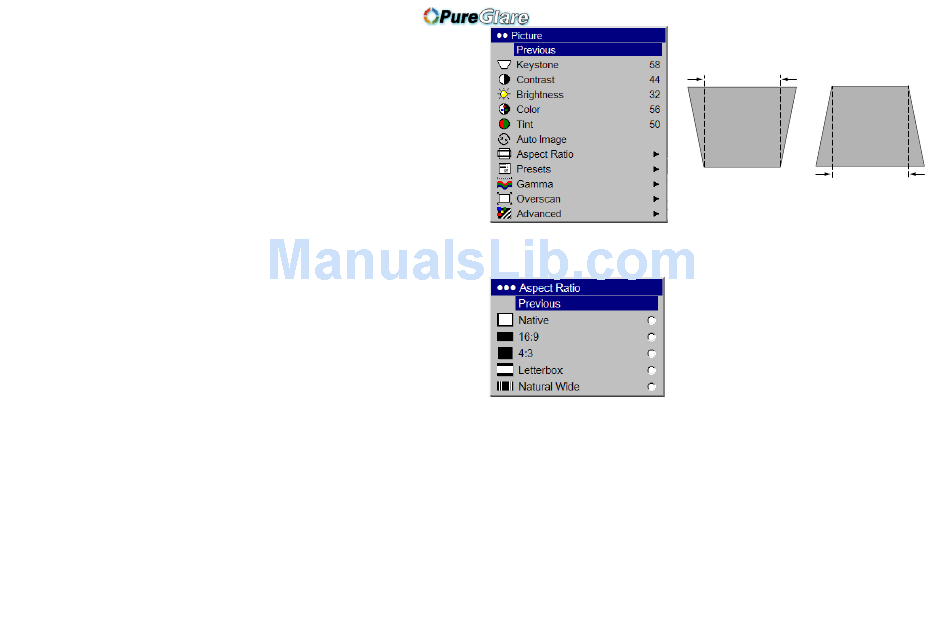

Picture menu
To adjust the following settings, highlight the setting, press Select, use the
up and down arrows to adjust the values, then press Select to confirm the
changes.
Keystone: adjusts the image vertically and makes a squarer image. Tilt the
projector up or down to adjust for keystone before using the digital key-
stone correction in the menu.
Image Shift (IN78 only): moves the image vertically. Use it to shift the
image, or to mask artifacts or bars on the top or bottom of the image
decreasing keystone
increasing keystone
Contrast: controls the degree of difference between the lightest and darkest
parts of the picture.
Brightness: changes the intensity of the image.
Color: adjusts a video image from black and white to fully saturated color.
Tint: adjusts the red-green color balance in the image of NTSC video
images. The tint setting applies to NTSC video sources only.
Aspect ratio
Aspect Ratio: Aspect ratio is the ratio of the image width to image height.
TV screens are usually 4:3. HDTV and most DVDs are 16:9. The projector's
default is 16:9. See "Choosing the aspect ratio" on page 6 for more informa-
tion.
Select Native to see the unmodified input with no resizing by the projector.
Select 16:9 to watch enhanced widescreen DVDs. Select Letterbox to pre-
serve the 16:9 aspect ratio. If you have a 16:9 source and screen, the image
fills the screen. If your source is letterboxed, the image is expanded to fill
the screen. Select Natural Wide to stretch a 4:3 image to fill the entire 16:9
screen. The center two-thirds of the image is unchanged; the edges of the
image are stretched.
For more information regarding Aspect Ratio, see page 6.
