Trident
IN72/IN74/IN76/IN78

Reference Guide

http://www.pureglare.com.au

Advertisement

Table of Contents
loading

Related Manuals for InFocus IN72

Summary of Contents for InFocus IN72

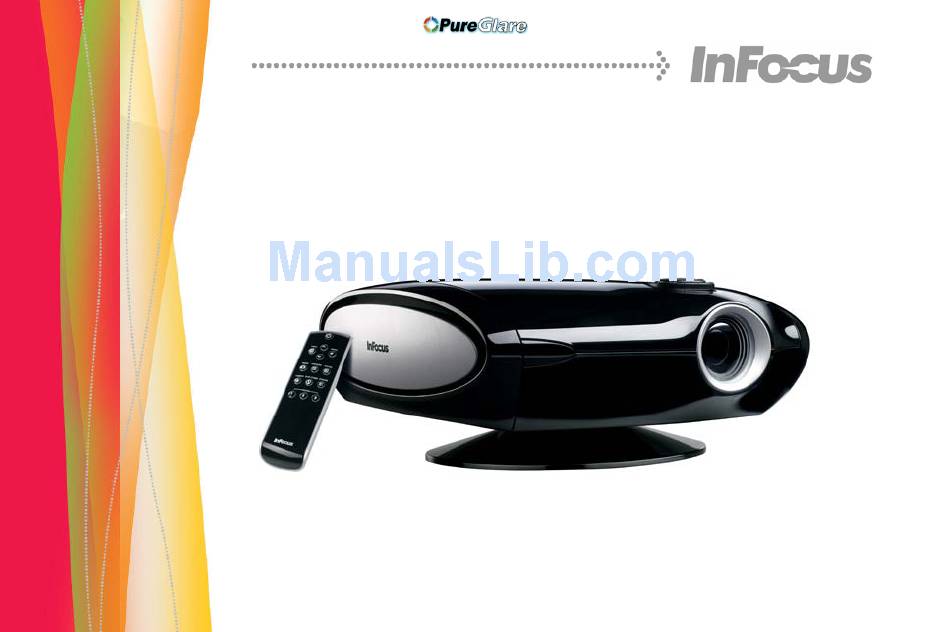

  • Page 1: Reference Guide

    Trident IN72/IN74/IN76/IN78 Reference Guide http://www.pureglare.com.au...
  • Page 2 UL, cUL, TUV, GOST Other specific Country Approvals may apply. Please see product certification label. This document applies to models IN72, P720, IN74, P740, IN76, P760, IN78. InFocus reserves the right to alter product offerings and specifications at any time without notice.

  • Page 3: Table Of Contents

    Locate the projector at least 4' (1.2 m) away from any heating or cooling SCART RGB connection vents. Digital connections DVI connection • Use only InFocus-approved ceiling mounts. HDMI connection • Use only the power cord provided. A surge-protected power strip is Computer connections recommended.

  • Page 4: Introduction

    Introduction Your new InFocus projector is specifically designed for home theater appli- zoom (outer ring) cations. It sets a high standard using the latest DLP™ technology and new focus DNX video processing from Pixelworks™. Whether you are watching mov- ies or High Definition broadcasts or playing the latest video game, you will enjoy amazing image quality.
  • Page 5 See “Video connectors” on page 7 for details. The projector also provides the following connectors: S-video RS-232 M1-DA/ composite • RS-232 for serial control (not included on the IN72) HDMI (not on IN72) 12 volt • 12 volt DC output (see below) DC output...

  • Page 6: Positioning The Projector

    IN74/IN76/IN78 • The image offset is 128% for the IN72. This means that if you have an Distance to screen image 10’ high, the bottom of the image will be 2.8’ above the center of the lens.

  • Page 7: Choosing The Aspect Ratio

    Choosing the aspect ratio 16:9 image Aspect ratio is the ratio of the image width to image height. HDTV and 16:9 image input most DVDs are 16:9, which is the default for this projector. When in 4:3 mode the projector places black bars on both sides of the image. Native 16:9 aspect ratio mode centers the image and turns off the internal scaler so that any resolu-...

  • Page 8: Video Connectors

    If your device has a VGA connector, you can use the M1-DA/DVI connector for a high quality image. Many PC game systems have VGA connectors. component RCA SCART (all 4 connectors) S-video RS-232 M1-DA/ composite HDMI (not on IN72) 12 volt DC output http://www.pureglare.com.au...

  • Page 9: Connecting A Video Device

    High quality cables optimized for your projector can be purchased from www.infocus.com/store (in select areas) or from your dealer or retailer. Composite (RCA) video connection Plug the composite video cable’s yellow connector into the video-out con-...

  • Page 10: Digital Connections

    720 progressive, 1080 interlaced or RS-232 connections (IN74/IN76/IN78 only) higher. The IN72 and IN74 are EDTV (Enhanced Definition Television) monitors, meaning they have vertical scanning lines of 480 progressive or You can control the projector from an LCD control panel or computer by higher.

  • Page 11: Displaying An Image

    Displaying an image Connect the power cord to the Power connector on the back of the projector plug in Power cord and to your electrical outlet. NOTE: Always use the power cord that shipped with the projector. Press the Power button on the remote or keypad. The LED flashes green and the fans start to run.
  • Page 12 Adjust the zoom and focus. adjust zoom (outer ring) and focus If the image is not square, adjust the keystone using the Picture menu. See adjust keystone page 22 for details. Adjust the volume on your stereo receiver. adjust volume Your projector has been factory optimized for very good performance no matter what the source.

  • Page 13: Shutting Down The Projector

    Shutting down the projector Troubleshooting your setup If your image appears correctly on the screen, skip to the next section. If it Power Save does not, troubleshoot the setup. The projector also has a Power Save feature that automatically turns the lamp off after no active sources are detected and no user interaction with The LED on top of the projector indicates the state of the projector and can the projector is performed for 20 minutes.
  • Page 14 Problem Solution Result plug power cord in back of projector no start up screen correct image press power button press power button image projected connect active source only start up screen appears press the Source button http://www.pureglare.com.au...
  • Page 15 Problem Solution Result move projector, adjust zoom, adjust height image not centered on screen correct image tilt the projector up or down or adjust image not square Keystone in Picture menu square image http://www.pureglare.com.au...
  • Page 16 adjust Sharpness in the Picture>Advanced image not sharp correct image menu correct image image upside down turn off ceiling in Settings>System menu http://www.pureglare.com.au...
  • Page 17 image reversed left to right turn off rear in Settings>System menu correct image adjust color, tint, color temperature, projected colors don’t match source brightness, contrast in the menus correct image COLOR COLOR lamp turns on make sure vents aren’t blocked, turn off the lamp won’t turn on, LED blinking red projector and allow it to cool for one minute...
  • Page 18 Still need assistance? If you need assistance, visit our website at www.infocus.com or call us. See the User’s Guide for support contact information. This product is backed by a limited warranty. An extended warranty plan may be purchased from your retailer or dealer.

  • Page 19: Using The Remote Control

    • Make sure you’re pointing the remote at the front of the projector or at Using the remote control the screen, not at the video device or the computer, and are within the The remote uses two (2) provided AA batteries. They are easily installed by remote range of 30 feet (9.14m).

  • Page 20: Using The Keypad Buttons

    Using the keypad buttons Most buttons are described in detail in other sections, but here is an over- view of their functions: Menu–opens the on-screen menus (page 21). Select–confirms choices made in the menus (page 21). Up/Down arrows–navigates to and adjusts settings in the menus (page 21). menu navigation buttons Power–turns the projector on and off.

  • Page 21: Optimizing Video Images

    Optimizing video images Customizing the projector You can customize the projector for your specific setup and needs. See Your projector has been factory optimized for very good performance no page 26 to page 28 for details on these features. matter what the source. However, if you wish to make further changes you can optimize the image using onscreen menus.

  • Page 22: Using The Menus

    Using the menus keypad navigation To open the menus, press the Menu button on the keypad or remote. (The buttons menus automatically close after 60 seconds if no buttons are pressed.) The Main menu appears. Use the arrow buttons to move up and down to high- light the desired submenu, then press the Select button.

  • Page 23: Picture Menu

    Picture menu Picture menu To adjust the following settings, highlight the setting, press Select, use the up and down arrows to adjust the values, then press Select to confirm the changes. Keystone: adjusts the image vertically and makes a squarer image. Tilt the projector up or down to adjust for keystone before using the digital key- stone correction in the menu.
  • Page 24 ISF presets are not available until after calibration is performed, and picture settings cannot be adjusted when ISF presets are active. For more information go to www.infocus.com/service. Gamma: Gamma tables contain preset intensity configurations optimized for the input source. You can select a gamma table that has been specifically...
  • Page 25 Advanced menu Remember that not all options in the menus are available for all sources/ signals. Phase: adjusts the horizontal phase of a computer source. Tracking: adjusts the vertical scan of a computer source. Advanced menu Horizontal/Vertical Position: adjusts the position of a computer source. Sync Threshold Adjust: (progressive signals only) If a hardware device, such as a DVD player, is not syncing properly with the projector, adjust this option to help it to sync when connected to the projector.
  • Page 26 Choose Maximum to display all colors that the projector is capable of displaying. InFocus Color Gamut Calibrator software allows a professional installer to define optimized color calibration coordinates for the IN78. For more infor- mation go to www.infocus.com/service.

  • Page 27: Settings Menu

    Settings menu Sources: allows programming of source buttons, enables autosource, and enables the SCART RGB source. When Autosource is selected, the Source Settings menu Enable feature indicates which sources the projector attempts to lock onto. You can use the Source Enable feature to eliminate certain sources from this search, which will speed the search.
  • Page 28 Startup Logo: allows you to display a blank screen or a custom captured image instead of the default screen at startup. To capture a new image, display the image and select Capture New. A mes- sage appears. Select Captured in the Startup Logo menu to display your new image.
  • Page 29 Service: To use these features, highlight them and press Select. Factory Reset: restores all settings to their default. Service menu Reset Lamp hours: resets the lamp hours used counter in the Service Info menu to zero. Do this only after changing the lamp. HDMI menu Test Pattern: displays a test pattern.

  • Page 30: Maintenance

    The LED on top of the projector also blinks red twice to indicate that the lamp should be changed. NOTE: You can order new lamp housings from www.infocus.com (in select areas), your retailer or your dealer. Use only a replacement lamp with the same type and rating as the original lamp.
  • Page 31 Push the 2 tabs on the lamp door toward the front of the projector and lift the lamp door off. lamp door Loosen the three captive screws that attach the lamp housing to the pro- jector. Detach the lamp connector from the projector by depressing the locking tab on the connector and lightly pulling it free.
  • Page 32 Replace the lamp door. Replace the base or ceiling mount plate, if necessary. Plug in the power cord and press the Power button on the remote or Service menu keypad to turn the projector back on. To reset the lamp hour timer, navigate to the Settings>Service menu and select Reset Lamp Hours.

  • Page 33: Appendix

    Appendix Red LED behavior and projector errors If the projector is not functioning properly and the LED is blinking red, con- sult Table 4 to determine a possible cause. There are two-second pauses between the blinking cycles. Visit our website for more details on the red LED error codes.

  • Page 34: Remote Control Discrete Codes

    Remote control discrete codes You can use these codes to program another remote to learn the projector’s remote functions. To activate discrete mode, press and hold the Custom button on the remote for 10 seconds. The back light blinks twice when discrete mode is entered. The remote buttons are now remapped to new functions as listed below.

  • Page 35: Projector Dimensions For Ceiling Mount Installations

    Projector dimensions for ceiling mount installations All values in millimeters (mm). 40.5 24.5 126.5 234.5 227.5 245.5 344.25 40.25 http://www.pureglare.com.au...

  • Page 36: Supported Video Formats

    Supported video formats Connector Signal Type Supported formats HDMI Digital RGB and YCrCb 480i/p/50Hz/60Hz (HDCP or non-HDCP) 576i/p/50Hz/60Hz 720p/50Hz/60Hz Digital RGB video via M1-to-DVI cable 1080i/50Hz/60Hz (HDCP or non-HDCP) 1080i/50Hz (Australia) 1080p/24Hz (IN76/78 only) Analog RGB video via M1-to-VESA cable 1080p/50Hz M1-DA YPrPb video via M1-to-Component adapter...

  • Page 37: Rs-232 Terminal Specifications For In74/In76/In78

    RS-232 terminal specifications for IN74/IN76/IN76 A read command returns the range and the current setting, for example Communication configuration Function Command Response To control the projector from an LCD control panel, connect an RS-232 cable Brightness (BRT?) (0-22, 10) to the serial control connector on the projector and set your computer’s serial port settings to match this communication configuration: Lamp hours (LMP?)
  • Page 38 Supported commands Color Space 0 = RGB 3 = REC709 Defa 2 = REC601 Function Command Range Color Temp Auto Ceiling Enable 0 = 6500 1 = 7500 Auto Color Space enable 2 = 9300 Auto Image 3 = Native Aspect Ratio Contrast 0-255...
  • Page 39 Menu Navigation Red Color Offset 0-255 1 = up Red Gain 0-255 2 = down Sharpness 3 = select Sleep Timer Language 0-11 0 = English Sync Threshold Adjust 1-15 1 = French Source 2 = German 0 = HDMI 3 = Italian 1 = M1-DA 4 = Japanese...
  • Page 40 Vertical Position 0-100 Time in Hours Last Bulb2 0-65535 Lasted Video Standard 0 = Auto Time in Hours Last Bulb3 0-65535 1 = NTSC Lasted 2 = PAL Illuminating State 5 = SECAM Lamp Total Time On in hours 0-65535 White Peaking 0-10 for all bulbs...
  • Page 41 12 SCART 8 solid green 12 S-video 8 LED behavior 10, 12, 32 video device 8 Letterbox 22 contacting InFocus 17 logo 27 Contrast 22 Custom key 23 maintaining the projector 29 customer service contact information 17 Menu button 21...
  • Page 42 Phase 24 SCART 8, 26 Picture menu 22 serial connection 9, 36 power cord 10 Service 28 Power Save 12, 26 Service Code 28 presets 23 Settings menu 26 projection distance 5 sharpness 24 projector solid green 12 connecting video devices 8 solid red 12 customization 20 Startup Logo 27...
  • Page 43 http://www.pureglare.com.au...
