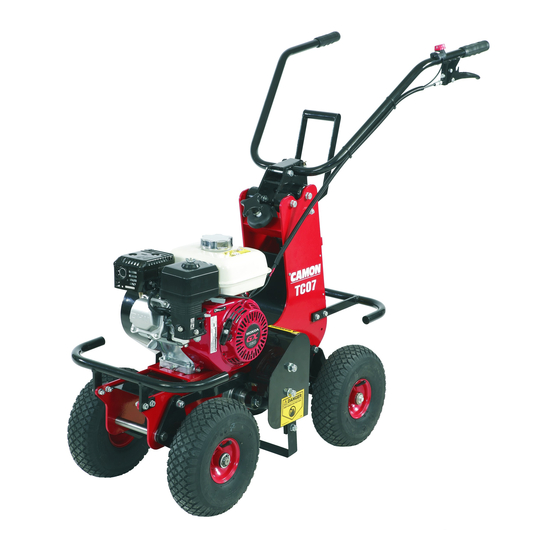

TURF CUTTER
MAINTENANCE GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAMON TC07 and is the answer not in the manual?

Questions and answers

Related Manuals for Tracmaster CAMON TC07

Summary of Contents for Tracmaster CAMON TC07

  • Page 1 CAMON TC07 TURF CUTTER MAINTENANCE GUIDE...
  • Page 3 TC07 Turf Cutter MAINTENANCE GUIDE Contents THIS GUIDE CONTAINS THE FOLLOWING INFORMATION: Maintenance Overview Trouble-Shooting Guide Changing the Crankshaft Drive Belt Replacing the Wheel Drive Belt TC07/1003/MG/1...
  • Page 4 TC07 Turf Cutter MAINTENANCE GUIDE Maintenance Overview OPERATION DAILY EVERY EVERY WEEK MONTH ENGINE Check engine oil level 10W/40 See separate engine manual MACHINE Check condition of blade Check driving belts Check clutch operation Check operating lever and cable Tighten all nuts and bolts Lubricate wheel bearings Check tyre pressures (20psi) Lubricate sliding clutch and shaft...
  • Page 5 TC07 Turf Cutter MAINTENANCE GUIDE Trouble-Shooting Guide PROBLEM POSSIBLE CAUSE REMEDY No drive to blade Loose engine belt Tighten belt Poor wheel drive Loose drive belt Tighten belt Poor cutting performance Blunt or damaged blade Straighten, sharpen or replace blade Machine does not go in a Incorrect tyre pressures Check pressure at 15psi...
  • Page 6 TC07 Turf Cutter MAINTENANCE GUIDE Changing the Crankshaft Drive Belt CLUTCH ENGINE BOLTS PIVOT POST RETAINING NUTS PULLEY BLADE ARM ASSEMBLY CRANKSHAFT RIGHT-HAND GUARD BLADE BOLTS BLADE INSTRUCTIONS Remove the right hand guard. Remove the blade bolts and take off the blade. Remove the blade arm assembly retaining nuts.
  • Page 7 TC07 Turf Cutter MAINTENANCE GUIDE Replacing the Wheel Drive Belt LEFT-HAND CHASSIS PIVOT POST BEARING CARRIER RETAINING NUTS BELT TENSIONER GRUB SCREWS CRANKSHAFT GEARBOX PULLEY CRANKSHAFT BEARING CARRIER BOLTS BLADE ARM ASSEMBLY CRANKSHAFT SPACER BLADE BOLTS BLADE LEFT-HAND GUARD LEFT-HAND CHASSIS WITH BEARING REMOVED CRANKSHAFT REMOVE AND CHANGE BELT HERE INSTRUCTIONS...
