Summary of Contents for Tracmaster CAMON LS42

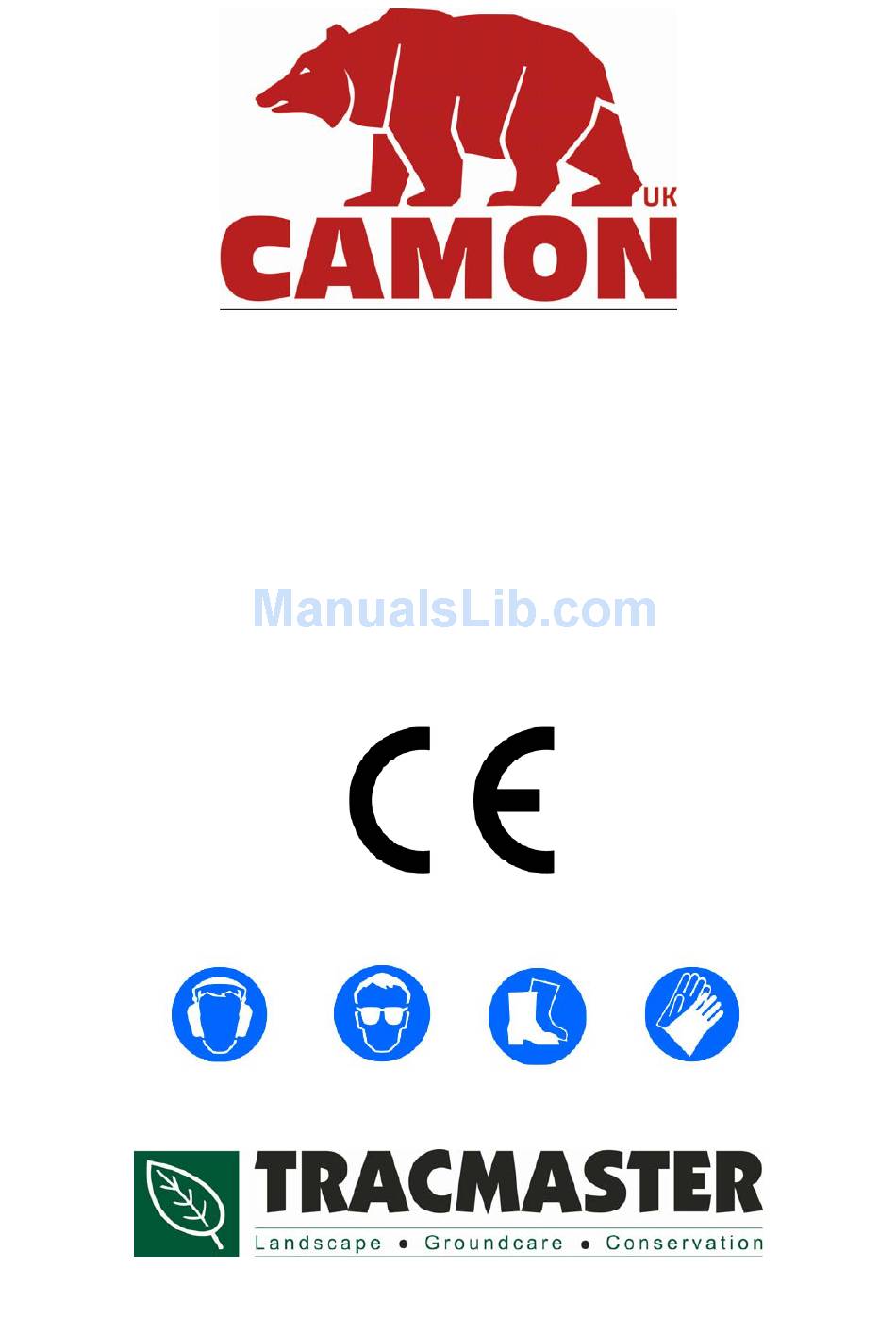

- Page 1 LS42 SCARIFIER Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
- Page 2 CAMON LS42 Lawn Scarifier Tracmaster Ltd Manufacturer Details Tracmaster Ltd Sovereign Centre Victoria Road Burgess Hill West Sussex RH15 9LR UNITED KINGDOM Tel: +44 1444 247689 Fax: +44 1444 871612 www.tracmaster.co.uk info@tracmaster.co.uk Machine Details Model: CAMON LS42 Scarifier Serial Number: ..........
-
Page 3: Table Of Contents
Tracmaster Ltd CAMON LS42 Lawn Scarifier Table of Contents 1.0 What the Machine is Designed For ..................3 Applications ......................... 3 2.0 Specifications ........................... 4 3.0 Unpacking and Assembly......................5 Major Components Diagram..................5 Unpacking Instructions ....................5 4.0 Safety Instructions – Pre-Operation ..................6 Basic Safety Instructions ..................... -
Page 4: What The Machine Is Designed For
1.0 What the Machine is Designed For 1.1 Applications The CAMON LS42 Lawn Scarifier has been designed by Tracmaster for removing the dead thatch and moss from lawns and other grassed areas. The benefit of scarifying a lawn is that it allows air, water and nutrients to reach the roots of the grass whilst removing unwanted dead and foreign material. -
Page 5: Specifications
Tracmaster Ltd CAMON LS42 Lawn Scarifier 2.0 Specifications ENGINE Engine Manufacturer Honda Engine Model GX160 Engine Type 4-Stroke overhead valve, single cylinder Engine Output Engine Shaft Size 3/4” Straight Spark Plug BPR6ES(NGK) / W20EPR-U (DENSO) Spark Plug Gap 0.70-0.80mm Engine Ignition Type... -
Page 6: Unpacking And Assembly
CAMON LS42 Lawn Scarifier Tracmaster Ltd 3.0 Unpacking and Assembly Major Components Diagram Top Handlebar Operating Lever Handlebar Locking Knobs Grassbag Lifting Handle Engine Wheels Front Axle Height Adjuster Knob Locking Knob Belt Guard Throttle Cable Unpacking Instructions Open the top of cardboard box. -
Page 7: Safety Instructions - Pre-Operation
Tracmaster Ltd CAMON LS42 Lawn Scarifier 4.0 Safety Instructions – Pre-Operation Basic Safety Instructions Before starting the machine, read and understand these operating instructions. Main Components and Operating Elements Below is a description of the main components of the LS42 and how they operate. -
Page 8: Height Adjustment
CAMON LS42 Lawn Scarifier Tracmaster Ltd Height Adjustment The height of the blades of LS42 Scarifier is altered using the two large knobs at the front of the machine. The top knob is connected to the centre of the front axle via a threaded rod. Rotating the knob in each direction will raise or lower the front axle in relation to the main chassis of the machine and in turn alter the height of the blades with the chassis. -
Page 9: Engine Specific Safety Instructions
Tracmaster Ltd CAMON LS42 Lawn Scarifier Read and be aware of the warning and instruction signs located on the machinery. Cordon off the work area to prevent access from the general public. Before starting work clear the area of any objects that may cause damage to the machine. -
Page 10: Safety Instructions Starting And Operating
CAMON LS42 Lawn Scarifier Tracmaster Ltd 5.0 Safety Instructions Starting and Operating To Start the Engine Using the dipstick provided, check the engine oil level. Top up with 10w/30 oil if the dipstick is clear of oil. Check the fuel level. Refill as necessary and as determined by the fuel tank type –... -
Page 11: To Stop The Engine
Tracmaster Ltd CAMON LS42 Lawn Scarifier To Stop the Engine Release the operating lever. Switch the engine ON/OFF switch to the ‘O’ off position. Turn the fuel tap lever to the OFF position. Ensure the blades have stopped rotating prior to moving the machine. -
Page 12: Procedure For Unexpected Shut Down
CAMON LS42 Lawn Scarifier Tracmaster Ltd Once the collection bag has become full, release the operating lever, turn off the engine and ensure the rotor shaft has stopped turning. Remove the collection bag and empty. Re- attach the bag securely and re-start the engine to continue scarifying. -
Page 13: Maintenance
Tracmaster Ltd CAMON LS42 Lawn Scarifier 6.0 Maintenance Schedule Operation Daily Every Every Week Month Engine Check engine oil level 10W/30 See separate engine manual Machine Check condition of blades Check condition of blade rods Check belt condition Check operating lever and cable... -
Page 14: Rotate Rotor
CAMON LS42 Lawn Scarifier Tracmaster Ltd Changing the Belt: Remove the three capscrews used to attach the belt guard to the chassis and remove the belt guard. Lift the tension pulley away from belt and hold. Pull the belt towards you and allow the tension pulley to fall back into its normal position but now not resting on the belt. -
Page 15: Blades
Tracmaster Ltd CAMON LS42 Lawn Scarifier Pull the loose bearings away from the chassis approximately 30mm. A tool for pulling bearings may be required at this stage should the bearings be difficult to move. Once the bearings have been pulled away from the chassis the blade rotor will be able to be removed from the chassis. -
Page 16: Engine
CAMON LS42 Lawn Scarifier Tracmaster Ltd Engine 6.4.1 Check Engine Oil Level This is to be checked prior to each use and every 8 hours during operation. Check only when the engine is off and in a horizontal position. Clean the oil filler plug and its surrounding parts. -
Page 17: Spark Plug
Tracmaster Ltd CAMON LS42 Lawn Scarifier Cleaning: See diagram below containing information provided by Honda. 6.4.4 Spark Plug Clean and replace. Cleaning After cleaning, particularly if a pressure washer has been used, ensure any lubrication points are re-lubricated. Clean the engine with a cloth only. Avoid spraying the engine with jets of water as this may leak into the fuel and ignition systems. -
Page 18: Engine
CAMON LS42 Lawn Scarifier Tracmaster Ltd 6.6.2 Engine Problem Possible Cause Remedy Spark plug connector not Connect spark plug connected connector Choke lever is not actuated Actuate choke lever Fuel tank empty Fill fuel tank Engine does not start Fuel line clogged... -
Page 19: Transportation, Storage And Handling
Tracmaster Ltd CAMON LS42 Lawn Scarifier 7.0 Transportation, Storage and Handling Transportation Use ramps where possible to manoeuvre the Scarifier into a transportation vehicle. The LS42 must be fixed securely using straps and by placing chocks behind the wheels. Always transport the LS42 horizontally and not at an angle. -
Page 20: Service Record
Tracmaster Ltd 8.0 Service Record To ensure your machine is kept in peak condition we recommend that your Scarifier is serviced regularly. Contact Tracmaster on 01444 247689 to find out who your local Authorised Agent is. Company:__________________________ Company:__________________________ Date:______________________________ Date:______________________________... -
Page 21: Warranty Registration
Tracmaster Ltd CAMON LS42 Lawn Scarifier Warranty Registration To validate your warranty please complete the form below and return it to: Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill, RH15 9LR Alternatively visit www.tracmaster.co.uk and complete the online form. CUSTOMER DETAILS Name: ....................... - Page 22 CAMON LS42 Lawn Scarifier Tracmaster Ltd ______________________________________________________________________________________________ For parts diagrams visit www.tracmaster.co.uk...
-
Page 23: Ec Declaration Of Conformity
Tracmaster Ltd CAMON LS42 Lawn Scarifier EC Declaration of Conformity Tracmaster Ltd declares that the machinery stipulated below complies with all the relevant provisions of: Machinery Directive 2006/42/EC EMC Directive 89/336/EEC and the National Laws and Regulations adopting these directives and other relevant directive. - Page 24 © 2011 Tracmaster Ltd Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR Tel: +44 (0) 1444 247689 Fax: +44 (0) 1444 871612 www.tracmaster.co.uk info@tracmaster.co.uk...
