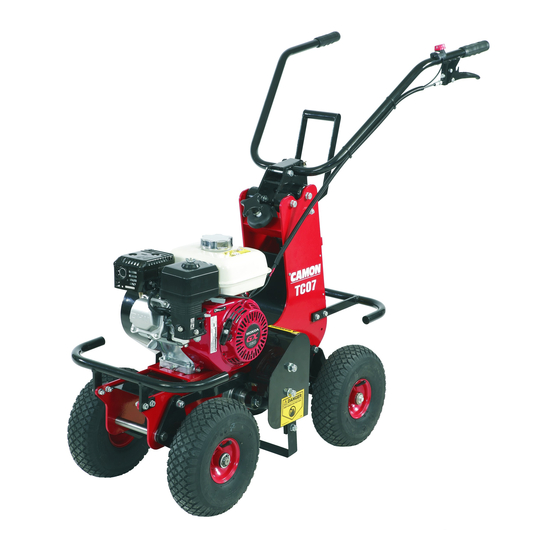

Tracmaster CAMON TC07 Original Instruction Manual
Turf cutter
Hide thumbs
Also See for CAMON TC07:
- Maintenance manual (8 pages) ,
- Operating instructions & safety notes (2 pages)
Related Manuals for Tracmaster CAMON TC07
Summary of Contents for Tracmaster CAMON TC07

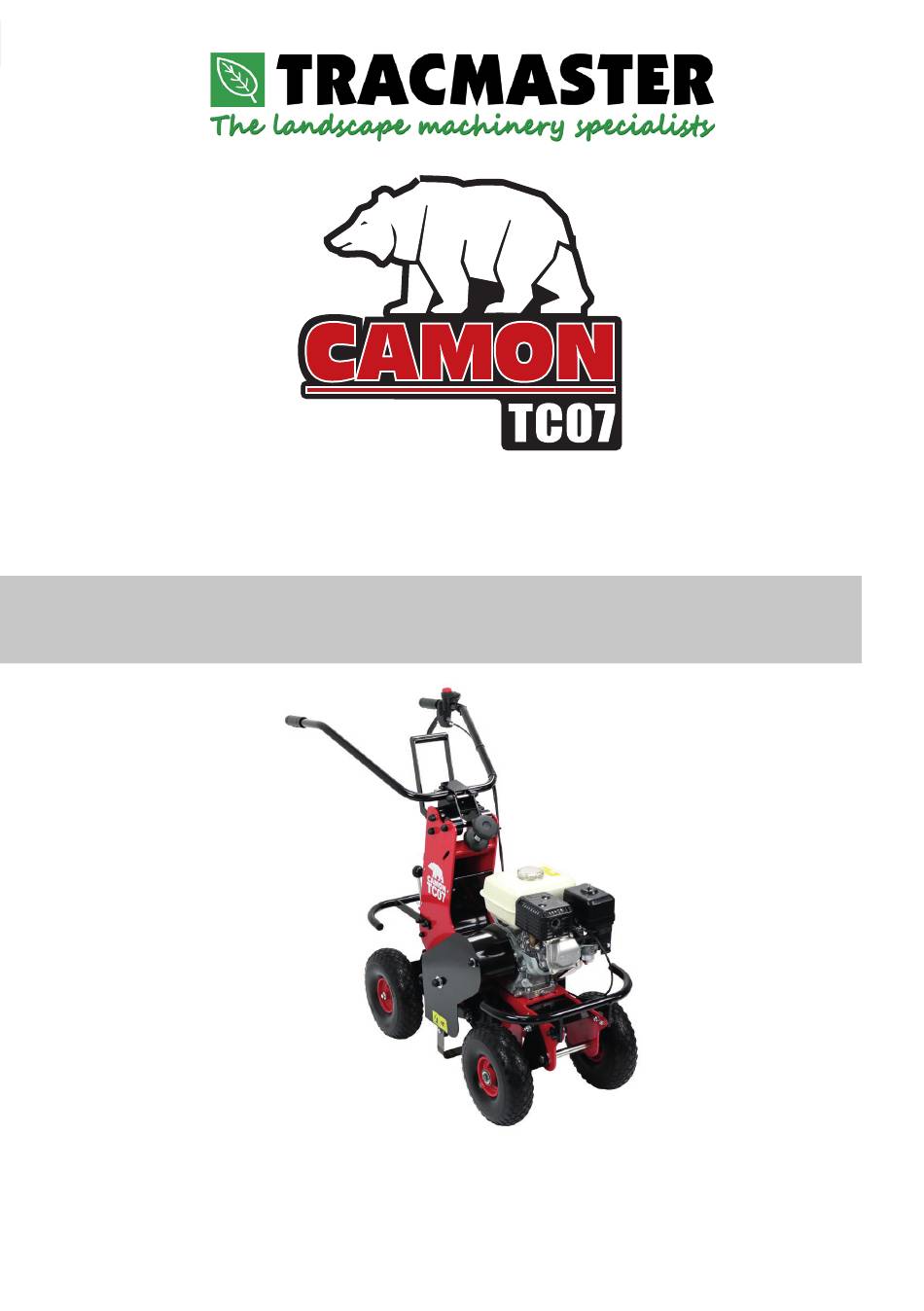

- Page 1 CAMON Turf Cutter ORIGINAL INSTRUCTION MANUAL Manufactured by Tracmaster Ltd Before commissioning the machine, read operating instructions and observe warning and safety instructions.
- Page 2 CAMON TC07 Turf Cutter Manufacturer Details Tracmaster Ltd Units 6-7 Winterpick Business Park Hurstpierpoint Road Wineham Henfield BN5 9BJ UNITED KINGDOM Tel: +44 (0)1444 247689 www.tracmaster.co.uk info@tracmaster.co.uk Machine Details CAMON TC07 Turf Cutter Model: Serial No: A 0 3 -...
-
Page 3: Table Of Contents
CAMON TC07 Turf Cutter Table of Contents Introduction ..........................2 Welcome ..........................2 About This Manual ........................2 What the Machine is Designed For ....................3 Applications ...........................3 Specifications..........................4 Unpacking and Assembly ......................5 Major Components Diagram ....................5 Unpacking Instructions ......................5 Safety Instructions – Pre-Operation ..................6 Basic Safety Instructions ......................6... -
Page 4: Introduction
CAMON TC07 Turf Cutter 1.0 Introduction Welcome Welcome to Tracmaster and thank you for choosing CAMON. We are confident that you will be more than happy with your machine. Your machine is covered by a comprehensive warranty. However, the lifespan of your CAMON machine depends on a number of factors. -
Page 5: What The Machine Is Designed For
The benefit of using a TC07 Turf Cutter is the ease and efficiency with which the machine is able to cut consistent strips of turf away from the soil. The blade of the CAMON TC07 Turf Cutter is designed to be used only on to cut strips of grass. -
Page 6: Specifications
CAMON TC07 Turf Cutter 3.0 Specifications ENGINE Engine Manufacturer Honda Engine Model GX160 Engine Type 4-stroke OHV, single cylinder Net Engine Power 3.6kW (4.8hp) @ 3600rpm Engine Shaft Size ¾” straight Spark Plug BPR6ES (NGK) / W20EPR-U (DENSO) Spark Plug Gap 0.70 - 0.80mm... -
Page 7: Unpacking And Assembly
CAMON TC07 Turf Cutter 4.0 Unpacking and Assembly Major Components Diagram ① ① Engine On/Off Switch ② Operating Lever ② ③ ③ Anti-Vibration Mounts ⑨ ④ ④ Cutting Depth Controls ⑤ ⑤ Fuel Tank ⑥ Engine ⑥ ⑦ Wheels ⑧ Cutting Blade ⑦... -
Page 8: Safety Instructions - Pre-Operation
CAMON TC07 Turf Cutter 5.0 Safety Instructions – Pre-Operation Basic Safety Instructions Before starting the machine, read and understand these operating instructions. Main Components and Operating Elements Below is a description of the main components of the TC07 Turf Cutter and how they operate. -
Page 9: Cutting Depth Adjustment
CAMON TC07 Turf Cutter PLEASE NOTE THAT THIS IS A TWO STAGE LEVER. THE GREY BUTTON MUST BE DEPRESSED BEFORE THE MAIN LEVER CAN BE PULLED UP. This lever operates both the cutting blade and the driving power to the back wheels. -
Page 10: Commissioning
CAMON TC07 Turf Cutter Commissioning Prior to operation it is necessary to check the engine oil level and add engine oil level to the levels indicated in the table in section 6.1. The engine fuel tank will not contain fuel so will need filling to the recommended level before use. -
Page 11: Machine Safety Sticker Explanations
CAMON TC07 Turf Cutter 5.11 Machine Safety Sticker Explanations Danger – moving parts (chain). Keep hands away. Danger – moving blade. Keep feet away. Ensure safety guards are in place. Machine MUST NOT be operated without guards. GREASE Lubrication point. - Page 12 It is important that these stickers are in good condition, are legible, and are in the correct positions on the TC07 Turf Cutter. If any of these stickers are missing or damaged then they must be replaced. They can be obtained from Tracmaster Ltd. Page 10...
-
Page 13: Safety Instructions Starting And Operating
CAMON TC07 Turf Cutter 6.0 Safety Instructions Starting and Operating To Start the Engine Using the dipstick provided, check the engine oil level. Top up with SAE 10W/30 oil, API SJ or equivalent, if the dipstick is clear of oil. -
Page 14: To Stop The Engine
CAMON TC07 Turf Cutter To Stop the Engine Release the operating lever. Switch the engine ON/OFF switch to the “O” OFF position. Turn the fuel tap lever to the OFF position. Ensure the blades have stopped prior to moving the machine. -
Page 15: Procedure For Unexpected Shut Down
CAMON TC07 Turf Cutter At the end of the strip of turf, raise the lifting lever to raise the blade out of the ground. Release the drive lever to stop the drive to the wheels and the blade. Move the gear selector lever to the disengaged position ‘O’. -
Page 16: Maintenance
CAMON TC07 Turf Cutter 7.0 Maintenance IMPORTANT! BEFORE UNDERTAKING ANY MAINTENANCE ENSURE THAT THE ENGINE IS OFF AND THE FUEL TAP IS OFF. Schedule Every Every Operation Daily Week Month Check engine oil level SAE 10W/30 API SJ or equivalent... -
Page 17: Change Engine Oil
CAMON TC07 Turf Cutter 7.3.2 Change Engine Oil Refer to the engine manufacturer’s manual for location of components and more detailed assistance. Do not change the oil if the engine is hot. The first oil change is after 50 hours of work. -
Page 18: Cleaning
CAMON TC07 Turf Cutter Cleaning After cleaning, particularly if a pressure washer has been used, ensure any lubrication points are re-lubricated, in particular the clutch system (see image to the right). Clean the engine with a cloth only. Avoid spraying the engine with jets of... -
Page 19: Engine
To lubricate the roller bearings in the wheels we recommend using bio- lubricating grease. Spare Parts The spare parts diagrams and part numbers for the CAMON TC07 Turf Cutter can be found on our website or by contacting our spare parts department. Spare parts can be ordered via the following methods:... -
Page 20: Transportation, Storage And Handling
CAMON TC07 Turf Cutter 8.0 Transportation, Storage and Handling Transportation Use ramps where possible to manoeuvre the TC07 Turf Cutter into a transportation vehicle. The TC07 Turf Cutter must be fixed securely using straps and by placing chocks behind the wheels. -
Page 21: Service Record
CAMON TC07 Turf Cutter 9.0 Service Record To ensure your machine is kept in peak condition we recommend that your CAMON TC07 Turf Cutter is serviced at regular intervals. Contact Tracmaster on 01444 247689 to find out who your local Authorised Tracmaster Dealer is, or check our Dealer Locator online at www.tracmaster.co.uk. -
Page 22: Ec Declaration Of Conformity
CAMON TC07 Turf Cutter 10.0 EC Declaration of Conformity Tracmaster Ltd declares that the machinery stipulated below complies with all the relevant provisions of: Machinery Directive 2006/42/EC EMC Directive 2004/108/EC and the National Laws and Regulations adopting these directives and other relevant directive. -
Page 23: Warranty Information
• For commercial and hire use: 2 years Tracmaster Ltd will replace or repair, at their discretion, free of charge, any such defective material providing the machine is returned to their workshops or an Authorised Tracmaster Dealer (contact us or see www.tracmaster.co.uk). - Page 24 CAMON TC07 Turf Cutter Original Instruction Manual © 2020 Tracmaster Ltd Tracmaster Ltd Units 6-7 Winterpick Business Park | Hurstpierpoint Road | Wineham | Henfield | BN5 9BJ | UK Tel: +44 (0)1444 247689 | www.tracmaster.co.uk | info@tracmaster.co.uk...
