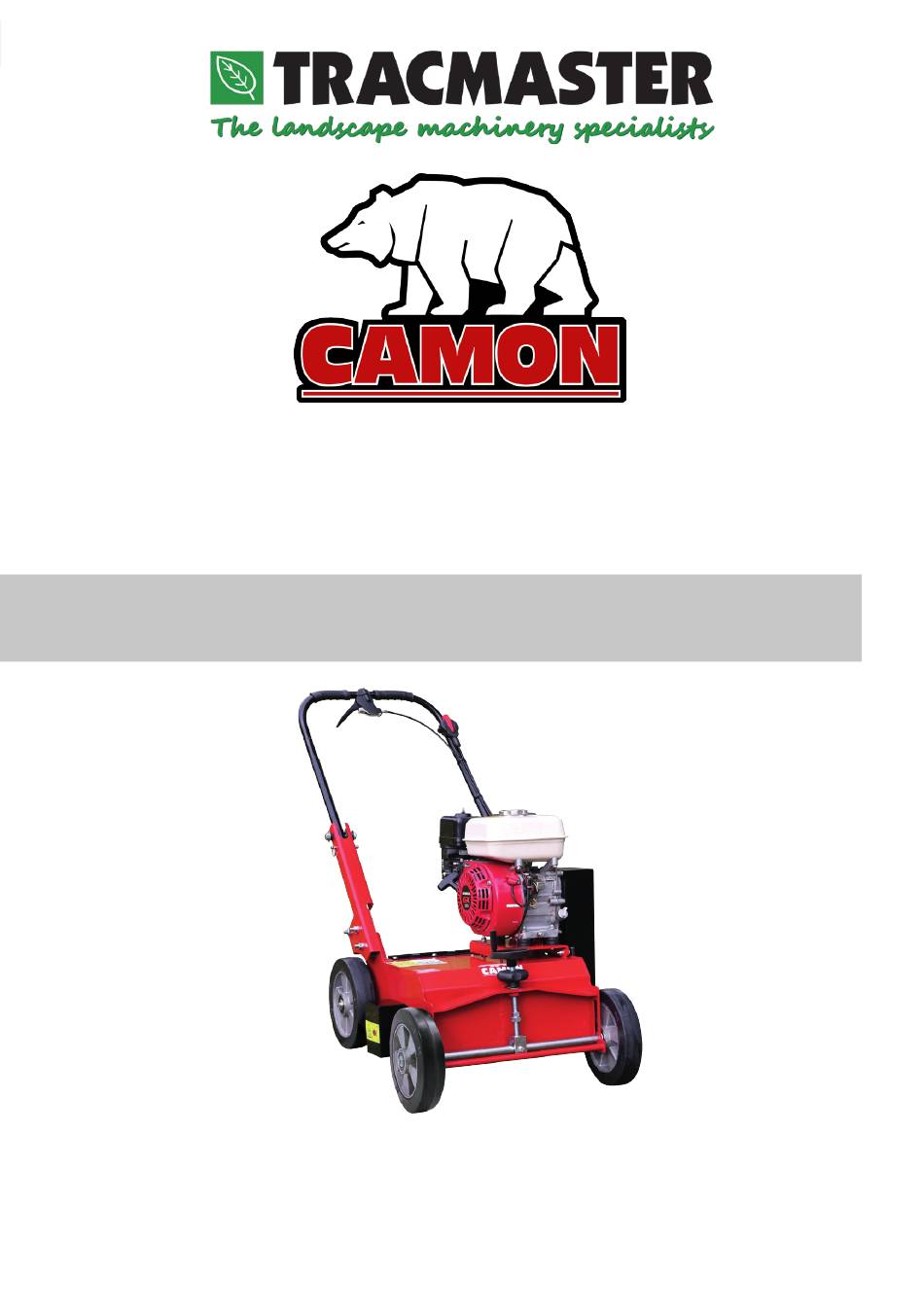

CAMON LS42B1 Lawn Scarifier
ORIGINAL INSTRUCTION MANUAL
Manufactured by Tracmaster Ltd
Manufactured by Tracmaster Ltd
Before commissioning the machine, read operating instructions
Before commissioning the machine, read operating instructions
and observe warning and safety instructions.
and observe warning and safety instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Camon LS42B1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tracmaster Camon LS42B1

Summary of Contents for Tracmaster Camon LS42B1

  • Page 1 CAMON LS42B1 Lawn Scarifier ORIGINAL INSTRUCTION MANUAL Manufactured by Tracmaster Ltd Manufactured by Tracmaster Ltd Before commissioning the machine, read operating instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions. and observe warning and safety instructions.
  • Page 2 CAMON LS42 Lawn Scarifier Manufacturer Details Tracmaster Ltd Units 6-7 Winterpick Business Park Hurstpierpoint Road Wineham Henfield BN5 9BJ UNITED KINGDOM Tel: +44 (0)1444 247689 www.tracmaster.co.uk info@tracmaster.co.uk Machine Details CAMON LS42 Lawn Scarifier Model: Serial No: B 0 1 -...

  • Page 3: Table Of Contents

    CAMON LS42B1 Lawn Scarifier Table of Contents Introduction ..........................2 Welcome ..........................2 About This Manual ........................2 What the Machine is Designed For ....................3 Applications ...........................3 Specifications..........................4 Unpacking and Assembly ......................5 Major Components Diagram ....................5 Unpacking Instructions ......................5 Safety Instructions – Pre-Operation ..................6 Basic Safety Instructions ......................6...

  • Page 4: Introduction

    CAMON LS42B1 Lawn Scarifier 1.0 Introduction Welcome Welcome to Tracmaster and thank you for choosing CAMON. We are confident that you will be more than happy with your machine. Your machine is covered by a comprehensive warranty. However, the lifespan of your CAMON machine depends on a number of factors.

  • Page 5: What The Machine Is Designed For

    2.0 What the Machine is Designed For Applications The CAMON LS42 Lawn Scarifier has been designed by Tracmaster for removing the dead thatch and moss from lawns and other grassed areas. The benefit of scarifying a lawn is that it allows air, water and nutrients to reach the roots of the grass whilst removing unwanted dead and foreign material.

  • Page 6: Specifications

    CAMON LS42B1 Lawn Scarifier 3.0 Specifications ENGINE Engine Manufacturer Honda Engine Model GX160 Engine Type 4-stroke OHV, single cylinder Net Engine Power 3.6kW (4.8hp) @ 3600rpm Engine Shaft Size ¾” straight Spark Plug BPR6ES (NGK) / W20EPR-U (DENSO) Spark Plug Gap 0.70 - 0.80mm...

  • Page 7: Unpacking And Assembly

    CAMON LS42B1 Lawn Scarifier 4.0 Unpacking and Assembly Major Components Diagram ① Operating Lever ① ② ② Engine On/Off Switch ③ Top Handlebar ③ ⑩ ④ Engine ⑤ Handlebar Locking Pins ⑤ ④ ⑥ Height Adjuster Knob ⑦ Belt Guard ⑥...

  • Page 8: Safety Instructions - Pre-Operation

    CAMON LS42B1 Lawn Scarifier 5.0 Safety Instructions – Pre-Operation Basic Safety Instructions Before starting the machine, read and understand these operating instructions. Main Components and Operating Elements Below is a description of the main components of the LS42 Lawn Scarifier and how they operate.

  • Page 9: Collection Bag

    CAMON LS42B1 Lawn Scarifier Collection Bag If fitted, the collection bag will collect the thatch and moss that is removed. Always stop the engine and wait for the blades to stop rotating before removing or replacing the collection bag. Bag Lifting Fig.

  • Page 10: Commissioning

    CAMON LS42B1 Lawn Scarifier Spring Rake Six rods with each rod holding 5 springs (30 in total). The springs are separated using spacers. Each set of 5 springs on a rod is offset from the other rods. Renovation Blades The rotor shaft holds 15 hardened steel blades.

  • Page 11: Engine Specific Safety Instructions

    CAMON LS42B1 Lawn Scarifier 5.10 Engine Specific Safety Instructions PETROL IS HIGHLY FLAMMABLE. ALWAYS STOP THE ENGINE AND ENSURE THE FUEL TAP IS TURNED OFF BEFORE REFUELING, OR WHEN TRANSPORTING, CLEANING, OR MAKING ADJUSTMENTS TO THE MACHINERY. Do not smoke or use a naked flame when refueling.
  • Page 12 It is important that these stickers are in good condition, are legible, and are in the correct positions on the LS42 Lawn Scarifier. If any of these stickers are missing or damaged then they must be replaced. They can be obtained from Tracmaster Ltd. Page 10...

  • Page 13: Safety Instructions Starting And Operating

    CAMON LS42B1 Lawn Scarifier 6.0 Safety Instructions Starting and Operating To Start the Engine Using the dipstick provided, check the engine oil level. Top up with SAE 10W/30 oil, API SJ or later, if the dipstick is clear of oil.

  • Page 14: To Stop The Engine

    CAMON LS42B1 Lawn Scarifier To Stop the Engine Release the operating lever (Fig. 7A). Switch the engine ON/OFF switch on the handlebars to the OFF (O) position (Figs. 6A or 6C). If there is an ON/OFF switch on the engine then turn this to the OFF position.
  • Page 15 CAMON LS42B1 Lawn Scarifier Walk never run. Exercise extreme caution when changing direction on slopes. Use extreme caution when reversing or pulling the machine towards you. Stop the blades if the machine has to be tilted for transportation. Do not operate the blades when crossing surfaces other than grass and when transporting the machine to and from the working area.

  • Page 16: Procedure For Unexpected Shut Down

    CAMON LS42B1 Lawn Scarifier If using the collection bag, ensure that it is mounted correctly and is secure (see Section 5.6 for more information). Lift the operating lever to engage the rotor shaft and walk at a slow steady pace pushing the machine ahead of you.

  • Page 17: Residual Risks Of The Ls42 Lawn Scarifier

    CAMON LS42B1 Lawn Scarifier WARNING: ALWAYS TILT THE LS42 LAWN SCARIFIER FORWARDS TO AVOID OIL IN THE ENGINE FLOODING INTO AREAS WHERE IT WILL CAUSE DAMAGE. Residual Risks of the LS42 Lawn Scarifier The rotor shaft will continue to rotate for a couple of seconds once the operating lever has been released.

  • Page 18: Maintenance

    CAMON LS42B1 Lawn Scarifier 7.0 Maintenance IMPORTANT! BEFORE UNDERTAKING ANY MAINTENANCE ENSURE THAT THE ENGINE IS OFF AND THE FUEL TAP IS OFF. Schedule Every Every Operation Daily Week Month Check engine oil level SAE 10W/30 API SJ or equivalent...

  • Page 19: Removing Cartridge/Rotor Assembly

    CAMON LS42B1 Lawn Scarifier Release the tension from the belt by using the engine plate tension screws at the rear of the engine plate. The drive belt has now become slack. Grab the right-hand side of the belt close to the bottom pulley and pull as if you are trying to pull the belt off the bottom pulley.

  • Page 20: Fitting Cartridge/Rotor Assembly

    CAMON LS42B1 Lawn Scarifier 7.3.3 Fitting Cartridge/Rotor Assembly Insert the cartridge/rotor into the chassis. Refit the pillow block bearings with the bolts to fix the pillow block bearings to the chassis. Locate the bottom taper lock pulley onto the end of the rotor shaft ensuring the woodruff key is fitted.
  • Page 21 CAMON LS42B1 Lawn Scarifier Reinsert the rod slowly and, in each section between spiders, pass the rod through the springs and blade in the correct order. Continue this until each section has been filled with a blade and springs and the rod is showing through the last spider.
  • Page 22 CAMON LS42B1 Lawn Scarifier Spring Rake Cartridge Spacer Spider Rotor Locking Shaft Spring Spacer Washer Remove the locking nut from just one rod. Slide the rod through the spiders being careful to remove the springs, spacers, and washers as the rod is removed from each section.

  • Page 23: Engine

    CAMON LS42B1 Lawn Scarifier Renovation Cartridge Rotor Shaft Blade Spacer Undo the grub screw located in the clamp and then remove the clamp from the end of the rotor shaft. Slide the blades and spacers off the rotor shaft. Once the worn blades have been removed the rotor shaft should be checked for wear and if serviceable can be reused and the new blades located.

  • Page 24: Change Engine Oil

    CAMON LS42B1 Lawn Scarifier 7.4.2 Change Engine Oil Refer to the engine manufacturer’s manual for location of components and more detailed assistance. Do not change the oil if the engine is hot. The first oil change is after 50 hours of work.

  • Page 25: Cleaning

    CAMON LS42B1 Lawn Scarifier Cleaning After cleaning, particularly if a pressure washer has been used, ensure any lubrication points are re-lubricated. Clean the engine with a cloth only. Avoid spraying the engine with jets of water as this may leak into the fuel and ignition systems.

  • Page 26: Transportation, Storage And Handling

    CAMON LS42B1 Lawn Scarifier 8.0 Transportation, Storage and Handling Transportation Use ramps where possible to manoeuvre the LS42 Lawn Scarifier into a transportation vehicle. The LS42 Lawn Scarifier must be fixed securely using straps and by placing chocks behind the wheels.

  • Page 27: Spare Parts

    CAMON LS42B1 Lawn Scarifier 9.0 Spare Parts Parts Diagrams The spare parts diagrams and part numbers for the CAMON LS42 Lawn Scarifier can be found on our website or by contacting our spare parts department. Spare parts can be ordered via the following methods:...

  • Page 28: Service Record

    To ensure your machine is kept in peak condition we recommend that your CAMON LS42 Lawn Scarifier is serviced at regular intervals. Contact Tracmaster on 01444 247689 to find out who your local Authorised Tracmaster Dealer is, or check our Dealer Locator online at www.tracmaster.co.uk.

  • Page 29: Ec Declaration Of Conformity

    CAMON LS42B1 Lawn Scarifier 11.0 EC Declaration of Conformity Tracmaster Ltd declares that the machinery stipulated below complies with all the relevant provisions of: Machinery Directive 2006/42/EC EMC Directive 2004/108/EC and the National Laws and Regulations adopting these directives and other relevant directive.

  • Page 30: Warranty Information

    • For commercial and hire use: 2 years Tracmaster Ltd will replace or repair, at their discretion, free of charge, any such defective material providing the machine is returned to their workshops or an Authorised Tracmaster Dealer (contact us or see www.tracmaster.co.uk/tools/find-a-dealer).
  • Page 31 CAMON LS42B1 Lawn Scarifier THIS PAGE INTENTIONALLY LEFT BLANK Page 29 LS42B1-02/2022.A...
  • Page 32 CAMON LS42B1 Lawn Scarifier Original Instruction Manual Rev. 02/2022.A © 2022 Tracmaster Ltd Tracmaster Ltd Units 6-7 Winterpick Business Park | Hurstpierpoint Road | Wineham | Henfield | BN5 9BJ | UK Tel: +44 (0)1444 247689 | www.tracmaster.co.uk | info@tracmaster.co.uk...
