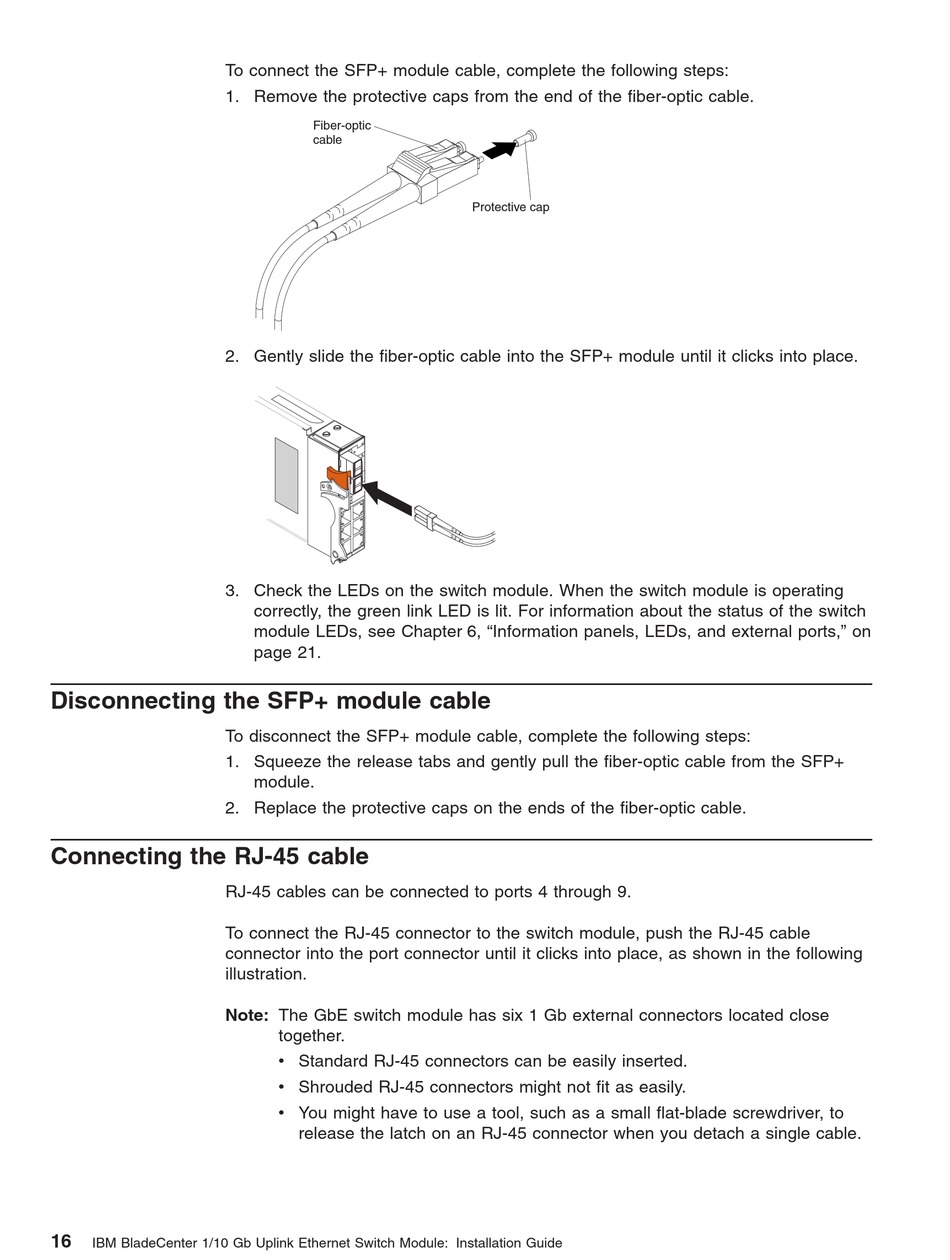

To connect the SFP+ module cable, complete the following steps:
1. Remove the protective caps from the end of the fiber-optic cable.
2. Gently slide the fiber-optic cable into the SFP+ module until it clicks into place.
3. Check the LEDs on the switch module. When the switch module is operating

Disconnecting the SFP+ module cable

To disconnect the SFP+ module cable, complete the following steps:
1. Squeeze the release tabs and gently pull the fiber-optic cable from the SFP+
2. Replace the protective caps on the ends of the fiber-optic cable.

Connecting the RJ-45 cable

RJ-45 cables can be connected to ports 4 through 9.
To connect the RJ-45 connector to the switch module, push the RJ-45 cable
connector into the port connector until it clicks into place, as shown in the following
illustration.
Note: The GbE switch module has six 1 Gb external connectors located close
16
IBM BladeCenter 1/10 Gb Uplink Ethernet Switch Module: Installation Guide
Fiber-optic
cable
correctly, the green link LED is lit. For information about the status of the switch
module LEDs, see Chapter 6, "Information panels, LEDs, and external ports," on
page 21.
module.
together.
v Standard RJ-45 connectors can be easily inserted.
v Shrouded RJ-45 connectors might not fit as easily.
v You might have to use a tool, such as a small flat-blade screwdriver, to
release the latch on an RJ-45 connector when you detach a single cable.
Protective cap
