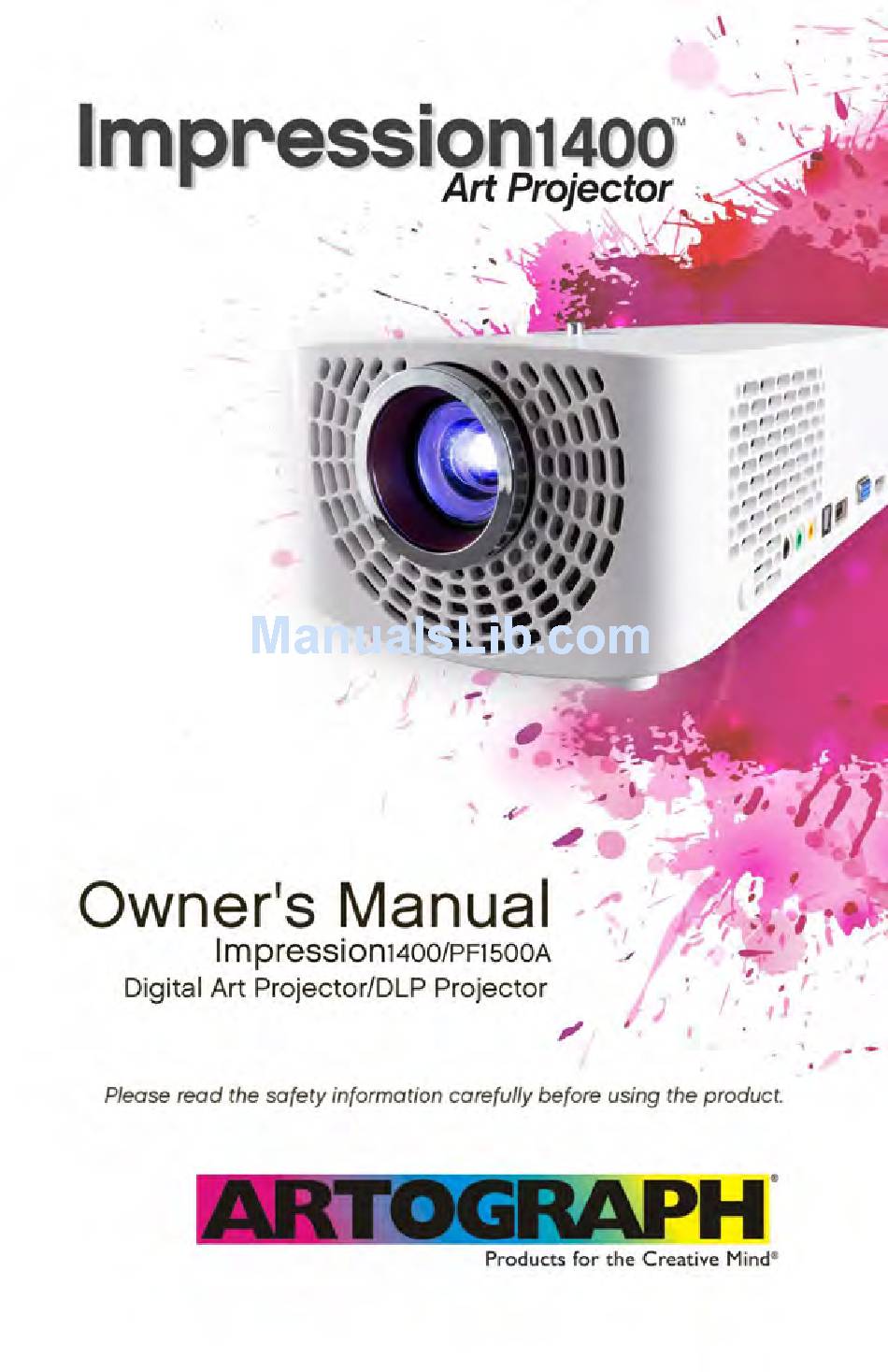

artograph Impression1400 PF1500A Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for artograph Impression1400 PF1500A

Summary of Contents for artograph Impression1400 PF1500A

  • Page 2: Licenses

    LICENSES LICENSES Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. This DivX Certified device has passed rigorous ® testing to ensure it plays DivX video. ® To play purchased DivX movies, first register your device at vod.divx.com.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS SAFETY PRECAUTIONS Please take note of the safety instructions to prevent any potential accident or misuse of the projector. • Safety precautions are given in two forms, i.e., WARNING and CAUTION as detailed below. WARNING Failure to follow the instructions may cause serious injury and even death.
  • Page 4 SAFETY PRECAUTIONS • Do not install the product in a CAUTION place with no ventilation (e.g., • When placing the projector on a on a bookshelf or in a closet) or table or shelf, be careful not to on a carpet or cushion. put it near the edge.
  • Page 5 SAFETY PRECAUTIONS Power • Do not plug too many devices into one multi-power outlet. - This may result in fire due to WARNING the power outlet overheating. • The appliance coupler is used • Keep the AC adapter, power as the disconnect device. plug, and the used power outlet - Please make sure the device clean from dust or foreign...
  • Page 6 SAFETY PRECAUTIONS • Ensure the power cord and plug • Use only the official power are not damaged, modified, cord which is provided with the severely bent, twisted, pulled, product. Do not use other power sandwiched, or hot. Do not use cords.
  • Page 7 SAFETY PRECAUTIONS When in Use • Do not look directly into the lens when the projector is in use. - The bright light may damage WARNING your eyes. • Do not place anything containing • When the lamp is on or has just liquid on top of the projector been turned off, avoid touching such as a vase, flower pot,...
  • Page 8 SAFETY PRECAUTIONS • Do not place the projector or its • It is recommended that you remote control with battery in maintain a distance of at least an extremely high temperature 5-7 times the diagonal length of environment. the screen. - This may result in fire. - If you watch the screen at a close distance for a long •...
  • Page 9 SAFETY PRECAUTIONS Cleaning • When cleaning plastic parts such as the projector case, unplug the power first and wipe WARNING with a soft cloth. Do not spray • Do not spray the projector with with water or wipe with a wet water when cleaning.
  • Page 10 SAFETY PRECAUTIONS • Only a qualified technician • Follow all maintenance can disassemble or modify guidelines for optimal use; the projector. For diagnosis, service only at an authorized adjustment, or repair, contact service center. your seller or our service center. • Lamp contains mercury and - This may result in fire or as such must be disposed of...
  • Page 11 SAFETY PRECAUTIONS • Store batteries away from metallic objects, such as keys and paper clips. - Excess current may cause a rapid increase in temperature, resulting in fire or burns. • Do not store the batteries near any heat source, such as a heater.

  • Page 12: Table Of Contents

    CONTENTS CONTENTS LICENSES REMOTE CONTROL SAFETY PRECAUTIONS 3 USING THE PROJECTOR 29 Watching Projector PREPARATION - Turning on the Projector Accessories - Focus and Position of the Optional Extras Screen Image - Watching With the Parts and Components Projector - Main Unit - Side Additional Options - Back - Adjusting Aspect Ratio - Using the Edge Adj (4 Corner Using the Joystick Button Keystone) Function...

  • Page 13: Contents

    CONTENTS MY MEDIA CONNECTING DEVICES 85 Before Using Connecting to HD Receiver, - Connecting a USB Device 42 DVD, or VCR Player, External Devices - Removing a USB Device 42 - HDMI Connection To Use My Media - HDMI to DVI Connection 86 - Watching the Videos - AV Connection - Viewing the Photos - Component Connection - Listening to Music - Viewing Files...

  • Page 14: Preparation

    PREPARATION PREPARATION The pictures may differ slightly from the actual product. Accessories Accessories included with the projector are show below. Accessories are subject to change without prior notice. New accessories may be added or old ones removed. GRID BLANK Remote Control Owner's Manual CD Owner's Manual Two AAA Batteries...

  • Page 15: Optional Extras

    PREPARATION Optional Extras To purchase optional accessories, visit an electronics store or online shopping site or contact the retail store where you purchased the product. Optional accessories are subject to change without prior notice. Projection Screen Tripod HDMI Cable Video Cable Audio Cable Computer Cable 3D glasses...

  • Page 16: Parts And Components

    PREPARATION Parts and Components This projector is manufactured using high-precision technology. You may, however, see tiny black dots and/or bright colored dots (red, blue, or green) that continuously appear on the projector screen. This is a normal result of the manufacturing process and does not indicate a malfunction. Main Unit Joystick Button Vent...

  • Page 17: Side

    PREPARATION Side 2 3 4 5 Description PUSH button (Headphone Port) COMPONENT IN Port AV IN Port OPTICAL DIGITAL AUDIO OUT Port (USB port) RGB IN Port Port...

  • Page 18: Back

    PREPARATION Back Description IR Reciver Port DC IN Port...

  • Page 19: Using The Joystick Button

    PREPARATION Using the Joystick Button You can operate the projector by pressing the button or moving the joystick left, right, up, or down. Basic Functions Power On When the projector is turned off, place your finger on the joystick button, press it once, and release it. Power Off When the projector is turned on, place your finger on the joystick button,...

  • Page 20: Adjusting The Menu

    PREPARATION Adjusting the Menu When the projector is turned on, press the joystick button one time. You can adjust the menu items ( , ) moving the joystick button left, right, up, or down. Move to the desired menu item, and then press the joystick button once to select it.

  • Page 21: Installation

    PREPARATION Installation - Leave an adequate open area (30 cm or more) around the projector. Installation Precautions • Place the projector in a well- ventilated environment. - To prevent internal overheating, install the projector in a well-ventilated • Do not place the projector in a place.

  • Page 22: Projection Distance Per Screen Size

    PREPARATION Projection Distance per Screen Size 1  Place the projector on a sturdy, level surface, together with the PC or audio/video source. 2  Place the projector an appropriate distance away from the screen. The distance between the projector and the screen determines the actual size of the image.
  • Page 23 PREPARATION 16:9 Aspect Ratio (Wide) Projection Screen Size Screen Width Screen Height Distance (mm) (Y) (mm) (X) (mm) (D) (mm) 1061 1016 1230 1143 1371 1270 1107 1526 1397 1218 1682 1524 1328 1837 1651 1439 1992 1778 1550 2147 1905 1660 2302 2032 1771 2458 2159 1882 1058 2613 2286 1992...

  • Page 24: How To Install The Projector On A Tripod

    PREPARATION How to Install the Projector On a Tripod • You can install the projector using a camera tripod. A spacer is included to help hold the projector securely, without slipping, on the tripod. • As shown below, you can mount the projector instead of a camera on the tripod.

  • Page 25: Kensington Security System

    PREPARATION Kensington Security System • This projector has a Kensington Security Standard connector as an anti-theft mechanism. Connect a Kensington Security System cable as shown below. • For more information on installation and use of the Kensington Security System, refer to the user’s guide provided with the Kensington Security System.

  • Page 26: Remote Control

    REMOTE CONTROL REMOTE CONTROL Open the battery cover on the back of the remote control and insert the batteries which are specified in the battery room with poles pointing in the correct direction. The new and same type of batteries (1.5 V AAA) must be used.
  • Page 27 REMOTE CONTROL VOL +, - Adjusts the volume level. PAGE Moves to the previous/next page. RATIO Resizes an image. GRID Shows 3D images. BLANK MUTE Mutes the sound of the projector. SETTINGS Displays or closes the Settings menu. STILL Freezes the moving image. (Available in any mode other than USB mode.) Q.MENU...
  • Page 28 REMOTE CONTROL NOTE • When using the remote control, the optimal operation range is 6 meters or less (left/right) and within a 30 degree arc of the remote control IR receiver. • If a cable is connected to the back port, the optimal operating range is 3 meters or less (left/right) and within a 30 degree arc of the remote control IR receiver.

  • Page 29: Using The Projector

    Connect the power cord correctly. 2  After waiting for a moment, press the POWER button on the remote control or the joystick button. 3  In the Language Selection screen, select a language. WELCOME! Thank you for choosing ARTOGRAPH Language Deutsch English Español Français Confirm 4 ...

  • Page 30: Focus And Position Of The Screen Image

    USING THE PROJECTOR Focus and Position of the Screen Image When an image appears on the screen, check if it is in focus and fits the screen properly. Zoom Ring Focus Ring • To adjust the focus of the image, rotate the focus ring. • To adjust the size of the image, rotate the zoom ring. To move the screen image upward/downward, adjust the height of the foot at the bottom of the projector.

  • Page 31: Watching With The Projector

    USING THE PROJECTOR Watching With the Projector 1  When in standby mode, press the POWER button to turn the projector 2  Press the INPUT button and select the input signal you want. 3  Control the projector using the following buttons while watching projector. Button Description VOL +, - Adjusts the volume level.

  • Page 32: Additional Options

    USING THE PROJECTOR Additional Options Adjusting Aspect Ratio Resize an image to view at its optimal size by pressing RATIO while you are using the projector. NOTE • Available picture size may differ depending on the input signal. • You can also use the Q.MENU or SETTINGS button. Menu Description 16:9...

  • Page 33: Using The Edge Adj (4 Corner Keystone) Function

    USING THE PROJECTOR Using the Edge Adj (4 Corner Keystone) Function Edge Adj (4 Corner Keystone) adjusts the horizontal and vertical sides of the projected image if the projector is at an angle and not perpendicular to the screen. This feature ensures the shape of the projected image is not distorted.

  • Page 34: Changing Input Device

    USING THE PROJECTOR Changing Input Device To select an external input Selects external input. The illustration of the menu may differ from the actual screen on the product. • Press the INPUT button on the remote control to display the input selection screen. - Connected inputs are displayed first. However, SCREEN SHARE and AV input is always activated.

  • Page 35: Blank Function

    USING THE PROJECTOR Selecting an Input Label Displays which devices are connected to which input ports. Input Label Component RGB-PC HDMI1 HDMI2 Close 1  Press the INPUT button on the remote control to display the input selection screen. 2  Press the Red button. 3  Use the button to scroll to one of the input sources.

  • Page 36: Using The Quick Menu

    USING THE PROJECTOR Selecting a Blank Image 1  Press the SETTINGS button. 2  Press the , or buttons to select OPTION 2 and press the OK button. 3  Press the buttons to select Blank Image and press the OK button. 4  Press the button to move to the setting or option you want and press the OK button.

  • Page 37: Entertainment

    ENTERTAINMENT ENTERTAINMENT Using SCREEN SHARE 1  Set the external input of the projector to SCREEN SHARE. 2  Enable related SCREEN SHARE function on the device you wish to connect. 3  Connect the projector from the search list on the device you wish to connect.

  • Page 38: Setting Up Bluetooth On The Projector

    ENTERTAINMENT Setting Up Bluetooth on the Projector This option is used to output sound from the projector through Bluetooth audio devices. NOTE • The devices that can be connected are as follows: LG BTS1, LG HBS-700 , LG HBS- 730 , LG HBS-800 (Models available for purchase may vary by region.) • Products from other manufacturers may not be compatible.

  • Page 39: Searching For Bluetooth

    ENTERTAINMENT Searching for Bluetooth Devices and Connecting Go to SETTINGS → AUDIO → Sound Out → Bluetooth → Search Device to search for nearby Bluetooth audio devices and then connect any detected devices to the projector. (If the device name is longer than 20 characters, only the first 20 will be displayed.) 1 ...

  • Page 40: Connecting, Disconnecting

    ENTERTAINMENT 3  When a Bluetooth device is connected, you will hear sound from the projector through the connected device. • The connected Bluetooth device will be added automatically to the List of registered devices. Once registered, Bluetooth devices can be connected simply by selecting them from the List of registered devices without having to search for them.

  • Page 41: Adjusting Av Sync. Adjust

    ENTERTAINMENT Disconnecting Select Disconnect to disconnect the device. • You can only disconnect a device from the List of registered devices. Deleting Select Delete Marked or Delete All to delete any registered devices. • Delete Marked: Press the red button in List of registered devices to delete the selected device. •...

  • Page 42: My Media

    MY MEDIA MY MEDIA Before Using Connecting a USB Device Connect a USB device (external HDD, USB memory) to the USB port of projector to enjoy the content files stored in the USB device with your projector. You cannot write or delete data in the USB device. Connect a USB flash drive as shown below.
  • Page 43 MY MEDIA Tips for using a USB device • If the USB storage device has a built-in auto recognition program or uses its own driver, it may not work. • Some USB storage devices may not work or may work incorrectly. • If you use a USB extension cable, the USB device may not be recognized or may not work properly.

  • Page 44: To Use My Media

    MY MEDIA To Use My Media 1  Press the SETTINGS button on the remote control. 2  Select MY MEDIA. Select desired file from the list. Watch the chosen file. Sets play related settings by checking option during disk playback. My Media supporting file • Maximum data transmission rate: 20 Mbps (Mega bit per second) •...
  • Page 45 MY MEDIA Extension Codec Video MPEG-1, MPEG-2 .vob Dolby Digital, MPEG-1 Layer I, II, Audio DVD-LPCM Video MPEG-1 .mpg .mpeg Audio MPEG-1 Layer I, II Audio File File type Item Info Bit rate 32 Kbps to 320 Kbps Sampling rate 32 kHz to 48 kHz Bit rate 32 kbps to 640 kbps Sampling rate...
  • Page 46 MY MEDIA Available photo file File type Item Info Support SOF0: Baseline, SOF1: Extend Sequential, File type SOF2: Progressive 2D (jpeg, jpg, jpe), Minimum: 64 x 64 Picture 3D (jps) Maximum: Normal Type: 15360 (W) x 8640 (H) Size Progressive Type: 1920 (W) x 1440 (H) Support File type 3D (mpo) 4:3 size : 3648 x 2736, 2592 x 1944,...

  • Page 47: Watching The Videos

    MY MEDIA Watching the Videos In the Movie List, you can watch movies stored on the connected USB device. Controls playback and sets options while viewing videos. Tips for Playing Video Files • Some subtitles created by users may not work properly. • The video and subtitle files should be placed in the same folder. For subtitles to display correctly, the video and subtitle files must have the same name.

  • Page 48: File List

    MY MEDIA 4  Use the , or button to select the file you want and press the OK button. Page 1/1 Movie List PAGE Page Change USB STORAGE DEVICE Drive1 Drive3 Drive4 Drive5 Drive2 Page 1/1 Sheba_... 01:34:33 Go to root folder Go to upper folder Exit Description...
  • Page 49 MY MEDIA 5  Control playback by using the following buttons. 나가기  Option Hide Exit Q.MENU Item Description Shows the current playing position. Use buttons to move forward or backward. Stops playing and returns to Movie List. Returns to normal playback. Pauses the media player.
  • Page 50 MY MEDIA Options for Movie List 1  Press the Q.MENU button. 2  Use the button to move to a desired option and press the OK button. 3  Use the , or button to set up each item. Set Video Play. Item Description Selects the size of a playback screen. Picture •...
  • Page 51 MY MEDIA Registering the DivX code Checks DivX Reg. Code for replaying DivX protected videos. Register at http://vod.divx.com. Use Reg. Code to rent or purchase movies at www.divx.com/vod. 1  In the Settings menu, move to OPTION 1 and press DivX(R) VOD. Registration Deregistration Close  2  Press the button to move to Registration and press the OK button.
  • Page 52 MY MEDIA To deregister the DivX code Use the DivX deregistration code to deactivate the DivX DRM function. 1  In the Settings menu, move to OPTION 1 and press DivX(R) VOD. 2  Use the button to go to Deregistration and press the OK button. 3  Select Yes. Your device is already registered.

  • Page 53: Viewing The Photos

    MY MEDIA Viewing the Photos You can view photos stored on a connected device. Supported Photo Files PHOTO (*.JPEG) Baseline: 64-pixel (width) x 64-pixel (height) - 15360-pixel (width) x 8640-pixel (height) Progressive: 64-pixel (width) x 64-pixel (height) - 1920-pixel (width) x 1440-pixel (height) • Only JPEG files are supported. •...
  • Page 54 MY MEDIA Description Thumbnails Abnormal file File not supported File List Moves to the upper level folder. Current page/Total no. of folder pages Current page/Total no. of file pages Moves to the top level folder. Moves to the upper level folder. Exits Photo List.
  • Page 55 MY MEDIA Item Description Rotates photos. • Rotates a photo 90°, 180°, 270°, 360° clockwise. • Photos cannot be rotated if their width is greater than the height of the max. supported resolution. Views the photo in full mode or original mode. Press the blue button to enlarge the image.

  • Page 56: Listening To Music

    MY MEDIA Set Video. You can change video settings. (Refer to PICTURE Settings on page 70.) Set Audio. You can change audio settings. (Refer to AUDIO Settings on page 76.) Set 3D Video You can set 3D image or 2D image. 3D setting You can set 3D settings. You can set 3D settings. (Refer to OPTION 1 Settings on page 82.) Listening to Music You can play audio files stored on the connected device.
  • Page 57 MY MEDIA Description Thumbnails Abnormal file File not supported File List Moves to the upper level folder. Current page/Total no. of folder pages Current page/Total no. of file pages Moves to the top level folder. Moves to the upper level folder. Exits Music List.
  • Page 58 MY MEDIA Item Description Reduces power consumption by adjusting peak screen brightness. Option Sets up the options of Music List. Hides the playback bar. Hide • Press the OK button to make the playback bar appear. Exit Returns to the Music List screen. Options for Music List 1 ...

  • Page 59: Viewing Files

    MY MEDIA Viewing Files You can see document files stored on a connected device. Supported File Formats XLS, XLSX, DOC, DOCX, PPT, PPTX, TXT, PDF, HWP Microsoft Office: 97/2000/2002/2003/2007 Version Adobe PDF: 1.0/1.1/1.2/1.3/ 1.4 Version Hangul: 97/2000/2002/2005/2007 Version • File Viewer realigns a document, so it may look different from what is displayed on a PC.
  • Page 60 MY MEDIA Browsing File List 1  Connect a USB storage device. 2  Press the USB button. 3  button to select File List and press the OK button. Use the 4  Use the , or button to select the file you want and press the OK button. Page 1/1 File List PAGE...
  • Page 61 MY MEDIA 5  Control playback by using the following buttons. • Click Go Page, then the pop-up window for selecting the number of page appears. Input the page to move to the page you want. • Press the VOL +, - button to zoom in or zoom out. Press the OK button and then use the Up/Down/Left/Right buttons to move to Go Page or Zoom.
  • Page 62 MY MEDIA Options for File List 1  Press the Q.MENU button. 2  Use the , or button to set up each item. Set FileViewer Option Item Description Loads and displays pages one by one. The initial loading time is short but a content-heavy page may be displayed slowly. Loads all pages of a file to memory before it Single Page starts to display them.

  • Page 63: 3D Function

    3D FUNCTION 3D FUNCTION 3D technology uses different video frames for each eye to add depth to the video. While Watching 3D WARNING • If you view 3D video or images too closely for a long period of time, you may experience eyestrain. • If you watch the projector or game screen for a long time with 3D glasses on, you may experience dizziness or eye fatigue.
  • Page 64 3D FUNCTION • Warning about photosensitivity seizures - Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular patterns from a video game. If anyone in your family has a history of epilepsy or has ever experienced any kind of seizure, please consult your doctor before viewing 3D images.
  • Page 65 3D FUNCTION • Elderly viewers may have a reduced depth perception than younger viewers. Avoid watching video nearer than the recommended distance. • Watch 3D images within the optimum viewing angle and distance. • If you are outside the viewing angle or distance, you may not be able to see 3D images.

  • Page 66: Requirements For Watching 3D Images

    3D FUNCTION Requirements for Watching 3D Images * Optimum viewing angle: Top/Bottom/Left/Right 9° Recommended viewing distance: 3 m to 5 m Recommended screen size: 101 cm  * Watching 3D videos should be done in dark room environments only. NOTE • The pairing with the DLP-LINK glasses is affected by the intensity of light reflected from the screen.

  • Page 67: Using The Dlp-Link (Dlp-Ready) Type Glasses

    3D FUNCTION Using the DLP-LINK (DLP-Ready) Type Glasses 1  While watching 3D images from the projector, press buttons on the glasses. 2  When you press the button, the glasses flicker while synchronizing with the 3D images. (The flickering is a unique operation method of DLP- LINK type glasses. It may be different depending on the glasses type.) 3 ...

  • Page 68: Supported 3D Mode

    3D FUNCTION Supported 3D Mode Horizontal Vertical Supported 3D Signal Resolution Frequency Frequency Formats (kHz) (Hz) 89.9 / 59.94 / Frame Packing 1280 x 720p Side by side (half), Top and Bottom Side by side 1920 x 1080i 33.7 (half), Top and 1080 Bottom 53.95 / 23.98 / Frame Packing...

  • Page 69: Customizing Settings

    CUSTOMIZING SETTINGS CUSTOMIZING SETTINGS SETTINGS 1  Press the SETTINGS button. 2  Use the , or button to select the desired item and press the OK button. 3  Use the , or button to set up the desired item and press the OK button. 4 ...

  • Page 70: Picture Settings

    CUSTOMIZING SETTINGS PICTURE Settings 1  Press the SETTINGS button. PICTURE 2  ꔂ Move ꔉ OK Use the , or buttons to select PICTURE • ꕊ Energy Saving : Minimum and press the OK button. • Picture Mode : Standard 3  Use the , or •...
  • Page 71 CUSTOMIZING SETTINGS Menu Description Selects the picture mode optimized for the viewing environment or the program. You can also customize advanced options for each mode. Mode Maximizes the visual effect of video. Vivid Heightens contrast, brightness, and sharpness to display vivid images. Displays images in standard levels of Standard contrast, brightness, and sharpness.
  • Page 72 CUSTOMIZING SETTINGS Menu Description Resets values customized by the user. Picture Reset Each picture mode is reset. Select the picture mode you wish to reset. Aspect Ratio Resizes the picture. Adjusts the picture quality of RGB-PC input. Option Available resolutions are 768 Resolution resolution (1024 x 768/ 1280 x 768/ 1360 x 768, 60 Hz).
  • Page 73 CUSTOMIZING SETTINGS Advanced Control Menu Description Dynamic Adjusts contrast and color to the optimal level according Contrast to the screen’s brightness. Dynamic Adjusts colors for more natural-looking colors. Color Selects the range of colors that can be expressed. Color • Standard: Displays the original colors of an input Gamut signal regardless of the display features.
  • Page 74 CUSTOMIZING SETTINGS Menu Description In Expert mode, you can customize the options of each mode. Gamma: Select 1.9, 2.2,or 2.4. a. Method: 2 Points - Pattern: Inner, Outer - Points: Low, High - Red/Green/Blue: The adjustment range for each color is from -50 to +50. - Apply to all inputs: The values of the Color Temperature is applied to all the input modes.
  • Page 75 CUSTOMIZING SETTINGS Picture Option Menu Description Noise Reduction Reduces screen noise in the video. MPEG Noise Eliminates noise generated while creating digital Reduction picture signals. Adjusts the brightness or darkness of the screen Black Level to suit the black level of the picture input using the degree of darkness (black level) of the screen.

  • Page 76: Audio Settings

    CUSTOMIZING SETTINGS AUDIO Settings 1  Press the SETTINGS button. AUDIO 2  ꔂ Move ꔉ OK Use the , or button to select AUDIO and Sound Mode : Standard • press the OK button. Sound Effect • 3  Use the , or Auto Volume : Off •...
  • Page 77 The user can select various sound effects. Mode Clear Makes the voice from the projector crisp Voice II and clear. Artograph’s proprietary audio processing technology allows 5.1 channel-like Virtual surround sound from two speakers. Surround • When Clear Voice II is set to on, Virtual Surround cannot be selected.
  • Page 78 CUSTOMIZING SETTINGS Menu Description Sets the audio output of the projector. Mode Projector Sound is output through the projector Speaker speaker. Sound is output through the speaker External connected to the optical port. Speaker • Digital Sound Out: Sets up Digital (Optical) Sound Output. Sound is output through the Bluetooth Sound Out headset.
  • Page 79 CUSTOMIZING SETTINGS Menu Description Synchronizes video and audio directly when they do not match. If you set AV Sync. Adjust to On, you can adjust the sound output (projector speakers or SPDIF) to the screen image. Mode Adjusts the synchronization of the sound from the projector's internal speakers.

  • Page 80: Time Settings

    CUSTOMIZING SETTINGS TIME Settings 1  Press the SETTINGS button. TIME 2  ꔂ Move ꔉ OK Use the , or button to select TIME and Sleep Timer : Off • press the OK button. Auto Off : 60 min. • 3  Use the , or Automatic Standby : 4 hours •...

  • Page 81: Wireless Settings

    CUSTOMIZING SETTINGS WIRELESS Settings 1  Press the SETTINGS button. WIRELESS 2  ꔂ Move ꔉ OK Use the , or button to select WIRELESS SCREEN SHARE : Impression1400[0000] • and press the OK button. Group • 3  Use the , or Channel • button to set up the desired item and press the OK button.

  • Page 82: Option 1 Settings

    CUSTOMIZING SETTINGS OPTION 1 Settings 1  Press the SETTINGS button. OPTION 1 2  ꔂ Move ꔉ OK Use the , or button to select OPTION 1 Language • and press the OK button. 3D Mode • 3  Use the , or Auto Input Search : Off •...

  • Page 83: Option 2 Settings

    CUSTOMIZING SETTINGS OPTION 2 Settings 1  Press the SETTINGS button. OPTION 2 2  ꔂ Move ꔉ OK Use the , or button to select OPTION 2 Edge Adj • and press the OK button. Auto Keystone : On • 3  Use the , or PJT Mode : Front •...
  • Page 84 CUSTOMIZING SETTINGS Menu Description If the projector is used at an altitude higher than 1200 meters, turn this on. High Otherwise, the projector may overheat or its protection Altitude function may be activated. If this happens, turn the projector off and then on again after waiting for several minutes.

  • Page 85: Connecting Devices

    CONNECTING DEVICES CONNECTING DEVICES You can connect various external devices to the projector.  Computer/Notebook Video/DVD Digital Device LG Audio Device Games Console Headphone Mobile Phone HDMI - Page 86 Composite (AV) - Page 87 Component - Page 87 RGB - Page 90 USB Device - Page 42 Headphone - Page 92 Digital Amp - Page 92 Mobile Phone (MHL) - Page 94...

  • Page 86: Connecting To Hd Receiver, Dvd, Or Vcr Player, External Devices

    CONNECTING DEVICES Connecting to HD HDMI to DVI Connection Receiver, DVD, or Using an HDMI to DVI cable, VCR Player, External connect the projector's port to the DVI OUT port. Devices To output audio, use an audio Connect an HD receiver, DVD, cable for connection. You can also VCR player, or external devices use the to the projector and select an Press the INPUT button on the...

  • Page 87: Av Connection

    CONNECTING DEVICES AV Connection Component Connection Connect the output ports of an You can enjoy a video by external device and the AV IN connecting the component port ports of the projector using an AV of an external device to the cable. Press the INPUT button on COMPONENT IN port of the the remote control to select AV.

  • Page 88: Connecting A Pc

    CONNECTING DEVICES Connecting a PC HDMI to DVI Connection Using an HDMI to DVI cable, The projector supports Plug & connect the projector's Play. Your PC will automatically port to the DVI OUT port. detect the projector and requires To output audio, use an audio no driver installation. cable for connection.
  • Page 89 CONNECTING DEVICES NOTE • It is recommended to use an HDMI connection for the best image quality. • Depending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use. • In PC mode, there may be noise associated with the resolution, vertical pattern, contrast, or brightness.

  • Page 90: Rgb Connection

    CONNECTING DEVICES RGB Connection Connect the PC output and the PC video input port of the projector with the RGB cable. For audio signal, connect the PC and the projector with an optional audio cable. Press the INPUT button on the remote control to select RGB-PC. Optional Optional Extras...

  • Page 91: Connecting A Laptop

    CONNECTING DEVICES Connecting a Laptop The table below shows examples of switching the output. For You can connect the projector to a more information, refer to the laptop to use various functions. External Output, Connecting to an External Monitor, or similar HDMI Connection sections of the owner's manual of your computer.

  • Page 92: Connecting Headphones

    CONNECTING DEVICES Connecting Connecting a Digital Headphones You can listen to the audio through Using an optical cable, connect a headphone. the digital audio input port of a digital amp to the OPTICAL DIGITAL AUDIO OUT port of the projector. The output of an amp with a digital converter must be set to the desired audio format.
  • Page 93 CONNECTING DEVICES NOTE • Refer to the user manual of the audio device to connect. • When connecting this product to other devices, make sure to turn off and unplug all the devices. • The audio output of this product has wide-ranging audio bandwidth, so the receiver volume must be adjusted properly.

  • Page 94: Using The Mirroring Function Of A Mobile Phone

    CONNECTING DEVICES Using the Mirroring Function of a Mobile Phone MHL Connection The Mobile High-definition Link (MHL) is an interface that can connect a mobile phone to the projector and play video and audio from the mobile phone through the projector. This only applies to products with a HDMI input that supports MHL. (To find out whether your device is MHL-certified, please contact your device manufacturer.) For MHL support, check the...

  • Page 95: Maintenance

    MAINTENANCE MAINTENANCE Clean your projector to keep it in optimal condition. Cleaning Cleaning the Lens If there is any dust or staining on the lens surface, you must clean the lens. Use an air spray or a cleaning cloth to clean the lens. To remove dust or stains, use an air spray or apply a small amount of cleaning agent onto a swab or soft cloth to lightly rub the lens.

  • Page 96: Specifications

    SPECIFICATIONS SPECIFICATIONS Model Impression 1400 (PF1500A) Resolution (Pixel) 1920 (Horizontal) × 1080 (Vertical) Aspect Ratio 16:9 (Horizontal:Vertical) Panel size (mm) 11.896 Projection Wide : 0.91 m to 3.70 m (76.2 cm to 304.8 cm) Distance Tele : 0.91 m to 3.70 m (69.3 cm to 277.1 cm) (Video size) Ratio of Upward 100 %...
  • Page 97 SPECIFICATIONS Temperature Operation 0 °C to 40 °C Storage -20 °C to 60 °C Operation environment Relative humidity Operation 0 % to 80 % Storage 0 % to 85 % * Contents in this manual may be changed without prior notice due to upgrade of product functions.
  • Page 98 SPECIFICATIONS Supported HDMI/DVI-DTV Mode Horizontal Vertical Frequency Resolution Frequency (kHz) (Hz) 31.47 480p 31.47 59.94 31.50 45.00 60.00 720p 44.96 59.94 33.75 60.00 1080i 33.72 59.94 67.500 67.432 59.939 27.000 24.000 1080p 26.97 23.976 33.75 30.000 33.71 29.97 • To provide the best picture quality, a 1920 x 1080 (1080p) resolution is recommended.
  • Page 99 SPECIFICATIONS Open Source Software Notice Information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to...
  • Page 100 The model and serial numbers of the projector are located on the back or on the side of the projector. Record them below should you ever need service. MODEL SERIAL...
