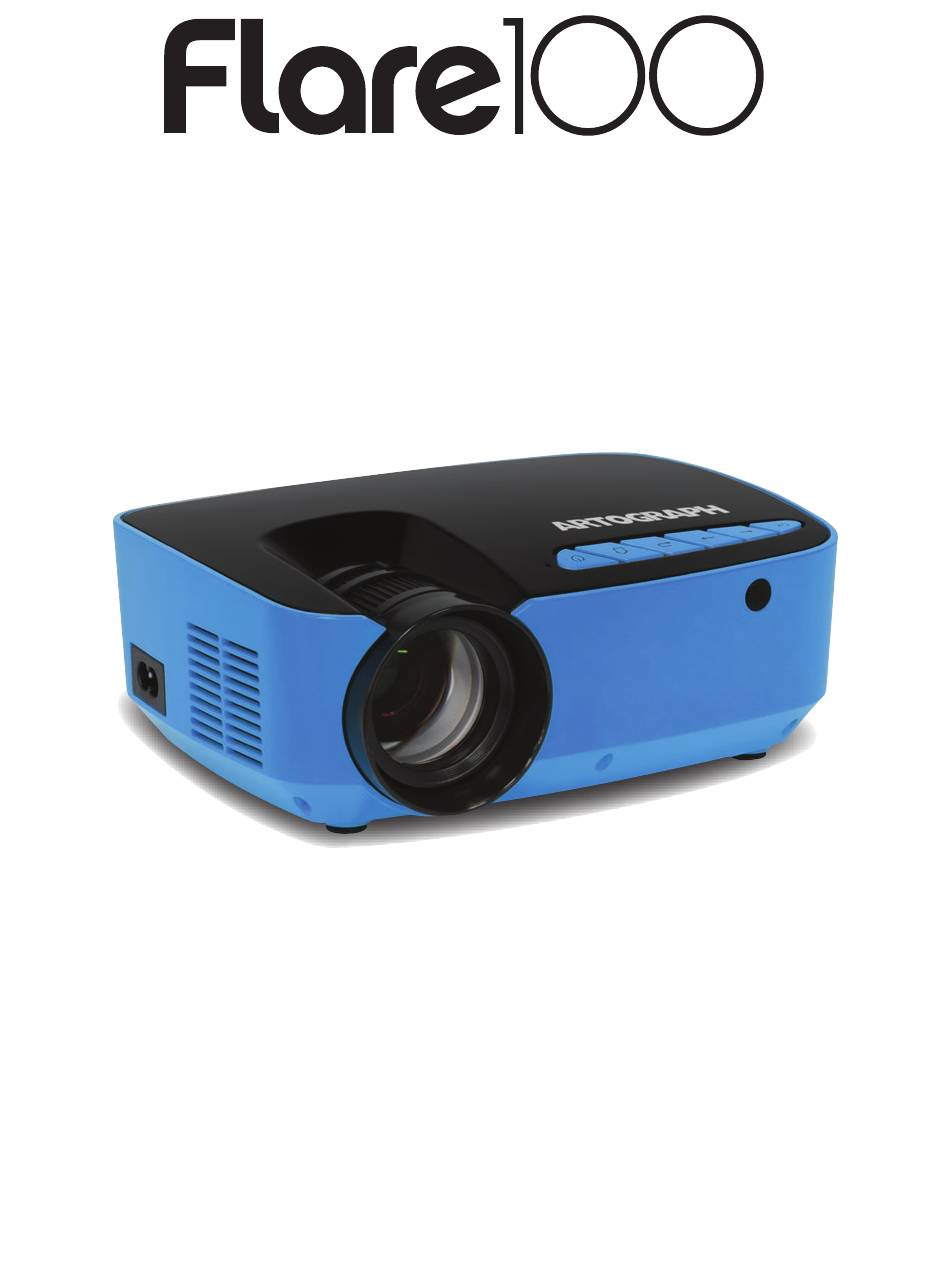

User Manual
Please read this user manual carefully before using
the projector and save it for future reference.
For more languages, visit www.artograph.com
Pour d'autres langues, rendez-vous sur www.artograph.com
Para más idiomas, visite www.artograph.com
Weitere Sprachen finden Sie unter www.artograph.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for artograph Flare100
Summary of Contents for artograph Flare100
- Page 1 User Manual Please read this user manual carefully before using the projector and save it for future reference. For more languages, visit www.artograph.com Pour d’autres langues, rendez-vous sur www.artograph.com Para más idiomas, visite www.artograph.com Weitere Sprachen finden Sie unter www.artograph.com...
-
Page 2: Safety Instructions
Safety Instructions Notice 1. Please read this user manual carefully before using the projector. 2. Use a standard grounded power cord to ensure stable power supply. 3. Use the same power voltage as marked on the projector. 4. Do not disassemble the projector, otherwise the warranty will be void. 5. -
Page 3: Accessory List
Accessory List Projector, Cable, Remote Control (battery not included), and User Manual. Specifications Display Technology Native Resolution 1280 x 720 DPI Light Life Span 4,000 Hrs. Color Reproduction 16.7kk System Screen Mirroring Focus Manual Focus Keystone Manual Keystone Power Voltage ~100-220V 50Hz Input HDMI / USB / AV / TF... -
Page 4: Projector Overview
Projector Overview LEFT RETURN ON/OFF RIGHT PAGE FOCUS KEYSTONE AUDIO OUT HDMI... -
Page 5: Remote Control
Remote Control Power: Standby/Wake Up, Power On/Power Off. Mute: Cancel sound output. Push to resume sound output. Rewind: Play in reverse at fast rate. Fast Forward: Play forward at fast rate. Arrow Keys: Up/Down/Left/Right; Press the left and right arrow keys in the playback interface for fast forward/rewind function. -
Page 6: Operation Introduction
Operation Introduction After 5–10 seconds, the system screen will be displayed: 1. Power On After the projector is powered on through the power cord, it enters the standby state. Press the button on the projector or press the button on the remote control to power on. -
Page 7: Power Off
Operation Introduction 2. Power Off Press the button twice to shut down immediately. Press the button to display the function prompt and select shutdown. 3. Focus Turn the large outer ring on the top of projector to adjust the focus. Notice: If the picture is still blurry, adjust the projection distance appropriately. - Page 8 Operation Introduction 4. Keystone Turn the small inner ring on the projector to adjust the keystone angle.
-
Page 9: Usb Connection
Connecting 5. Source Press the Source Key on the projector or press the button on the remote control to switch A/V / HDMI / Media / Home. 5.1. A/V Connection 5.2. USB Connection Insert your USB drive into the USB slot. Change Source to "Media" or click "Media"... -
Page 10: Hdmi Connection
Connecting 5.3. HDMI Connection 6. Network Connection Click the WiFi icon on the main interface to enter, enable the WiFi function, select your WiFi name and enter your password to connect. 7. Bluetooth Connection Click the "Menu" key to switch to the Bluetooth interface, turn on Bluetooth, select your Bluetooth device name to pair. -
Page 11: Screen Mirroring
Screen Mirroring 8. Wired Screen Wired screen (for iOS) 1. Click on the main "Wired screen" to enter. 2. Connect the phone to the projector with a USB cable and select "Trust" in the prompt interface. You should now be connected. Do you trust the device? Wired screen (for Android) 1. -
Page 12: Wireless Screen
Screen Mirroring 9. Wireless Screen For Android System (Home WiFi) 1. Click "Wireless Screen " on the main screen to enter and view the device name. For example, "YUZINO_X26_xxxx". 2. Connect the projector and mobile phone to the same Home WiFi. 3. - Page 13 Screen Mirroring For iOS System (Home WiFi) 1. Click "Wireless Screen " on the main screen to enter and view the device name. For example, "YUZINO_X26_xxxx". 2. Connect the projector and mobile phone to the same Home WiFi. 3. Open the "Screen Mirroring" function of the phone, select and connect the device name of the projector.
-
Page 14: Menu Settings
Menu 10. Menu Settings Operation method: Press the button on the remote control to display the menu, press the "OK" button to enter, and press the direction button to select. Press "OK" to confirm. Picture: Image Mode / Contrast / Brightness / Color / Sharpness / Color Temperature Sound: Sound Mode / Treble / Bass / Balance Option: OSD Lang / Flip / Factory Reset / Software Upgrade / Auto Sleep /... -
Page 15: Mounting The Projector
Mounting the Projector Monopod The projector can be mounted on the included Monopod, and can project straight, project down onto a table, or project up towards the ceiling. - Page 16 Projector Distance and Size...
