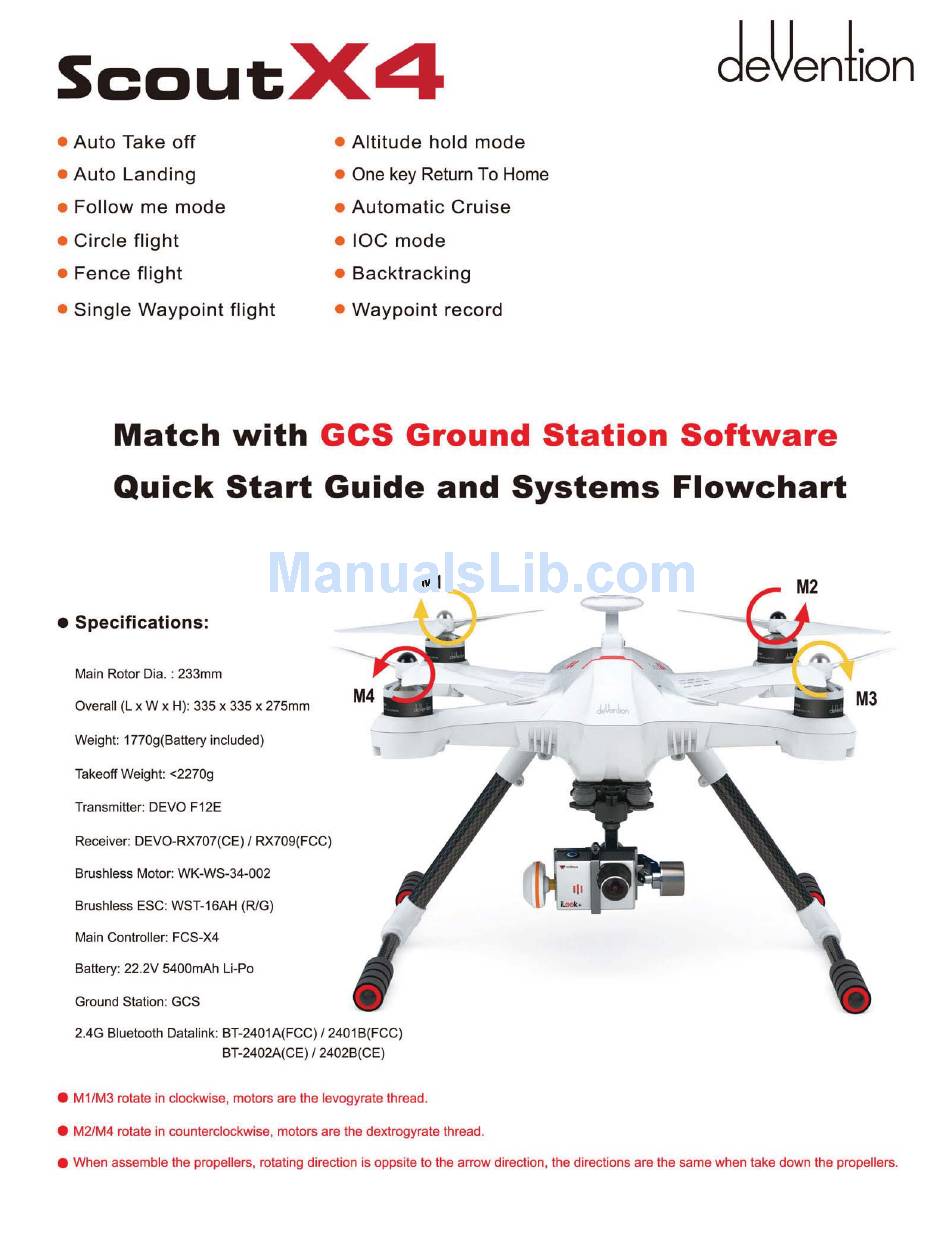

devention scout x4 Quick Start Manual

Scou tX4
cleUention
• Auto Take off
• Auto Landing
• Follow me mode
• Circle flight
• Fence flight
• Single Waypoint flight
• Altitude hold mode
• One key Return To Home
• Automatic Cruise
• IOC mode
• Backtracking
• Waypoint record
Match with GCS Ground Station Software
Quick Start Guide and Systems Flowchart
• Specifications:
Main Rotor Dia. : 233mm
Overall (L x W x H); 335 x 335 x 275mm
Weight: 1770g(Battery included)
Takeoff Weight: <2270g
Transmitter: DEVO FI2E
Receiver: DEVO-RX707(CE) I RX709(FCC)
Brushless Motor: WK-WS-34-002
Brushless ESC: WST-16AI-1 (RIG)
Main Controller: FCS-X4
Battery: 22.2V 5400mAh Li-Po
Ground Station: GCS
2.4G Bluetooth Datalink: BT-2401A(FCC) / 2401B(FCC)
BT-2402A(CE) / 2402B(CE)
• M1/M3 rotate in clockwise, motors are the levogyrate thread.
• M2/M4 rotate in counterclockwise, motors are the dextrogyrate thread.
• When assemble the propellers, rotating direction is oppsite to the arrow direction, the directions are the same when take down the propellers.
