INITIAL SETUP

INSTALLING THE POWER CORD

(FIGURE 2)
1. Ensure the compressor is on a hard flat stable surface, such as a
table.
2. Plug the power cord into the electric connector in the back of the
compressor.
3. Plug the opposite end of the power cord into the wall outlet.
Wall Outlet
Power Cord

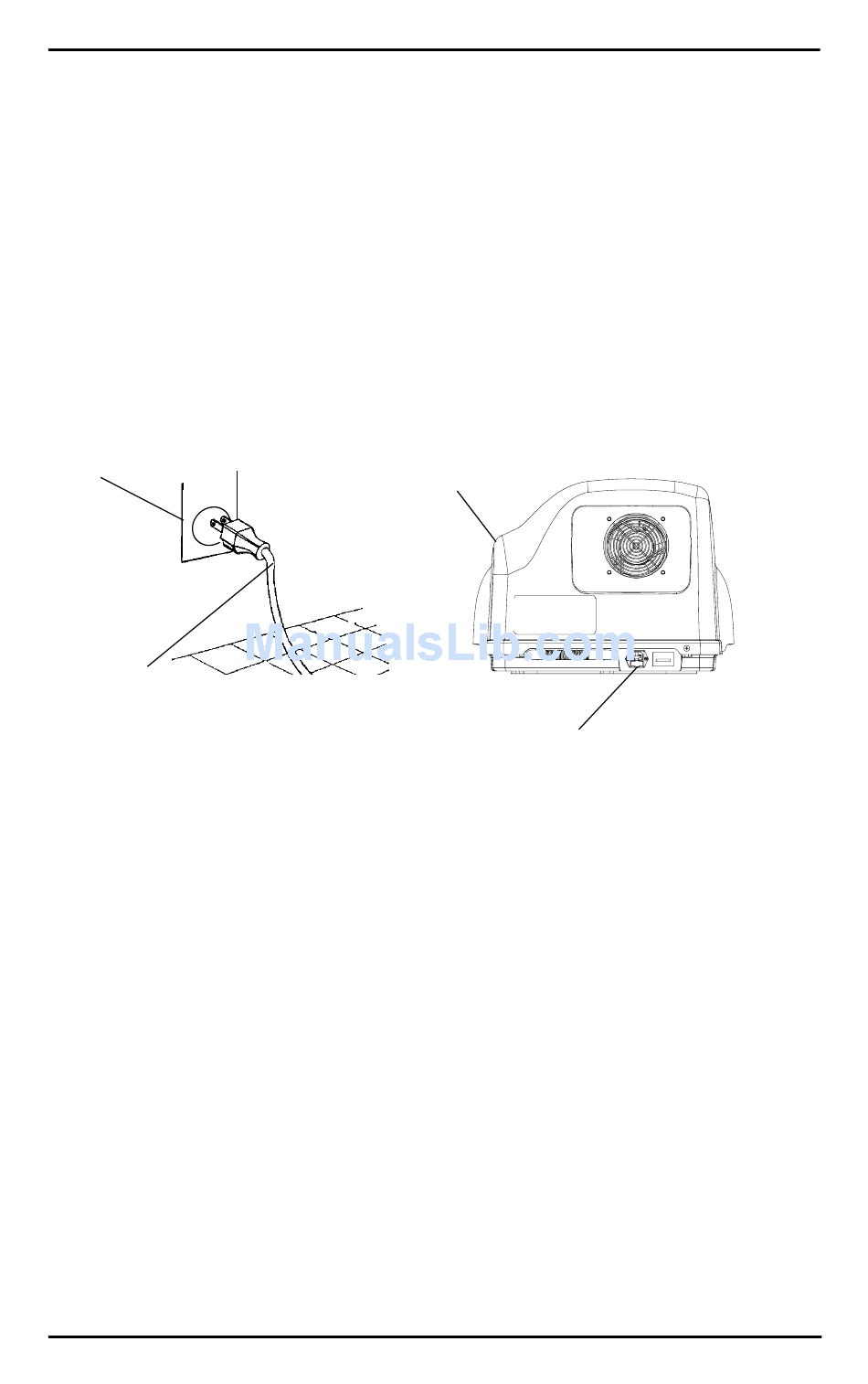

FIGURE 2 - INSTALLING THE POWER CORD
CONNECTING THE COMPRESSOR TO THE
CONCENTRATOR (FIGURE 3)
1. Insert one (1) end of the interconnect hose into the outlet fitting
on the back of the concentrator.
2. Insert the opposite end of the interconnect hose into the inlet
fitting on the side of the compressor.
NOTE: The metal tabs on the concentrator outlet fitting and the compressor
inlet fitting will pop out with an audible “click” when the end of the interconnect
hose is properly installed.
3. Loop any excess interconnect hose and secure to the back of the
concentrator with the fastening straps.
Compressor
(REAR)
Electric Connector
9

PROCEDURE 2

PART TWO
