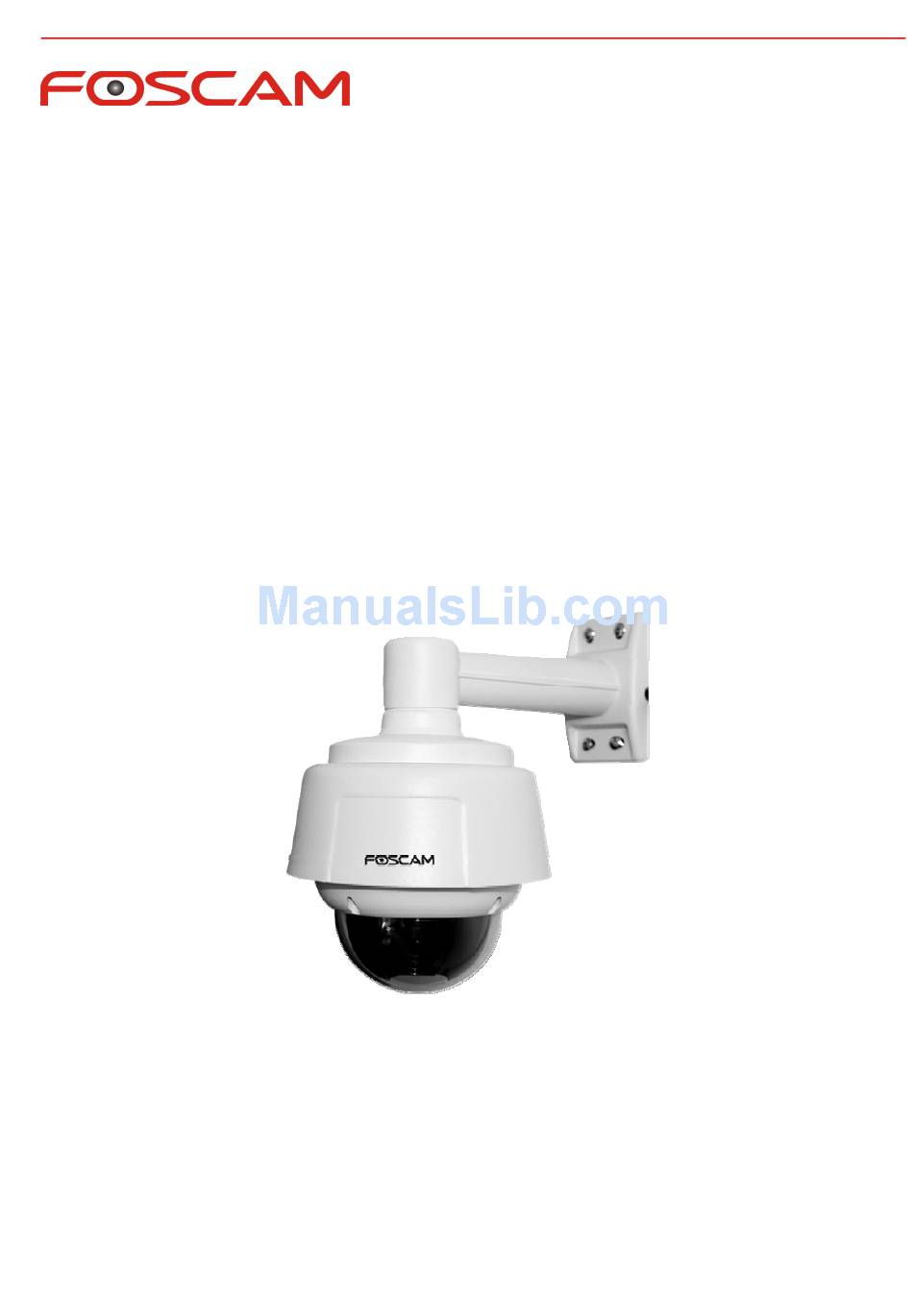

Page 1: Quick Installation Guide
V3.01 Model: FI8620 Quick Installation Guide Outdoor Dome Water-proof Network Camera ShenZhen Foscam Intelligent Technology Co., Ltd... - Page 2 FI8620 Quick Installation Guide Quick Installation Guide - For Windows OS Package Contents IP Camera FI8620 DC Power Adapter (12V-2.0A) Network Cable Mounting Bracket .x 1 Quick Installation Guide CD-ROM with Setup Software .x 1 Warranty Card Quick Installation Diagram...
-
Page 3: Start Installation
FI8620 Quick Installation Guide Start Installation 1. Hardware Installation Open the package. Take out the camera out of the box carefully. Get the camera connected to the router, and get it powered. Use the network cable to connect the camera to the router or the switch in the LAN network at your home or your office. - Page 4 FI8620 Quick Installation Guide Figure 1.3 Click Close to finish installation, and get computer restarted A shortcut icon will appear on your desktop after the IP Camera Tool software installation is successfully completed. Figure 1.4 Shortcut icon 3. Login the Camera Double click the IP Camera Tool icon and the following screen should appear.
- Page 5 FI8620 Quick Installation Guide Figure 1.6 Enter the username and password Camera supports three-level users management: admin, user and guest.The default “admin” user name and password are all “admin”, the default “user” user name and password are all “user”, and the default “guest”...
-
Page 6: Remote Access Settings
FI8620 Quick Installation Guide Figure 1.8 Surveillance Windows Congratulations! You have succeeded in accessing in the camera by wired connection. Just leave all the menus alone before you finish the quick installation. Note The default administrator user name and password are all admin. - Page 7 FI8620 Quick Installation Guide Obtain the WAN IP from IPCAM Please choose “For Administrator” and click “Remote Access”. Figure 1.9 Obtain the WAN IP from IPCAM Click show, you will see the WAN IP as below. Figure 2.0 WAN IP...
- Page 8 FI8620 Quick Installation Guide Figure 2.1 Get to know the WAN IP address of the router Access the IP Camera from the Internet You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in IE browser or other browsers you use.
- Page 9 FI8620 Quick Installation Guide Click here to register Figure 2.2 Register a user name on www.no-ip.com Please register the account step by step according to instructions on www.no-ip.com After registration, please login your email which used to register. You will receive an email from website as below, please click the link to activate your ACCOUNT as indicated in email.
- Page 10 Firstly, goes to option of Remote Access on the administrator panel and enable DDNS. Secondly, select No-ip.com as a server. Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect.
- Page 11 FI8620 Quick Installation Guide Or Use Google to check out what is port forwarding. How to do port forwarding within the router Example: The camera’s LAN IP address is http://192.168.1.35:88 , Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue Server on some brands of router).
-
Page 12: Other Settings
Please refer to the electronic user manual burned in the CD-ROM for other settings. Other advanced software settings, such as Alarm, Email Settings, User Settings. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, pls contact our service department: tech@foscam.com...
