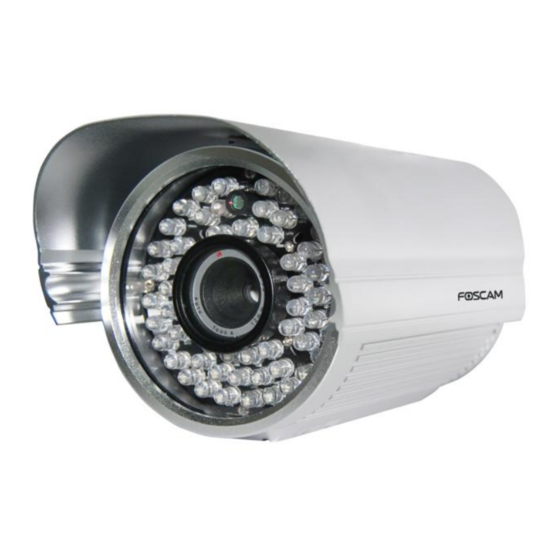

Foscam FI8905E Quick Installation Manual
Outdoor poe network camera
Hide thumbs
Also See for FI8905E:
- User manual (71 pages) ,
- User manual (55 pages) ,
- Quick installation manual (2 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Foscam FI8905E
Summary of Contents for Foscam FI8905E
-

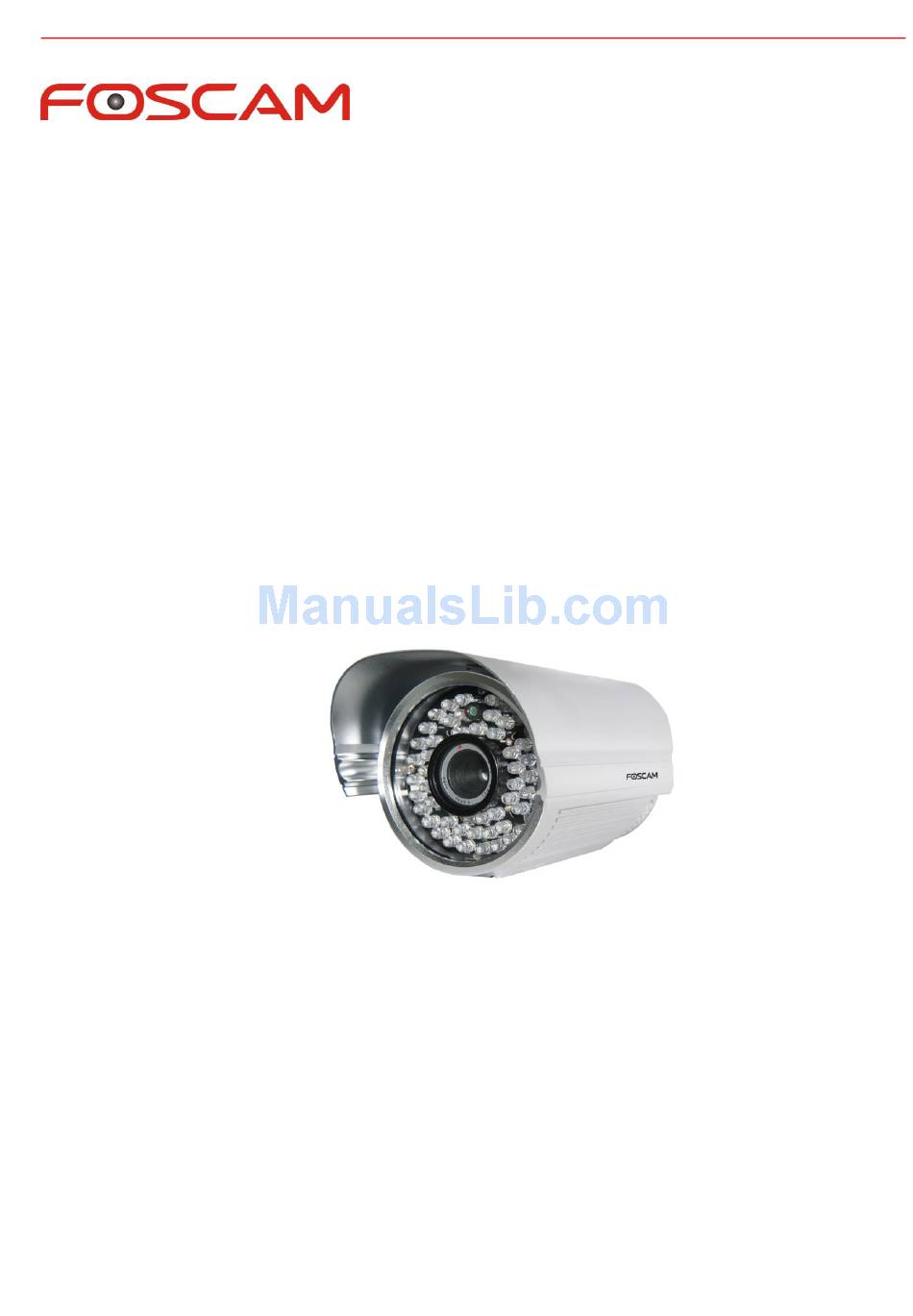

Page 1: Quick Installation Guide
V49.02 Model: FI8905E Quick Installation Guide Outdoor PoE Network Camera For Windows OS ------- Page 1 For MAC OS ------- Page 14 ShenZhen Foscam Intelligent Technology Co., Ltd... -
Page 2: Package Contents
FI8905E Quick Installation Guide Quick Installation Guide - For Windows OS Package Contents POE Network Camera DC Power Adapter (5V-2.0A) .x 1 Network Cable Mounting Bracket .x 1 Quick Installation Guide CD-ROM with Setup Software .x 1... -
Page 3: Start Installation
FI8905E Quick Installation Guide Quick Installation Diagram Hardware Installation Software Installation Login the Camera Remote Access Setup Other Settings Start Installation 1. Hardware Installation When using a PoE-enabled router/switch Open the package. Take the camera out of the box carefully. -
Page 4: Software Installation
FI8905E Quick Installation Guide When using a non-PoE router/switch 1) Open the package. Take out the camera out of the box carefully. Get the camera connected to the router and get it powered Use the network cable to connect the camera to the router or the switch in the LAN network at your home or your office. - Page 5 FI8905E Quick Installation Guide The IP camera tool should find the camera’s IP automatically after you plug in the network cable. If not, please make sure that DHCP is enabled on your router and that MAC address filtering, firewalls and anti-virus are disabled temporarily until the camera is set up.
- Page 6 FI8905E Quick Installation Guide If you use IE browser, select this login mode If you use Firefox, Google Chrome, Safari, select this login mode If you use Mobile phone, select this login mode Figure 1.6 Login User Interface Note There are three login methods. One is IE ActiveX Mode, the other is Server Push Mode for Safari, Firefox, Google Chrome, the third mode is Mobile Phone for mobile phone.
- Page 7 FI8905E Quick Installation Guide Click this button install the ActiveX Figure 1.7 Install the ActiveX Select Run Figure 1.8 Run the ActiveX Click Run button, and re-login the camera again, you can see the following surveillance window: www.foscam.com - 6 -...
- Page 8 FI8905E Quick Installation Guide Figure 1.9 Surveillance Windows Congratulations! You have succeeded in accessing in the camera by wired connection. Just leave all the menus alone before you finish the quick installation. Note The default user name is admin with no password.
-
Page 9: Remote Access Settings
FI8905E Quick Installation Guide 4. Remote Access Settings We have been able to access the camera within the LAN network, but how to access the camera via WAN or via internet? We have to do Remote Access Settings before we want to access the camera outside the LAN network. - Page 10 FI8905E Quick Installation Guide Modify the Http Port no. Enter the User name and password, click OK Figure 2.1 Change the http port no. Secondly, enter User name & password of the Administrator (default user: admin, no password), and click the button ”OK” to apply the modification. The Camera will restart one the modification is done.
- Page 11 FI8905E Quick Installation Guide If your ISP provides Static WAN IP Service please go to Chapter 4.1 (Page 10). If your ISP provides Dynamic WAN IP Service please go to Chapter 4.2 directly (Page 11). 4.1 Static IP user Static IP users do not need to set DDNS service settings for remote access. When you have finished connecting the camera using LAN and port forwarding, you can access the camera directly from the Internet by the WAN IP and port number.
- Page 12 ② Use domain name to access the camera via internet Each FOSCAM camera has embedded a unique DDNS domain name when producing, and the format of domain name is xxxxxx.myfoscam.org. On the bottom of the camera body, you can see the domain name sticker.
- Page 13 Foscam domain name is free for three years, three years later, if you want to continue using the account, you need to pay for it. On the option of DDNS Service Settings, click Validity Queries to check the validity and you will see the renew link.
-
Page 14: Other Settings
Other advanced software settings, such as Alarm Service Settings, Mail Service Settings, Alias Settings. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, pls contact our service department: tech@foscam.com... - Page 15 FI8905E Quick Installation Guide Quick Installation Guide - For MAC OS Package Contents POE Network Camera .x 1 DC Power Adapter (5V-2.0A) .x 1 Network Cable Mounting Bracket .x 1 Quick Installation Guide CD-ROM with Setup Software .x 1...
- Page 16 FI8905E Quick Installation Guide Quick Installation Diagram Hardware Installation Software Installation Login the Camera Remote Access Setup Other Settings Start Installation 1. Hardware Installation When using a PoE-enabled router/switch 1) Open the package. Take the camera out of the box carefully.
- Page 17 FI8905E Quick Installation Guide When using a non-PoE router/switch 1) Open the package. Take out the camera out of the box carefully. Get the camera connected to the router and get it powered Use the network cable to connect the camera to the router or the switch in the LAN network at your home or your office.
- Page 18 FI8905E Quick Installation Guide Default Username is admin with no password Figure 1.5 Enter user name: admin, no password, and click login If you use IE browser, select this login mode If you use Firefox, Google Chrome, Safari, select this login...
- Page 19 FI8905E Quick Installation Guide Figure 1.7 Surveillance Windows Note The default user name is admin with no password. 4. Remote Access Settings We have been able to access the camera within the LAN network, but how to access the camera via WAN or via internet? We have to do Remote Access Settings before we want to access the camera outside the LAN network.
- Page 20 FI8905E Quick Installation Guide 2) Change the default http no.80 to another one like 88, or 85 etc. How to assign a different HTTP Port No. and fixed the LAN IP of the camera by the IP Camera Tool？ Firstly Open the IP Camera Tool, select the camera you want to change the port no, right click on the IP address link, and goes to Option ”Network Configuration”, it pops up another dialogue showed...
- Page 21 FI8905E Quick Installation Guide been change to http://192.168.1.35:88, and the LAN IP address is fixed at http://192.168.1.35:88. It won’t be changed no matter you re-power the camera or re-power the router. Figure 2.0 IP Camera Tool Windows Get Started Remote Access Settings First of all, please make sure whether your ISP (Internet Service Provider) provides a Static WAN IP address service or a Dynamic WAN IP address service.
- Page 22 FI8905E Quick Installation Guide Figure 2.1 Get to know the WAN IP address of the router Access the IP Camera from the Internet You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and port number in IE browser or other browsers you use.
- Page 23 ② Use domain name to access the camera via internet Each FOSCAM camera has embedded a unique DDNS domain name when producing, and the format of domain name is xxxxxx.myfoscam.org. On the bottom of the camera body, you can see the domain name sticker.
- Page 24 Foscam domain name is free for three years, three years later, if you want to continue using the account, you need to pay for it. On the option of DDNS Service Settings, click Validity Queries to check the validity and you will see the renew link.
- Page 25 Other advanced software settings, such as Alarm Service Settings, Mail Service Settings, Alias Settings. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, pls contact our service department: tech@foscam.com...
