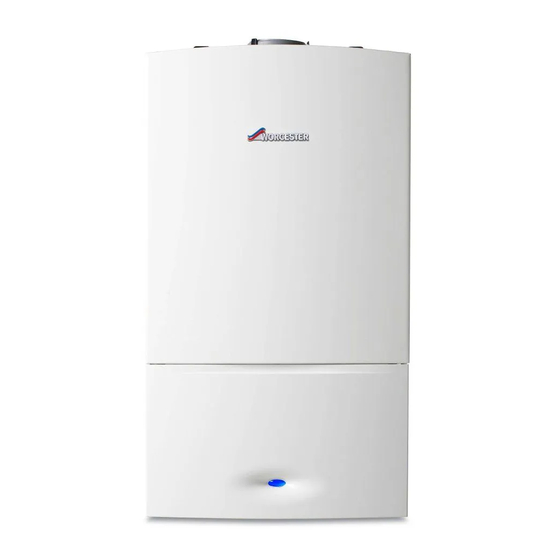

Summary of Contents for Worcester Greenstar 12i

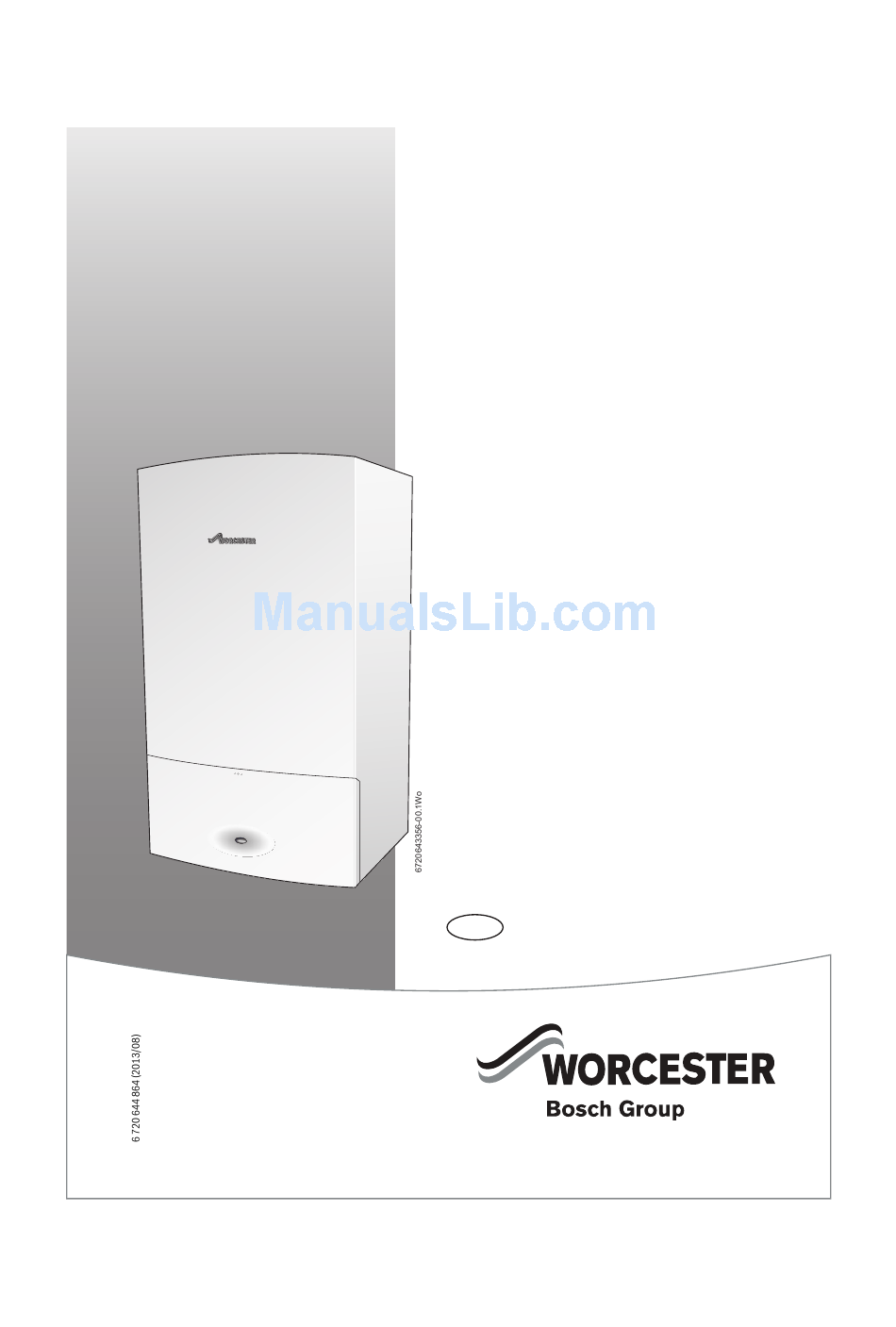

Page 1
USER MANUAL WALL HUNG RSF GAS FIRED CONDENSING SYSTEM BOILER GREENSTAR i SYSTEM FOR CENTRAL HEATING SYSTEMS UK/IE...
Page 2
89.1%, It is therefore amongst the top energy rated boilers available. There is also the reassurance of our no-nonsense 2 years parts and labour guarantee - backed up by Worcester Total Cover, an optional complete maintenance scheme to keep your boiler operating at peak condition and efficiency.
Table 1 Symbols ▶ Do not modify the boiler or flue system in any way. Worcester, Bosch Group accepts no liability arising from any such actions. This does not affect your statutory rights. Greenstar i System – 6720644 864 (2013/08)
Installation, Commissioning and Servicing Instructions. ▶ The boiler must be serviced regularly by a competent, qualified person, such as a Worcester service engineer or other Gas Safe registered engineer. ▶ Always use original spares, to help maintain the economy, safety and reliability of the boiler and have the Service Record completed in the Benchmark Checklist.
CONTROLS CONTROLS ▶ To gain access to the boiler controls open the flap and release. Fig. 1 Control panel fascia Central heating temperature control ECO button (non functional) Burner indicator (Green) Reset button Boiler Controls Service button Hot water temperature control* Cover or optional Programmer System pressure gauge Power ON and fault indicator (Blue)
CONTROLS 3.1 OPERATING THE BOILER 3.1.1 SETTING THE CENTRAL HEATING TEMPERATURE 1. Turn the central heating temperature control knob to the desired level. Temperatures given in the figure below are approximate. 2. The Burner indicator (green) will illuminate to show that the boiler is running. 40 °C 47 °C 53 °C...
CONTROLS 3.1.4 Setting the hot water temperature Optional integral diverter valve kit with cylinder temperature sensor is required to be able to set the hot water temperature. Otherwise the temperature is factory set to approximately 55°C. 1. Turn the hot water temperature control knob to the desired level. 2.
2. The mains indicator will no longer be flashing. reset Fig. 5 Reset button and mains light If the fault remains and cannot be cleared by pressing the reset button, contact Worcester, Bosch Group for assistance. Greenstar i System – 6 720 644 864 (2013/08)
SYSTEM PRESSURE SYSTEM PRESSURE SEALED HEATING SYSTEMS This boiler is fitted to a sealed heating system which is pre-pressurised. Your installer will advise you of the minimum and maximum pressure indicated on the pressure gauge. ▶ Check regularly that the pressure is maintained. 1.5 bar 1 bar Fig.
SYSTEM PRESSURE 4.2 EXTERNAL FILLING LOOP Once the external filling loop has been located, follow the instructions for re-pressurising the system. 1. Unscrew blanking cap. 2. Attach the hose to the valves, screw on hand-tight. 3. Turn the handle/screwdriver slot through 90° to open the valves. 4.
2 year guarantee period. If you would like to know more about a Worcester, Bosch Group service contract, please tick the appropriate box on your warranty registration card.
▶ Once the pipe has been thawed the boiler must be reset, press the reset button for five seconds and wait two to three minutes for the boiler to restart. ▶ If the boiler does not restart, contact Worcester’s Technical Support Team (0844 892 3366) for assistance. ▶ Contact your installer in order to find a permanent solution to the problem.
In the case of a suspected fault, refer to the fault finding section of this guide. In the event of a boiler fault or breakdown please contact Worcester, Bosch Group appointments team on 0844 892 3000. Your advisor will arrange for an engineer to call with the minimum of delay; under normal circumstances this will be from 1 - 3 working days (excluding weekends) for priority breakdown situations (no hot water and/or heating).
TIPS ON ENERGY SAVING TIPS ON ENERGY SAVING HEATING ECONOMICALLY The boiler provides a high level of comfort whilst keeping gas consumption and the environment effects as low as possible. The gas supply to the burner is controlled according to the level of demand for heat. The boiler operates with a low flame if the demand for heat reduces.
YOUR GUARANTEE 10 YOUR GUARANTEE This boiler is guaranteed against faulty materials or workmanship for a period of 2 years from the date of installation subject to the following terms and conditions. • During the period of this guarantee any components of the boiler which are proven to be faulty or defective in manufacture will be exchanged or repaired free of charge by Bosch Thermotechnology Ltd.
ENVIRONMENT/DISPOSAL ENVIRONMENT/DISPOSAL Environmental protection is a fundamental corporate strategy of the Bosch Group. The quality of our products, their economy and environmental safety are all of equal importance to us and all environmental protection legislation and regulations are strictly observed. We use the best possible technology and materials for protecting the environment taking account of economic considerations.
Page 18
GLOSSARY 12 GLOSSARY Central heating systems All radiators must be heated at an even rate. If the top of a radiator is at a lower temperature than the bottom then it should be vented by releasing air through the venting screw at the top of the radiator. Ask your installer to show you how this is done. This boiler is fitted to a sealed system.
Page 19
Notes Greenstar i System – 6 720 644 864 (2013/08)
Page 20
0844 892 9800 TRAINING: 0190 575 2526 SALES: 0190 575 2640 Worcester, Bosch Group Cotswold Way, Warndon, Worcester WR4 9SW. Tel. 0844 892 9900 Worcester, Bosch Group is a brand name of Bosch Thermotechnology Ltd. worcester-bosch.co.uk 6 720 644 864 (2013/08)
