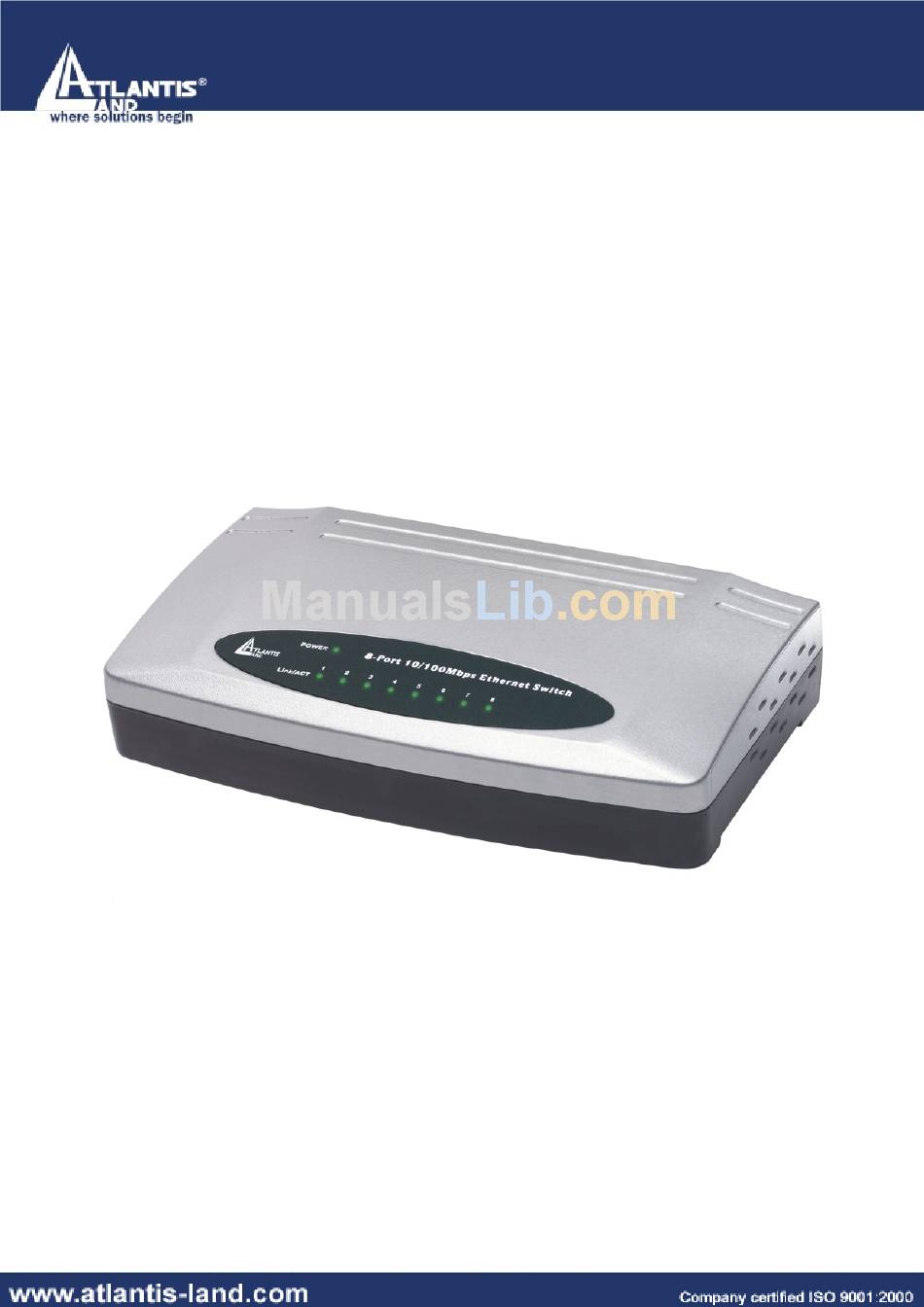

Page 1: Fast Ethernet
5/8-Port 10/100Mbps Fast Ethernet Desktop Switch A02-F5P A02-F8P USER’S MANUAL A02-F5(8)P_ME01... - Page 3 5/8-Port Fast Ethernet Desktop Switch Copyright The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.
-
Page 4: Table Of Contents
APPENDIX A RJ-45 P ... 6 PECIFICATION APPENDIX B ECHNICAL PECIFICATIONS APPENDIX C ... 8 UPPORT A02-F5(8)P _MI01 (Dicembre 2004, V1.00) ... 1 ... 4 ... 5 OMPONENTS ... 6 ... 7 ... 7 ... 8 5/8-Port Fast Ethernet Desktop Switch... -
Page 5: Chapter 1
Fast Ethernet Switch, and ”switch” (first letter lower case) refers to other Ethernet switches. 1.3 Package Contents Open the box of the Switch and carefully unpack it. The box should contain the following items: • 5/8-Port Fast Ethernet Desktop Switch •... -
Page 6: Switching Technology
Switch can be cascaded from any port and to any number of switches. The Switch is a perfect choice for site planning to upgrade to Fast Ethernet in the future. Ethernet workgroups can connect to the Switch now, and change adapters and hubs anytime later without needing to change the Switches or reconfigure the network. -
Page 7: Setup
1.6 Setup The setup of the Switch can be performed using the following steps: • Make sure that there is proper heat dissipation from and adequate ventilation around the Switch • Do not place heavy objects on the Switch. •... -
Page 8: Connecting The Switch
NIC (Network Interface Card) or switches and hubs. A PC can be connected to the Switch via a two-pair Category 3, 4, 5 UTP/STP cables. The PC (equipped with a RJ-45 10/100Mbps phone jack) should be connected to any port of the Switch. -
Page 9: Identifying External Components
1.8 Identifying External Components This section identifies all the major external components of the switch. Both the front and rear panels are shown followed by a description of each panel feature. The indicator panel is described in detail in the next chapter. -
Page 10: Pin Specification
The standard RJ-45 receptacle/connector. RJ-45 Connector pin assignment Contact Media Direct Interface Signal TX + (tx) TX - (tx) Rx + (rx) Not used Not used Rx - (rx) Not used Not used 5/8-Port Fast Ethernet Desktop Switch APPENDIX A... -
Page 11: Technical Specifications
RAM Buffer: Filtering Address Table: Packet Filtering / Forwarding Rate: MAC Address Learning: 5/8-Port Fast Ethernet Desktop Switch IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Full duplex Flow Control CSMA/CD Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex) -
Page 12: Appendix C
If you continue to have problems you should contact the dealer where you bought this device. If you have any other questions you can contact the Atlantis Land company directly at the following address: Atlantis Land SpA Viale De Gasperi, 122 20017 Mazzo di Rho(MI) Tel: +39.
