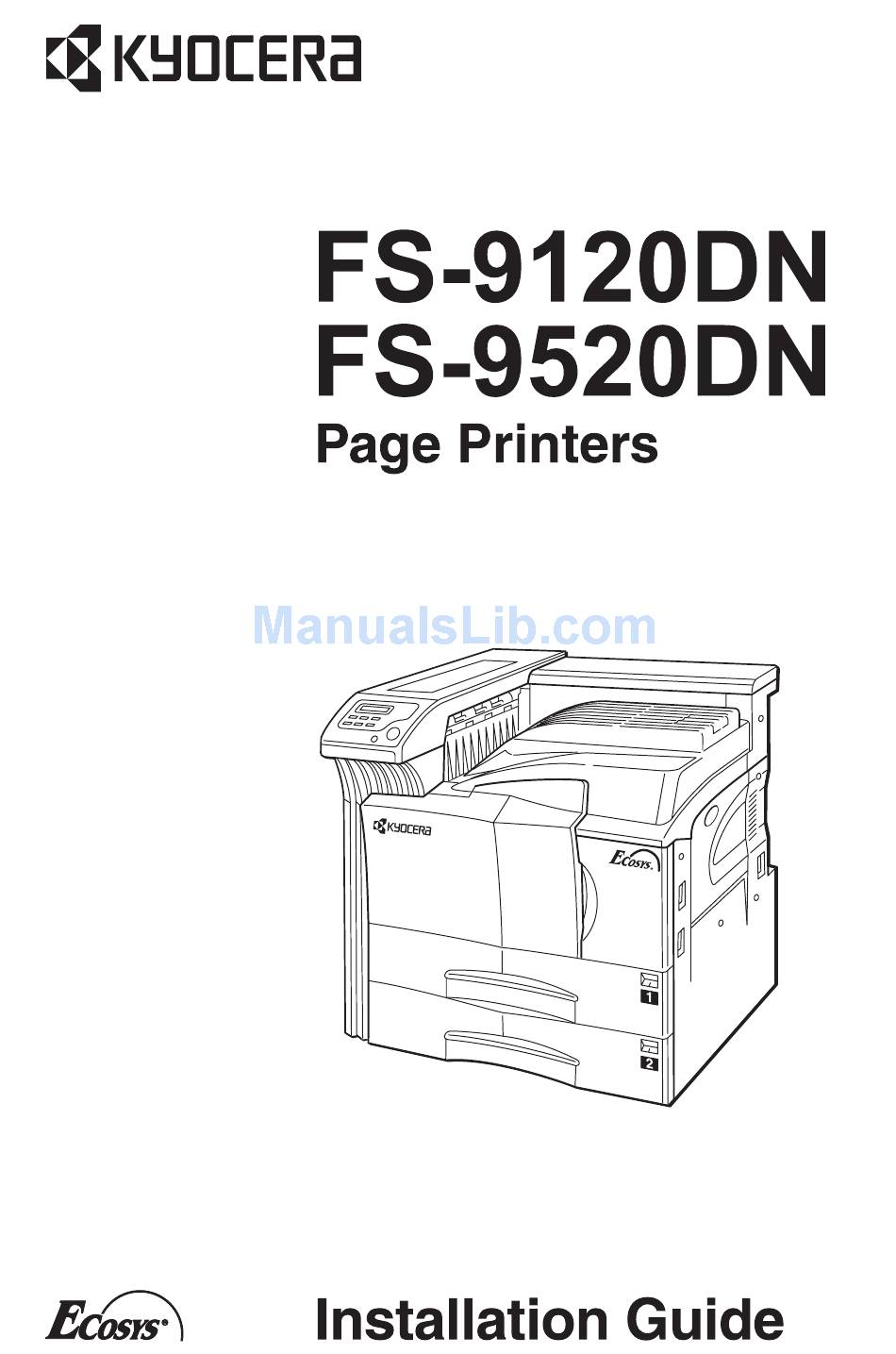

Kyocera FS-9120DN Installation Manual

Hide thumbs Also See for FS-9120DN:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for Kyocera FS-9120DN

Summary of Contents for Kyocera FS-9120DN

  • Page 2: Table Of Contents

    Software used with this printer must support the printer’s emulation mode. The printer is factory-set to emulate the HP PCL 6. The emulation mode can be changed by following the procedures described in the User’s Manual contained as an electronic file in the Kyocera Mita Document Library CD-ROM supplied with the printer. Notice on this Guide The information in this guide is subject to change without notification.

  • Page 3: Installation Procedure

    1 Installation Procedure Remove the printer from the carton and install it in the following order after transporting it to the installation position. Start Unpack Remove the shipping tape Position the printer Install the toner container Install the waste toner box Connect the printer to the computer Connect the power cord Load paper in the paper cassettes and...

  • Page 4: Unpacking

    •Be very careful as the printer is heavy and can cause back injury if lifted incorrectly. Shipped Components Paper Size Indicators (4) Printer CD-ROM’s •Kyocera Mita Document Library •Kyocera Mita Software Library Toner Container Installation Guide (This booklet) Quick Configuration Guide...

  • Page 5: Removing The Shipping Tape

    Removing the Shipping Tape Remove the tape holding the front cover in place. Front Cover Remove the tape holding the MP (Multi MP Tray Purpose) tray in place. Remove the shipping tape holding the paper cassettes in place. Paper Cassettes Remove the shipping tape holding the left cover in place.

  • Page 6: Positioning The Printer

    3 Positioning the Printer Make sure that the printer location meets the following requirements: Clearance Be sure to provide enough space Rear: 10 cm (3 - ") around the printer. Prolonged use without sufficient clearance may cause heat to build up inside the printer, resulting in fire.

  • Page 7: Installing The Toner Container

    4 Installing the Toner Container Before using the printer for the first time, you must prepare it by installing the toner con- tainer, waste toner box, and set up the computer interface. Open the printer front cover all the way. Front Cover Take out the toner container.
  • Page 8 Grasp the handle on the toner container and insert the toner container along the rail inside the printer. Be sure that the gear side of the toner container faces the printer. Gear Side To the Printer Hold the toner container using both hands and fully insert it into the printer.

  • Page 9: Installing The Waste Toner Box

    5 Installing the Waste Toner Box A waste toner box is supplied with the printer. Install the waste toner box as shown in the figure. Close the front cover. 6 Connecting the Printer to the Computer The printer can be connected to the computer in a number of ways: through the parallel interface connector, through the USB (Universal Serial Bus) interface connector, or through the network interface connector.
  • Page 10 Parallel Interface Connection Plug one end of the printer cable (not included) into the parallel interface con- nection on the rear side of the printer. •Use a parallel printer cable that complies with the IEEE1284 standards. •For best results, install the printer close to the computer.

  • Page 11: Connecting The Power Cord

    Current capacity 120 V (U.S.A. and Canada) 60 Hz (120 V) ±2 % Max. 11.3 A at 120 V (FS-9120DN) Max. 11.4 A at 120 V (FS-9520DN) 220 to 240 V (European countries, 50/60 Hz (220 to 240 V) ±2 % Max.

  • Page 12: Loading Paper In The Paper Cassettes And Mp (Multi-Purpose) Tray

    8 Loading Paper in the Paper Cassettes and MP (Multi-Purpose) Tray The paper cassette can accommodate A5 to A3/Ledger size paper and can hold approxi- mately 500 sheets. The MP tray can accommodate various paper sizes and can hold approx- imately 200 sheets of paper.
  • Page 13 Select the paper source according to paper weight. Paper source Paper weight Paper cassette 60 to 105 g/m² MP tray 60 to 200 g/m²...
  • Page 14 Paper Cassettes Pull out the paper cassette until it stops. Paper Cassette Press the lever (green-colored) on the front side paper guide and slide the paper guides to the desired position. Turn the paper stopper (located on the right side of the paper cassette) to the left as shown and move it to the desired paper size.
  • Page 15 Slide the paper into the paper cassette. •Do not load more paper than will fit under the load limit on the rear side paper guide. •The paper cassette will hold approximately 500 sheets of paper with a 80 g/m² (21 lb.) basis weight, or with a thickness of 0.11 mm.
  • Page 16 MP (Multi Purpose) Tray The MP tray can be used for feeding non-standard size paper, labels, cards, envelopes, and transparencies, etc., in addition to the normal paper sizes accommodated by the paper cas- settes. Open the MP tray on the right side of the printer as shown in the figure.
  • Page 17 The MP tray can be adjusted to automatically recognize the sizes of the following special media and envelopes as well as standard sizes: Paper Size Dimension Paper Size Dimension 210 × 297 mm 197 × 273 mm Executive 7-1/4 × 10-1/2 inches Hagaki 100 ×...

  • Page 18: Turning The Power Switch On

    9 Turning the Power Switch On This section describes the procedure for turning on the printer’s power. During start-up, select the language for message display and status page. Select from English, German, French, Italian, Dutch, Spanish, or Portuguese. The default message language is English. To change the message languages, refer to the sec- Selecting a Message Language .
  • Page 19 Selecting a Message Language The printer has a multi-lingual message display which can be set to English, German, French, Italian, Dutch, Spanish, or Portuguese. The default message language for the printer’s message display is English. To change the message language to another, follow the instructions below.

  • Page 20: Printing A Status Page

    10 Printing a Status Page To perform a printer test, print a status page indicating factory settings. Press the MENU key on the operator panel. Press the key repeatedly until the message display shows Print Sta- tus Page. Press the ENTER key twice. The message display indicates Processing while printing the status page, then returns to Ready.

  • Page 21: Correcting A Paper Jam

    Correcting a Paper Jam If a paper jam occurs while printing, remove the jammed paper as described below. After removing the jammed paper, open and close the front cover. When removing jammed paper, pull it out carefully so as not to tear it. Torn pieces of paper are difficult to remove and may be hand to find.
  • Page 22 Jam in Left Cover 1 Pull up the lock lever and open left cover Remove the jammed paper. When removing jammed paper, be careful not to touch the printer drum. This can cause printer mal- function. Push the lever (green colored) to raise the duplex unit and remove the jammed paper.
  • Page 23 Close left cover 1. Jam in Left Cover 2 Open left cover 2. Remove the jammed paper. Close left cover 2.
  • Page 24 Any modification without prior permission may cause harmful interference. If any modification/change is introduced to this equipment without prior permission, Kyocera Mita as the man- ufacturer cannot guarantee compliance with FCC rules. To use equipment which does not comply with FCC rules is prohibited.

  • Page 25: Caution Labels

    Caution labels The labels shown are affixed to the printer. (U.S.A./Canada) (European/ Pacific countries) This label is attached to the scanner unit installed in the printer. CDRH regulations The Center of Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976.

  • Page 26: Important Safeguards

    IMPORTANT SAFEGUARDS 1. Read all of these instructions and save these instructions for later use. 2. Unplug this product from the wall outlet before cleaning. 3. Do not use this product near water. 4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
  • Page 27 DF-71/DF-73/DF-75, Paper Feeder PF-70/PF-75) Description of device: This Page Printer Model FS-9520DN is the 51 ppm (FS-9120DN is the 36 ppm); A4 size and utilized plane paper; laser; dry toner etc. The printer can be equipped with several enhancement optional units as a paper feeder as PF-70 etc.
  • Page 28 Declaration of Conformity (U.S.A.) Model Number: Laser Printer FS-9120DN/FS-9520DN (as tested with enhancement optional units: Document Finisher DF-71/DF-73/DF-75, Paper Feeder PF-70/PF-75) Trade Name: Kyocera Mita Responsible Party: Kyocera Mita America Inc. Address: 225 Sand Road PO Box 40008 Fairfield, New Jersey 07004-0008, U.S.A.

  • Page 29: Moving The Printer

    • If you ship the printer, remove the developer unit and ship it separately. Be sure to consult your Kyocera Mita dealer before attempting long-dis- Left handles tance transportation of the printer.

  • Page 30: Available Options

    Available Options The printer can be equipped with the following options. For instructions on installing individual options, refer to the documentation included with the option. Serial Interface Memory Card (CF) Board Kit (IB-11) Network Interface Card (IB-20/21E/22) Expansion Memory (DIMM 32/64/128/ 256 MB) Mail Box M-2107 Document Finisher...

  • Page 31: Regarding Trademarks

    Centronics Data Computer Corp. PostScript is a registered trademark of Adobe Systems Incorporated. Adobe and Acrobat are trademarks of Adobe Systems Incorporated. This Kyocera Mita page printer uses PeerlessPrintXL to provide the HP LaserJet compatible PCL 6 language emulation. PeerlessPrintXL is a trademark of The Peerless Group, Redondo Beach, CA 90278, U.S.A.

  • Page 32: Safety Information

    4 General You may terminate your license at any time. IBM may terminate your license if you fail to comply with the terms and conditions of this license. In either event, you must destroy all your copies of the Program. You are respon- sible for payment of any taxes, including personal property taxes, resulting from this license.
  • Page 33 This page intentionally left blank.
  • Page 34 This page intentionally left blank.

  • Page 35: Operator Panel

    • Displays online help messages on the message display when paper jam errors occur. Finalizes numeric values and other selections. Operation Guide contained as a PDF file in the Kyocera Mita For more details on operating procedures, see the Document Library CD-ROM supplied with the printer.
