Note:
1. V-Screen will exit menu when no operation for 5 seconds.
2. Refer to P8 to adjust the display time.

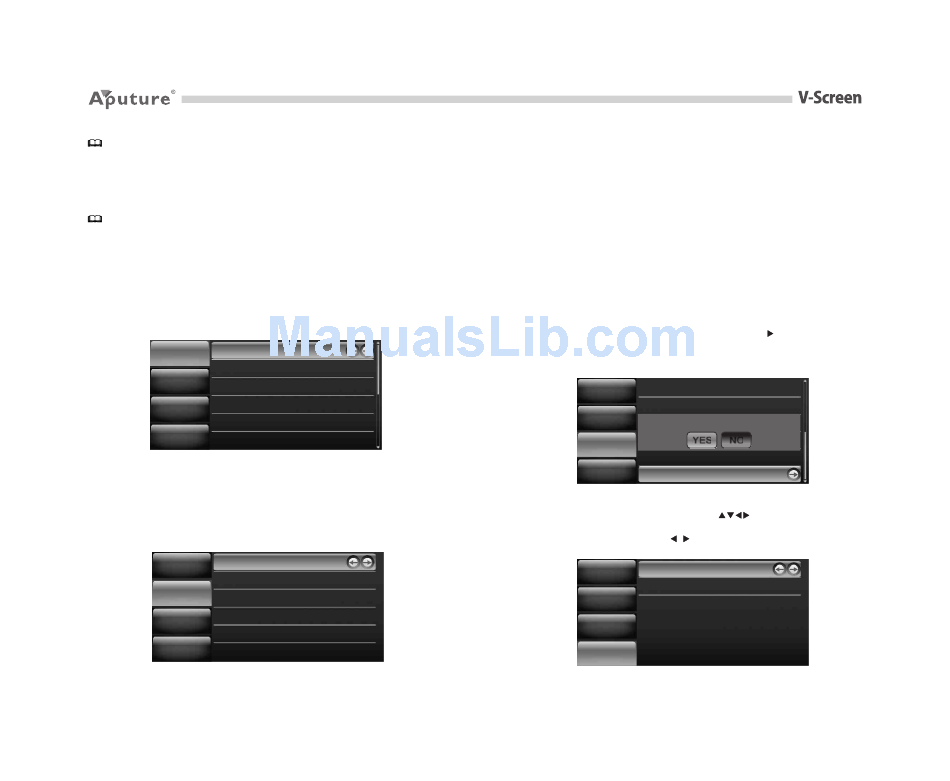

(1) Display Settings
a. Color Temp: User/6500K/7500K/9300K
Note:
1. V-Screen can adjust red/green/blue only in User mode
2. Setting R/G/B from 0 to 255; Default setting: R/G/B=128
b. Mono: OFF/Mono/Red/Green/Blue (OFF by default)
c. Center Marker: OFF/ON (OFF by default)
d. Screen Marker: OFF/95%/93%/90%88%/85%/80% (OFF by default)
e. P2P (Point to Point): OFF/ON (OFF by default)
f. Blanked Display: OFF/HV-BLANK/ H-BLANK/V-BLANK(OFF by default)
g. Under Scan: OFF/ON (OFF by default)
Color Temp
Display
Mono
OSD
Center Marker
Box Marker
Function
Point to Point
ShortCut
Blanked Display
(2) OSD Settings
a. Language: English/Chinese/Japanese/Italian/Spanish/Germany (English by
default)
b. Horizontal Position: 0~100 ('50' by default)
c. Vertical Position: 0~100 ('50' by default)
d. Menu Transparency: OFF/1~6('1' by default)
e. Menu Time: 5/10/20/30/40/50/60s ('5s' by default)
Language
Display
Horizontal Position
OSD
Vertical Position
Menu Transparency
Function
Menu Timer
ShortCut
AP-025
Monday, January 14, 2013 11:56:38 AM
6500K
OFF
ON
OFF
OFF
OFF
English
50
50
6
60S
8
(3) Function Settings
a. Aspect Ratio: Full/4:3/16:9 (Full by default)
b. Zoom: x1/x5/x10 ('x1' by default)
c. Freeze: OFF/ON ( OFF by default)
d. Flip-H: OFF/ON (OFF by default)
e. Flip-V: OFF/ON (OFF by default)
f. Software Upgrade (ISP)
Instructions:
1. Download the upgraded firmware to USB stick and then connect with V-Screen
by the firmware upgrade cable. Press 'Yes' to upgrade the firmware.
2. V-Screen shows "upgrading" on the screen when entering Firmware Upgrade
mode. It will return to video feed when no new software is found. It will restart
automatically when upgraded successfully.
g. Reset (Factory Default)
Instructions:
V-Screen will display a pop-up message when pressing <
to reset all settings. Navigate to 'Yes' and press 'M' to reset settings to factory
default. The device will refresh automatically. Navigate to 'No' to cancel and
press' M' to return to the main menu.
Display Zoom
Freeze
OSD
- Restore to Factory Settings?
Flip H
-
Flip V
Function
Software Upgrade
ShortCut
Reset
(4) Shortcut Settings
V-Screen can apply different shortcuts to the <
includes volume, brightness, contrast, check field, aspect ratio, zoom and
screen marker. In the menu, press < / > to switch between various shortcut
settings.
-
Left Right
Display
-
Up Down
OSD
Function
ShortCut
9
>, asking permission
X1
OFF
OFF
YES NO
OFF
> buttons. Shortcuts
Contrast
Brightness
