Summary of Contents for Aputure V-SCREEN VS-5

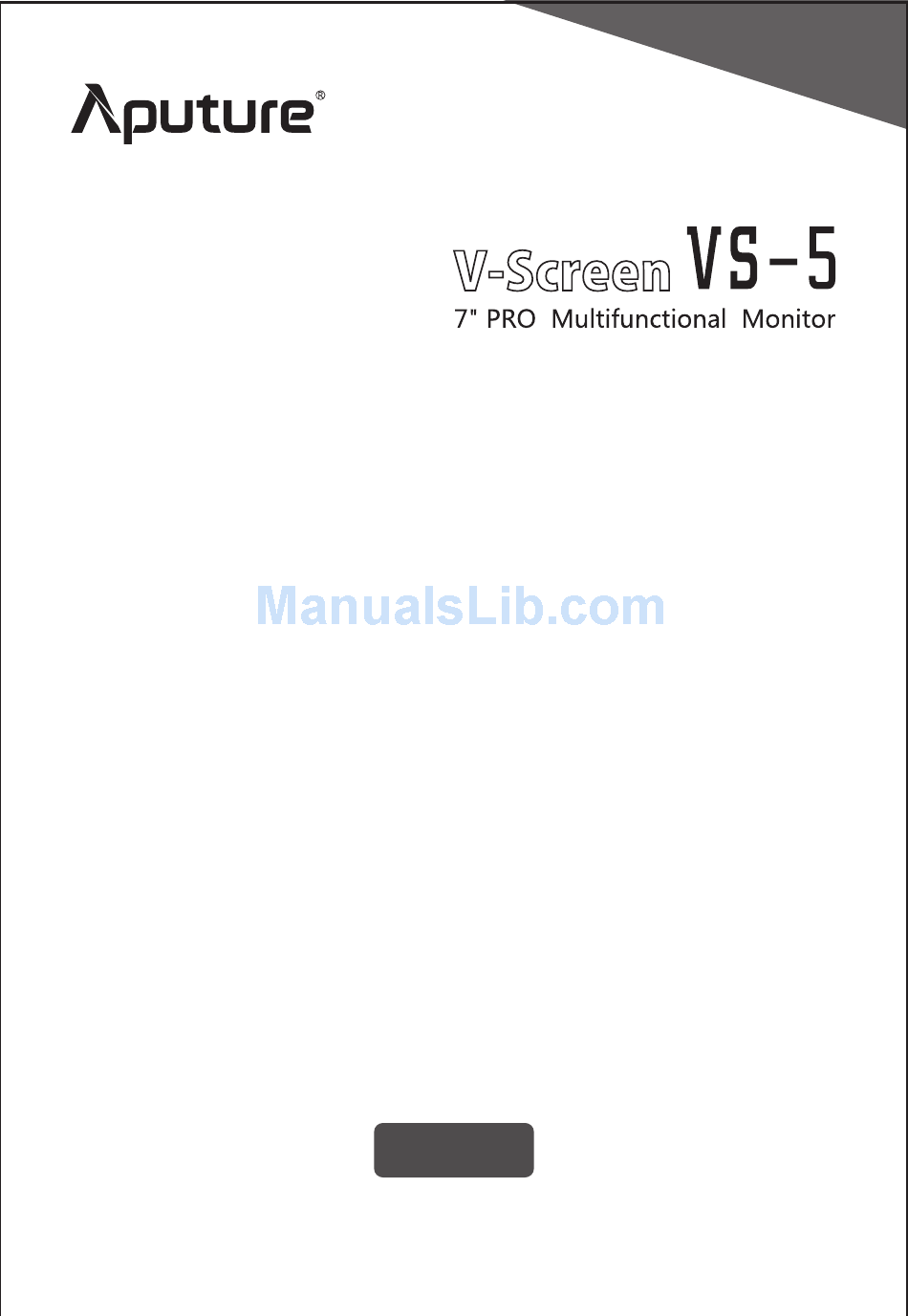

- Page 1 Product Manual English...
-
Page 2: Table Of Contents
CONTENT FOREWORD INSTRUCTION INTRODUCTION ITEM LIST FEATURE NOMENCLATURE PREPARATION INSTALLATION SUNHOOD POWERING POWER ON/OFF SIGNAL INPUT MENU ACCESSING THE MENU EXTRA OSD FIRMWARE UPDATE SPECIFICATIONS... -
Page 3: Foreword
The instructions and information in this manual are based on thorough, controlled company testing procedures. Further notice will not be given if the design or speci cations change. Detailed product manual for VS-5 can be found on the movie solution page on www.aputure.com . -
Page 4: Introduction
INTRODUCTION Aputure V-Screen VS-5 is a pro multifunction monitor with a 7-inch full HD LCD screen (1920X1200 pixels), which provides deverse video interface, such as HDMI, SDI. Also, VS-5 features full information mode. ITEM LIST Before starting, please check that all the following items have been included with Aputure V-Screen VS-5 . -
Page 5: Feature
FEATURE Full Full Info. Mode In this mode, you can monitor the footage. In the mean time, vectorscope, Info. waveform, RGB histogram, and volume bar are provided to assist shooting. Waveform There are two waveform modes: Overlay, and Parade, which allows simple measurement without additional measurement equipment. - Page 6 Monochrome Mono O er four monochrome patterns, including Grey, Red, Blue and Green. Volume Bar Monitor the volume in left and right channels. And it is marked by 3 colors, green, yellow, and red, depending the Volume Level. Center Mark The Center Mark can be displayed together with another marker, Safe Area.
-
Page 7: Nomenclature
NOMENCLATURE 1 Screen 8 Battery Lock 2 Menu / F1 9 Power Input 3 Navigator / F2 10 SDI-IN 4 Navigator / F3 11 HDMI IN 5 Power Indicator 12 1/4” Thread 6 Power Switch 13 Earphone Jack 7 Battery Holder 14 USB Input... -
Page 8: Preparation
PREPARATION INSTALLATION 1) Mount monitor on your DSLR or camcorder with universal hot shoe mount. 2) Fix V-Screen on the magic hand or other accessories with 1/4" connecter, and lock them. SUNHOOD A x the sunhood on the monitor with tape as shown by the picture. -
Page 9: Powering
POWERING Assemble: As shown, slot the battery into the Battery Holder. Disassemble: Press the Battery Lock, and push the battery as shown to disassemble the battery. Battery Lock * The following batteries are recommended: Sony NP-S Series: NP-F550/F570/F770/F960/F970, Sony NP-FM/QM Series: FM50/FM51/FM55H/FM500H/QM50/QM51/QM71D/QM91D. * You can also power it by a DC 7-18V through the input on the back of V-Screen. -
Page 10: Menu
The bar on the bottom shows shortcut information. Also, you can close the bar on the bottom in "Other Setting-Extra OSD" FIRMWARE UPDATE VS-5 monitor is constantly under development, which means Aputure may release latest rmware on o cial website. 1) Website: http:// www.aputure.com/update/V-Screen-VS-5... -
Page 11: Specifications
SPECIFICATIONS Model VS-5 Panel 7.02” Native Resolution 1920x1200 Brightness Display Contrast 1200:1 Viewing Angle 160/160(H/V) (CR＞10) Pixel Pitch 0.07875(mm)X 0.07875(mm) HDMI Input HD-SDI Audio Earphone Jack Φ3.5mm Current 700mA （Voltage=12V） Input Voltage DC 7-18V Power Consumption ≤9W Power Sony NP-F Series: NP-F550/F570/F770/ F960/F970 Batteries NP-FM/QM Series: FM50/FM51/FM55H/...
