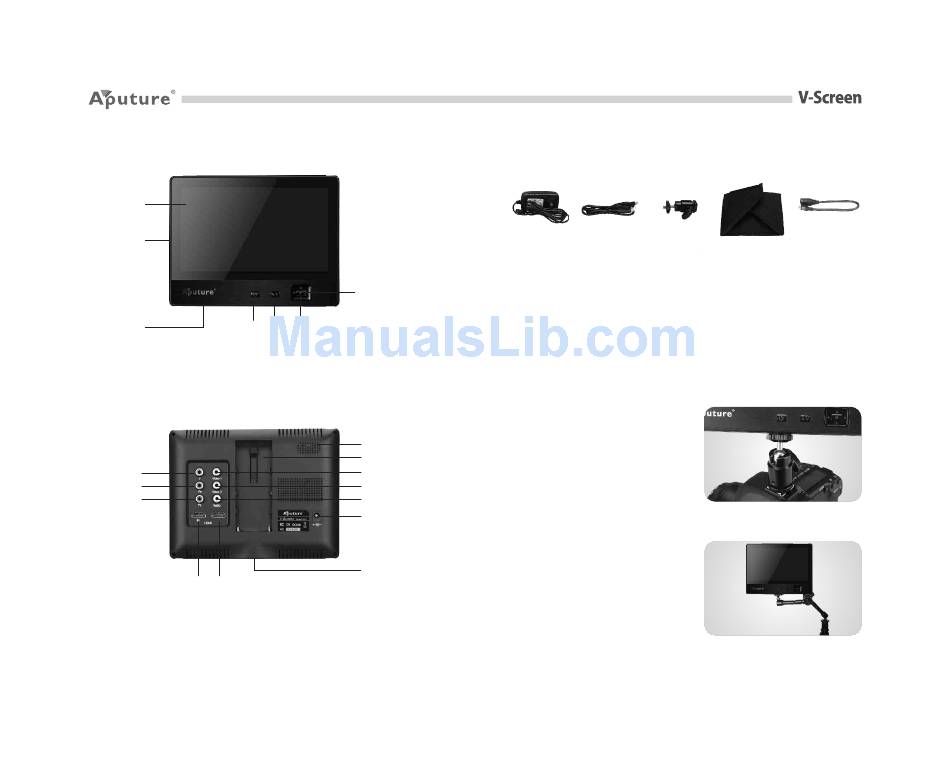

2. Components

Front
1
2
3 4
1. LCD Display 3. Earphone Jack
2. Mini USB Input (only for
4. Power Switch
firmware upgrades)
5. Signal Switch < A/V>
Back
1
2
3
OUT
11 12
1. Y Signal Input 5. Battery Slot
2. Pb Signal Input 6. Video 1 Signal Input
3. Pr Signal Input 7. Video 2 Signal Input
4. Speaker 8. Audio Jack
9. DC Power Screw Mount
AP-025
Monday, January 14, 2013 11:56:37 AM
7
5
6
6. Menu Button
7. Direction Pad
4
5
6
7
8
9
10
10. 1/4" Jack
11. HDMI Signal Input
12. HDMI Signal
Output (VS-2)
4
Accessories
1 2 3
1. Power Adapter 3. Universal Hot Shoe Mount
4. Folding Sunshade
2. HDMI Cable
3. Getting Started
V-Screen Installation
1) Mount on camera or camcorder
Fix V-Screen on your DSLR camera or
camcorder with the universal hot shoe
mount, then connect them by HDMI or
AV cable (Purchased separately).
2) Mount on the Magic Hand
Fix V-Screen on the magic hand or other
accessories with 1/4" connecter, and
lock them.
5
5
4
5. Firmware Upgrade
Cable
