Summary of Contents for AJA Hi5
-

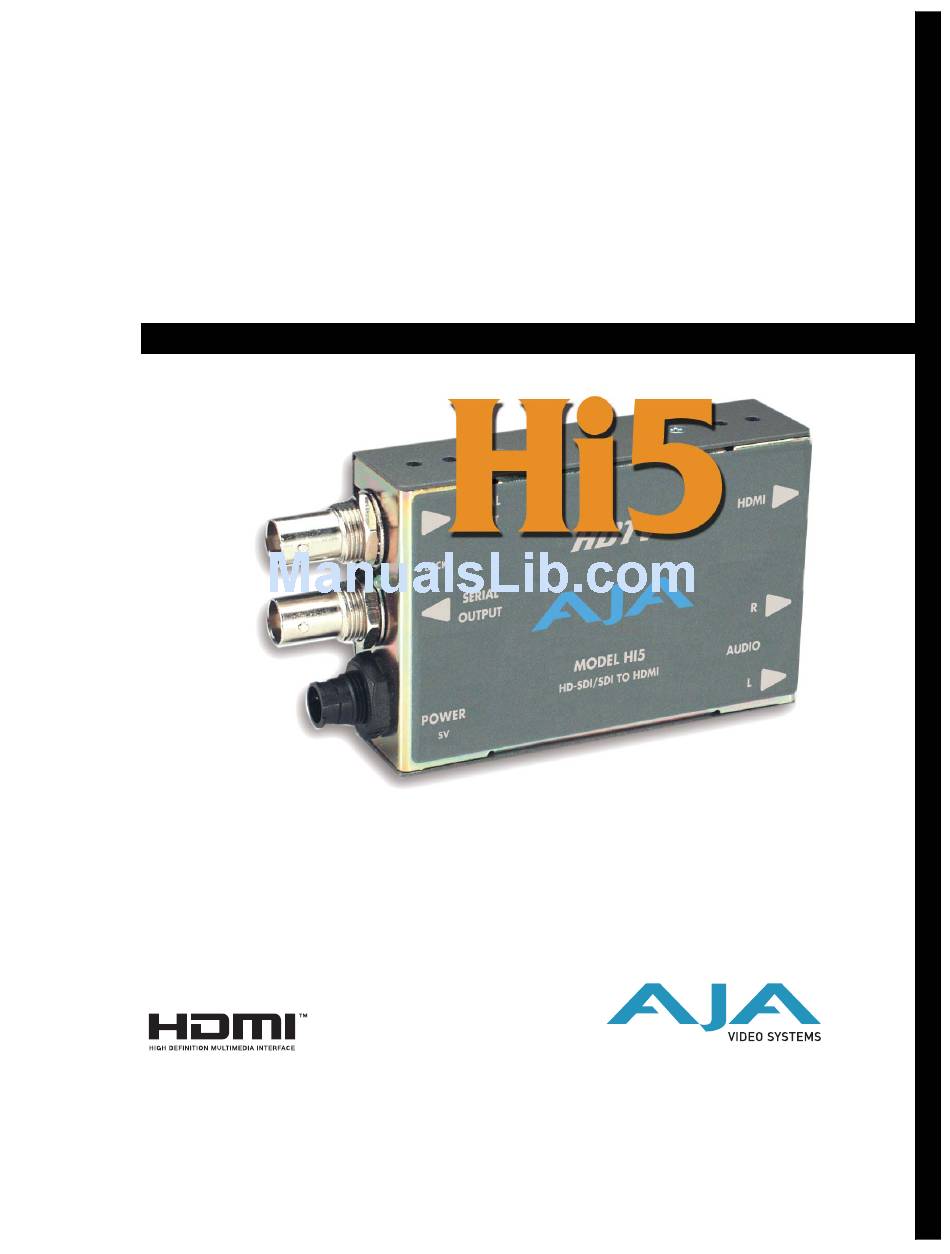

Page 1: User Manual

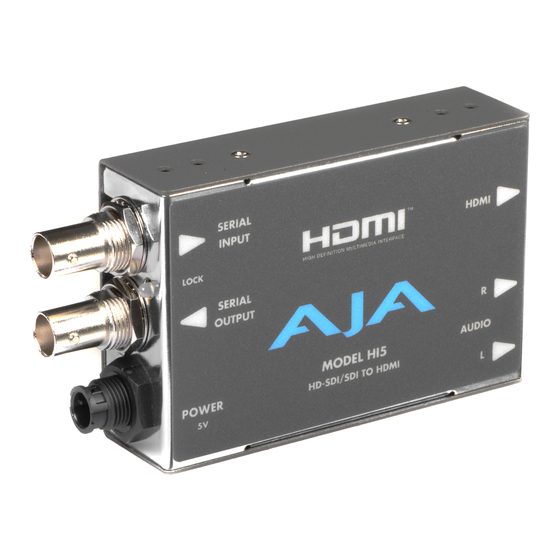

HD-SDI/SDI To HDMI Video and Audio Converter User Manual ® December 17, 2008 P/N 101663-01 For Hi5 Serial Number 13899 or Later... -
Page 2: Contacting Support
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. -
Page 3: Block Diagram
Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2 Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SDI/HD-SDI output useful for connecting additional equipment, or for “daisy chaining”... -
Page 4: User Controls
Audio (RCA Jacks) + 5VDC Power Input Hi5 Converter User Controls An internal Jumper block with 3 jumpers (J4) provides controls for HDMI audio, output mode, and 8- or 10-bit video selection. Each of these settings are described below. Internal Jumper... -
Page 5: Specifications
AJA Hi5 HD-SDI/SDI to HDMI and Audio Converter User Manual — Installation To access this jumper, remove the four phillips screws securing the back side of the Hi5 case. Once the case cover is removed, locate the jumper block. Jumper positions 1 through 3 are clearly marked on the circuit board next to the jumper J4. - Page 6 24-bit, with 2 or 8 embedded channels (selectable by internal jumper) HDCP The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SDI/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
