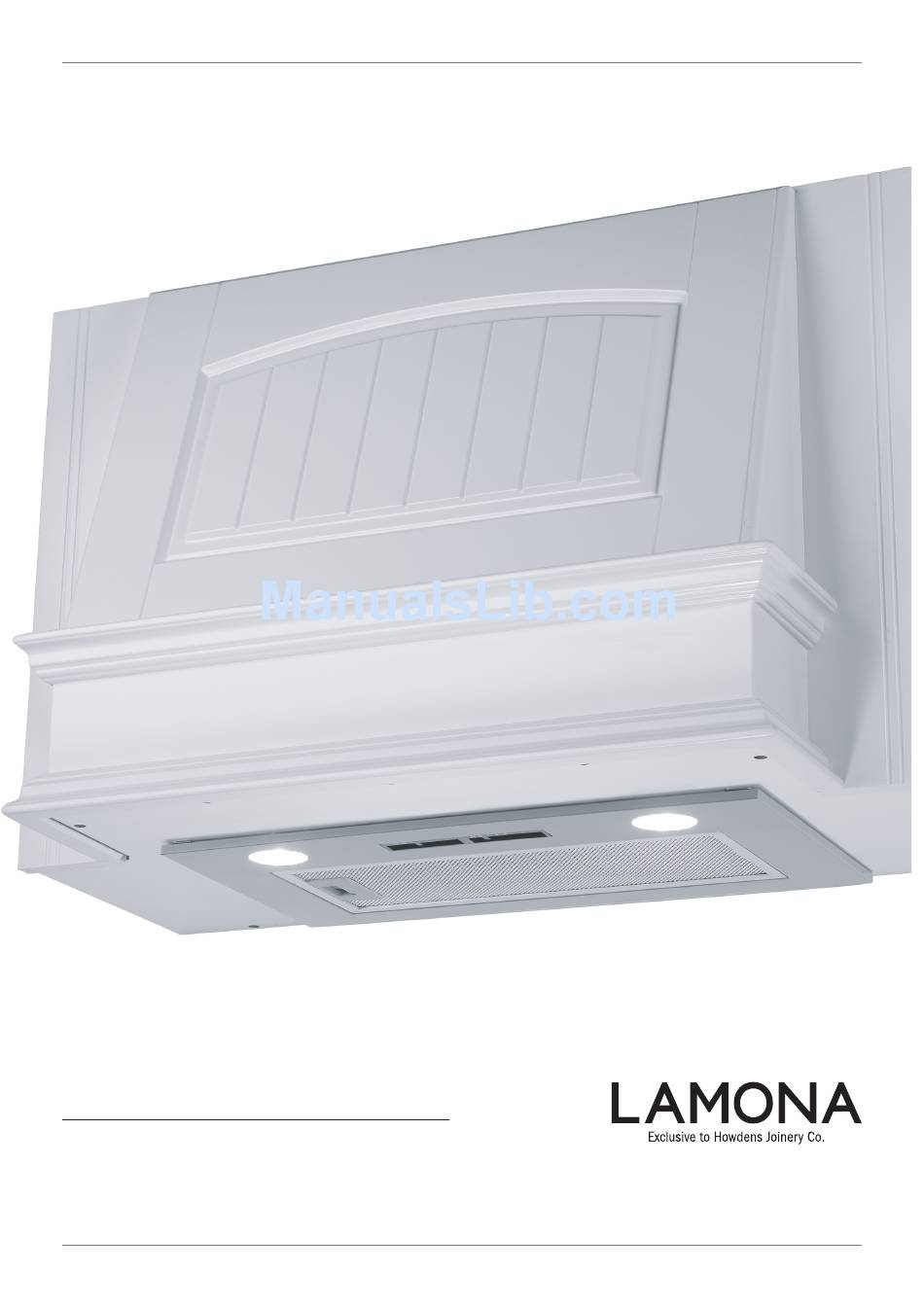

- Page 1 Canopy Extractor HJA2339 User & Installation Guide...
-
Page 2: Table Of Contents
Contents Environmental Note. IMPORTANT SAFETY INFORMATION. 3 - 4 Know Your Extractor. 5 - 6 Specifications. Operating your extractor. Control panel. Care and Cleaning. 7 - 8 General cleaning. The grease filter. The carbon filter. Changing a light bulb. Installation. 9 - 13 Before beginning installation. -
Page 3: Important Safety Information
• Important Safety Information Your safety is of the utmost importance; please make sure that you read this instruction booklet before attempting to install or use the appliance. IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person. •... - Page 4 • Important Safety Information • The manufacturer refuses to accept any responsibility for damages arising from a failure to observe the safety advice contained in this instruction booklet. • Keep young children from using, playing with or tampering with the extractor.
-
Page 5: Know Your Extractor
Ducted-out or recirculation modes. • Metal grease filter. Carbon filter HJA2906 (optional for recirculation installation only) • • Ducting kits APL2805/2806 (optional) Specifications: HJA2339 • Max. Extraction capacity: 250 m³/hr • Electrical Supply: 220-240V, 50Hz • Max. Appliance Input Power: 180W •... -
Page 6: Operating Your Extractor
• Operating Your Extractor Control Panel: Slider 1 : Operates the light 0 is the off position. 1 is the on position. Slider 2 : Controls the motor speed. 0 is the off position. 1 is the lowest fan speed. 2 is the medium fan speed 3 is the highest fan speed. -
Page 7: Care And Cleaning
• Care and Cleaning IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR EXTRACTOR OFF AT THE MAINS SWITCH AND ALLOWED TIME FOR THE LAMPS TO COOL. • Clean the external parts of your extractor with mild liquid detergent and a damp cloth. -
Page 8: Changing A Light Bulb
• Care and Cleaning Changing light bulb IMPORTANT: Before attempting to change a light bulb, you must ensure that you have disconnected the extractor from your mains supply. The lamps can become very hot during use, therefore you must take care and give the lamp suffient time to cool down •... -
Page 9: Installation
• Installation We recommend that at least two people install this extractor. YOUR EXTRACTOR SHOULD ONLY BE CONNECTED TO YOUR MAINS SUPPLY AFTER COMPLETION OF THE INSTALLATION PROCESS Before beginning the installation double pole switched fused spur outlet • Check that there is a available for the extractor that will be accessible once the extractor is installed. -
Page 10: Ducted Out Or Recirculation
• Installation Ducted out or Recirculating ? In ducted-out mode, the stale air will be taken out of the room via external ducting. In recirculation mode, stale air is taken via the grease filter, and passed through a charcoal filter to remove odours. Ducted-out Recirculating (no charcoal filter required) -
Page 11: Mounting The Extractor
• Installation Mounting the Extractor • Cut a rectangular aperture in the canopy unit 475mm wide X 285mm a minimum of 50mm from the rear wall and from the front of the canopy. • If the extractor is to be ducted out, ensure that it is possible to connect the ducting hose. -
Page 12: Completing The Installation
• Installation Completing the installation Do I need a charcoal filter? All cooker hoods have a grease filter but if you are using your cooker hood in recirculation mode, then a charcoal filter must be fitted in addition to the grease filter. -
Page 13: Electrical Connection
• Electrical Connections IMPORTANT: ENSURE THAT THE ELECTRICITY SUPPLY IS SWITCHED OFF BEFORE CONNECTING. As the colours of the wires in the mains This appliance must be connected by a competent person, using lead for the appliance may not wiring via a double pole switched correspond with the coloured markings fused spur outlet, with a contact identifying the terminals in your spur... -
Page 14: Something Wrong With Your Extractor
• Something Wrong with your Extractor ? IMPORTANT: If your cooker hood appears not to be operating correctly, please refer to the checklist below before contacting the Customer Service number. My extractor will not start. • Check that the extractor hood is connected to the electricity supply •... -
Page 16: Your Guarantee
- Howdens Proof of Purchase document - Your full contact details. Call the Lamona Service Line on 0845 00 60 006 This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health.
