Summary of Contents for Fintek iCOOL

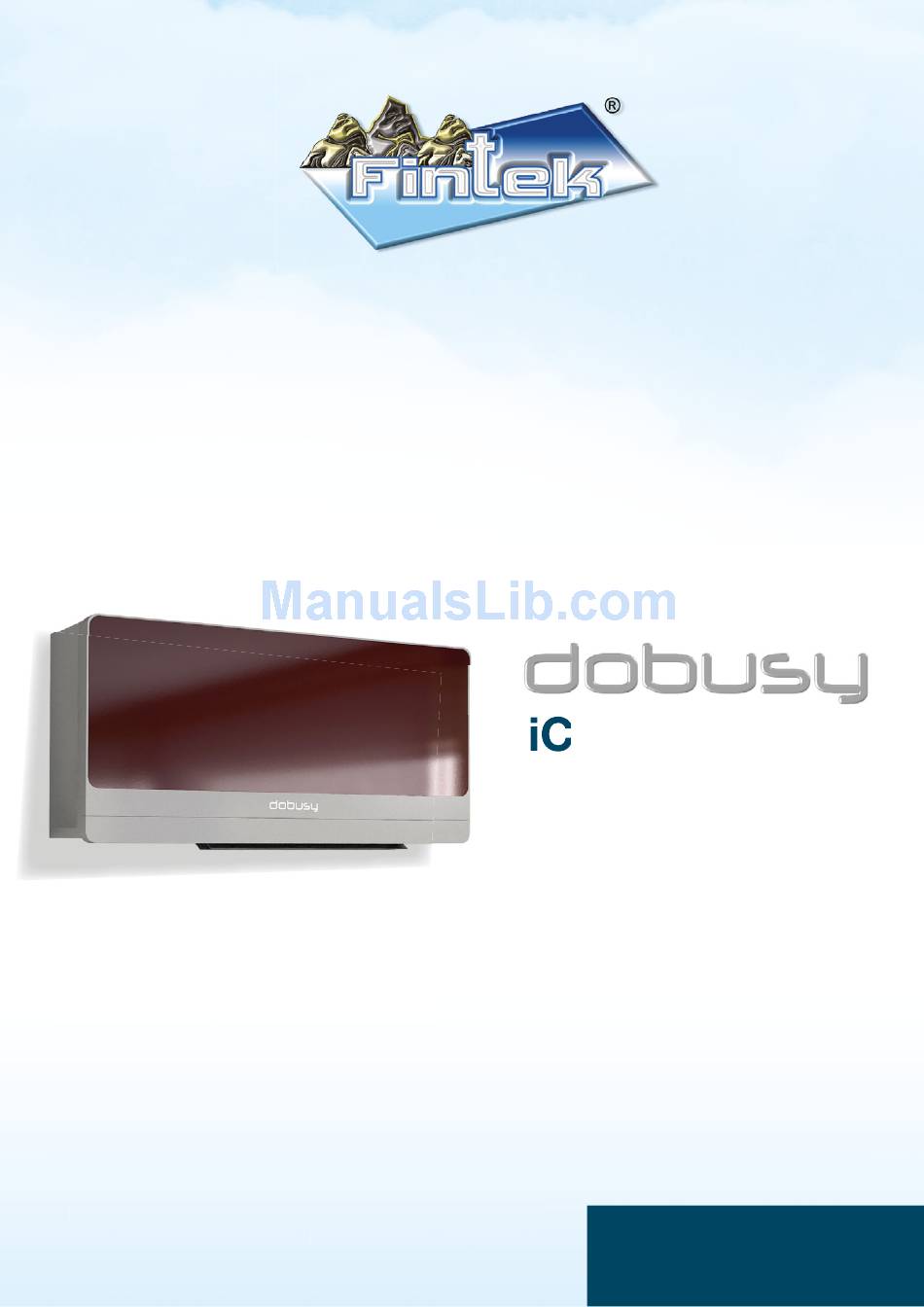

- Page 1 Soluzioni per il benessere ed il risparmio TECHNICAL MANUAL ICOOL/IWARM iCOOL/iWARM Pompe di Calore Monoblocco ad Alta Efficienza Before installing the air conditioner carefully read the instructions www.finteksrl.com...
- Page 2 Index Index Main Features Certification ( C ) Overall Dimensions Explosion view and parts list Rated technical data Energy label l b l Installation Electric wiring Description of software operation 10. Precaution 11. Ordinary maintenance 12. Problem and solution...
-
Page 3: Main Features
1.Main features Double ducted machine is different with the normal split type air conditioner, and there is no outdoor unit, and installed with high wall. It is a special solution for commercial and residential buildings. Th t i d The twin-duct system eliminates security breaches and offers a great look to the building, as only li i it b d ff... -
Page 4: Overall Dimensions
3. Overall Dimensions Note : The external pipes are same, Ø197mm . -
Page 5: Explosion View And Parts List
4. Explosion view and parts list 4.1 iCOOL Explosion view... - Page 6 Parts list No. in Explosive code BOM English Name View R133140024 Compressor and accessory R122050360 Condenser assy. R122060135 Capillary assy. R122010207 Evaporator assy. R122120281 4-way valve assy. R131040178 Indoor motor R131040175 Anticlockwise condenser fan R131040176 Clockwise condenser fan R131060068...
- Page 7 R128060422 Upper EPP R128060424 Condenser cover EPP R128060427 Front cover EPP R128060426 Evaporator cover EPP R128060425 Water cover EPP R140140071 Bottom metal assy. R127020799 Compressor installation plate R127041004 Right metal plate R127030288 Electrical box R127020823 Support plate R127080061 Wall bracket assy. R127020801 R127020801 Back metal plate...
- Page 8 4.2 iWARM Explosion view...
-
Page 9: Step Motor (Panel)
iWARM Parts list No. in Explosive code BOM English Name View R128030549 PMMA R128030543 Front panel R128030554 Short pin R128030552 Coupler R128030548 Air filter R128030553 Long pin R131020097 LED display R128030545 Front frame R128030547 Step motor box R128030550 Linkage R128030551 Connecting rod R131060068 Step motor (panel) -
Page 10: Main Pcb
R122060135 Capillary assy. R133140024 Compressor and accessory R122120281 4-way valve assy. R122050360 R122050360 Condenser assy Condenser assy. R127030288 Electrical box R131160054 Compressor capacitor R127030254 Compressor capitor holder R131030006 3-way terminal block R131130003 Condenser fan capacitor R131010509 Main PCB R132040139 Power plug R127041117 Left metal palte R128060424... -
Page 11: Rated Technical Data
5.Rated technical data Descriptions Unit ICOOL 2.3 IWARM 2.3 Cooling capacity W (Btu/h) 2360 (8050) 2360 (8050) Heating capacity W (Btu/h) Rated voltage Frequency Electrical heater W (Btu/h) ------- 1600 (5500) Absorbed power in cooling Absorbed current in cooling Absorbed power in heating... -
Page 13: Installation
7. Installation... - Page 16 7.1 Positioning the air conditioner (P3) To maintain the best performance from your air conditioner, prevent breakdowns or hazards, you must position it correctly.Please follow the guidelines and instruction below in full, as failure to do so could cause potential installation problems. The air conditioner must be installed on an exterior wall that has access to the out side with a minimum of 2 meters clearance to the outside.(See image P3) The air conditioner must be fitted leaving room all around as illustrated in the paper template.
-
Page 17: Fitting The Gratings
Drainage hole (P8) This air conditioner has a system to drain the condensate moisture automatically. Please read carefully the following instruction. Drill a hole through the wall measuring 30mm in diameter in the position shown in the paper template, Drill a hole through the wall measuring 30mm in diameter in the position shown in the paper template, marked the center before. -
Page 18: Power Cord Connection
7.6 Fixing plastic sheet and insulation After fixing the outside grating,insert the plastic sheet with insulation supplied with the conditioner into the holes.The sheets must be 107mm shorter than the thickness of the wall.(See P18) Use an ordinary cutter for the operation. (See P19) Roll the sheet and insert it into the hole, paying attention to the splicing line, which must always face up wards.(See P20) 7.7 Connecting drainage pipe... - Page 19 8. ICOOL/IWARM Electric wiring...
- Page 20 9. Description of software operation 9.1 Main technical index PCB h PCB should meet the following requirements: t th f ll • Measured from the receiver receiving distance of remote control should 8m receiving angle 60 cone angle • Discrepancy of temperature control •...
- Page 21 9.3.2 Cooling mode 1. Setting temperature range 18 -30 2. Compressor working conditions a. Compressor works when RT ST+1 b Compressor stops when RT ST-1 b. Compressor stops when RT ST 1 c. -1 RT-ST +1 compressor maintains the original state (RT: room temperature, ST: setting temperature) 3.
- Page 22 9.3.4 Heating mode 1. Setting temperature range 18 -30 2. Compressor working conditions a Compressor starts condition: RT ST+1 a. Compressor starts condition: RT ST+1 . b. Compressor stops condition: RT ST+3 c. +1 ST-RT +3 compressor keeps original working state (RT: room temperature, ST: setting temperature) 3.
- Page 23 9. Defrost function in heating mode: Defrost conditions: 1). unit goes into heating pump or works after defrost cycle for 30 minutes 2). compressor continuously runs over 5 minutes, 3). when OPT -5 for one minute if meet the above 3 conditions together, unit would begin defrost cycle. Defrost procedure is as following: 1).Stop the aux electrical heater first if unit has this function.
- Page 24 3. At the beginning of sleeping running in Heating mode, if room temperature setting temperature, the compressor, outdoor fan motor, indoor fan motor and four-way valve will work. If room temperature setting temperature, it will directly go into sleeping working fluctuation (see below graphic). Fan speed will be fixed with low speed.
-
Page 25: Protection Function
9.3.8 Timer function 1. Pressing Timer button on remote control to set Timer Off during unit is working, and set Timer On during unit is close. 2. Temperature rising key in the remote control is hour setting, each pressing will increase one hour, and every cycle is 24 hours. - Page 26 9.5.4 Sensor damage protection 1. Room temperature sensor damage: If room temperature is lower than -40 or higher than 120 room temperature sensor is supposed to be damaged unit goes into protection mode as below and unit will display E1 be damaged, unit goes into protection mode as below, and unit will display E1.
- Page 27 9.5.8 OPT failure protection For the OPT sensor, it is used for the defrost function in heating mode. If OPT sensor works well, the unit will check the data from OPT sensor, then decide if go to defrost function. Please refer to 11.3.4.
- Page 28 R25=5.0K 1% 23.7103...
-
Page 29: Ordinary Maintenance
11. Ordinary maintenance 11.1 Filter cleaning: The filters should be regularly cleaned to keep the air conditioner running efficiently. Clean the filters every two weeks. How to proceed: • Disconnection the air conditioner from the electrical supply. •Open the front panel by hand. •Take the filter holder (See P31),take out the filter grating from the slot. - Page 30 12. Problem and solution Problem possible causes • The air conditioner does not work • The air conditioner does not refrigerate the room diti t th • Strange smell in the room. Water drips from the air conditioner. • The remote control doest not work. •...
- Page 31 Soluzioni per il benessere ed il risparmio Fintek srl via B. Strozzi, 6 - 47895 Domagnano Repubblica di San Marino Tel./Fax +378 (0549) 901950 Cell +39 393 1808890 fintek@finteksrl.com Visit our website and discover all our products www.finteksrl.com...
