ZW19™
user manual



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZW19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation ZW19

Summary of Contents for Elation ZW19

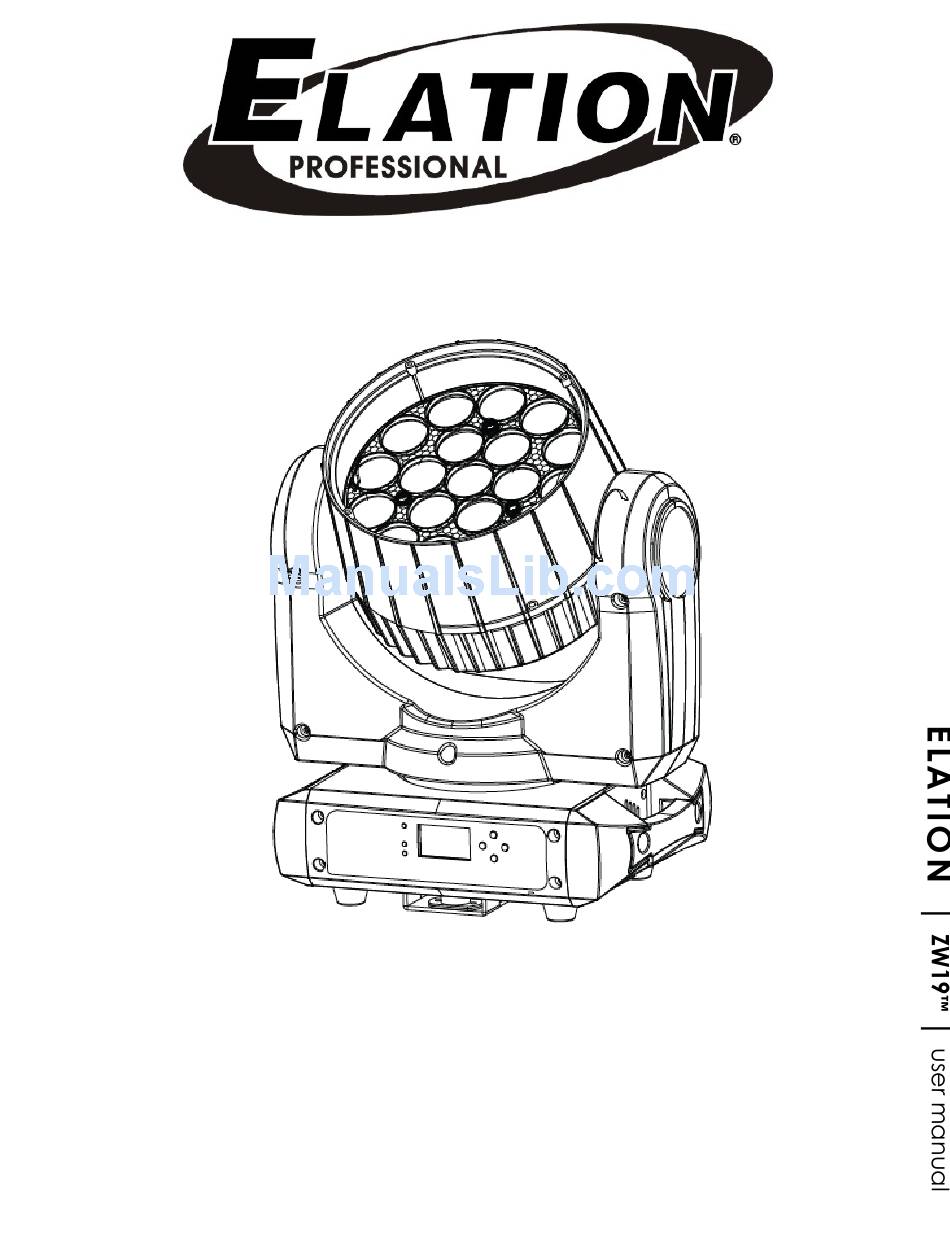

  • Page 1 ZW19™ user manual    ...
  • Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.

  • Page 3: Table Of Contents

    . e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions General Guidelines Control and Connections Fixture Installation Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories ZW19™ User Manual ver 1...

  • Page 4: General Information

    Please do not return this unit to your dealer without first contacting customer support at the number listed below. Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) Omega Brackets (1) powerCON Cable Manual & Warranty Card ZW19™ User Manual ver 1...
  • Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...

  • Page 6: Warranty

    No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.

  • Page 7: Safety Instructions

    Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating. ZW19™ User Manual ver 1...

  • Page 8: General Guidelines

    Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. ZW19™ User Manual ver 1...

  • Page 9: Control And Connections

    C O N T R O L A N D C O N N E C T I O N S LED Indicators LCD Menu Function Display MENU, UP, DOWN, ENTER Buttons 5pin and 3pin DMX IN 5pin and 3pin DMX OUT powerCON IN/OUT Fuse ZW19™ User Manual ver 1...

  • Page 10: Fixture Installation

    Never stand directly below the device when mounting, removing or servicing. POWER LINKING Max number of units that can be power linked is 5 units @120V and 11 units @230V. ZW19™ User Manual ver 1...
  • Page 11 S A F E T Y C A B L E Always use a Safety Cable whenever installing this fixture in a suspended environment to ensure the fixture will not drop if the clamp fails. ZW19™ User Manual ver 1...
  • Page 12 The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle. ZW19™ User Manual ver 1...

  • Page 13: Fixture Menu

    ENTER button to activate that field and use the UP and DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MENU button. ZW19™ User Manual ver 1...
  • Page 14 000 - 255 Special Function 000 - 255 Auto Test Run self-test program Fixture use time Display total use time of fixture Firmware Version Display software version of fixture PRO defaults No, Yes Reset No, Yes ZW19™ User Manual ver 1...
  • Page 15 . e l a t i o n l i g h t i n g . c o m Dimmer Modes Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre). ZW19™ User Manual ver 1...
  • Page 16 (Pan, Tilt, Zoom). Once the desired new home position has been set, press the ENTER button to save the new position. To exit the OFFSET MENU press and hold the MENU button for at least 1 second. ZW19™ User Manual ver 1...

  • Page 17: Dmx Channel Functions And Values

    Green (0-100%) GREEN FINE 0-255 Green FINE Adjustment BLUE 0-255 Blue (0-100%) BLUE FINE 0-255 Blue FINE Adjustment WHITE 0-255 White (0-100%) WHITE FINE 0-255 White FINE Adjustment VARIABLE WHITE NO FUNCTION 1-255 1=2700K, 255=6,000K ZW19™ User Manual ver 1...
  • Page 18 COLOR MACRO 29 117-120 COLOR MACRO 30 121-124 COLOR MACRO 31 125-128 COLOR MACRO 32 129-132 COLOR MACRO 33 133-136 COLOR MACRO 34 137-140 COLOR MACRO 35 141-144 COLOR MACRO 36 145-148 COLOR MACRO 37 ZW19™ User Manual ver 1...
  • Page 19 COLOR MACRO 56 225-228 COLOR MACRO 57 229-232 COLOR MACRO 58 233-236 COLOR MACRO 59 237-240 COLOR MACRO 60 241-244 COLOR MACRO 61 245-248 COLOR MACRO 62 249-252 COLOR MACRO 63 253-255 COLOR MACRO 64 ZW19™ User Manual ver 1...
  • Page 20 PAN / TILT Movement Speed FAST - SLOW RESET / DIMMING MODES 0-69 NO FUNCTION 70-79 Blackout While Pan/Tilt Movement 80-89 NO FUNCTION 90-99 Blackout When RGBW Values Change 100-199 NO FUNCTION 200-209 Reset ALL 210-255 NO FUNCTION ZW19™ User Manual ver 1...

  • Page 21: Cleaning And Maintenance

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 22: Technical Specifications

    -4°F (-20°C) to 104°F (40°C) APPROVALS / RATINGS CE | RoHs | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ZW19™ User Manual ver 1...

  • Page 23: Photometric Data

    . e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ZW19™ User Manual ver 1...

  • Page 24: Dimensional Drawings

    . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ZW19™ User Manual ver 1...

  • Page 25: Optional Accessories

    EWDMXSYSTEM Wireless DMX System (1 Transmitter, 1 Receiver) PLC3 3’ (1m) PowerCON PRO Link Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available ZW19™ User Manual ver 1...
